Pilot-RC Power Pack for 67in Aerobatic Aircraft PIL406

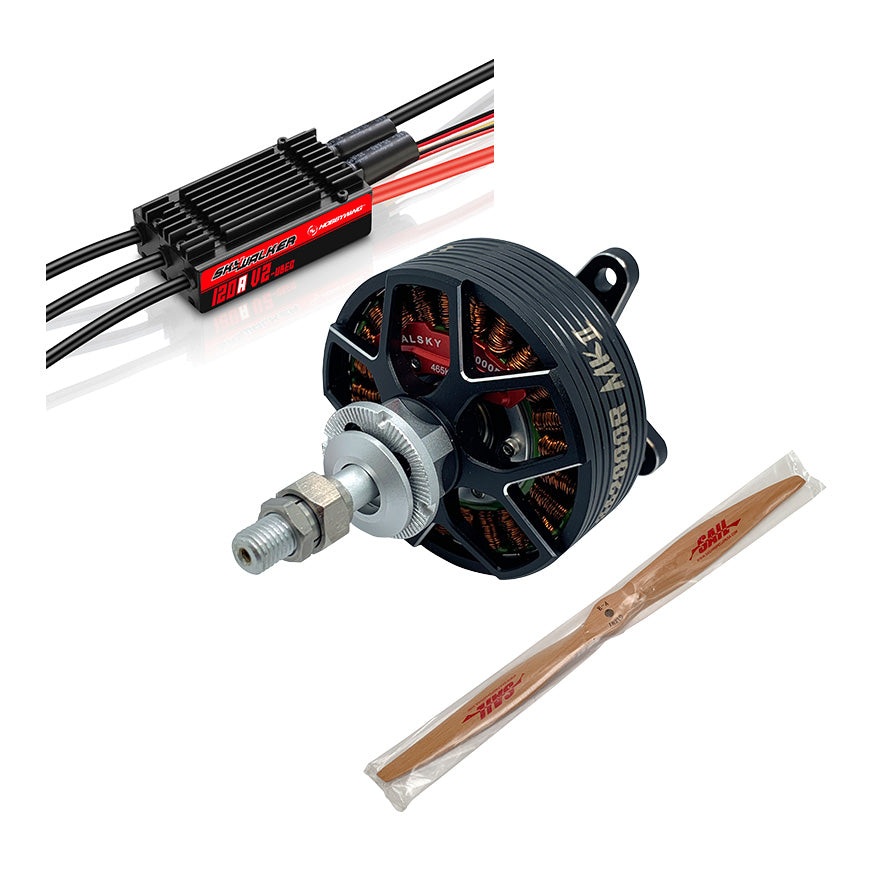

Includes
Motor: Pilot CC-20/400KV
ESC: Hobbywing Platinum V4 120a
Prop: 18 x 10e Wood
Motor Technical Data:
CC20/400KV
RPM/V 400 RPM/V
Weight w/o Accessories 350g
Outer Diameter 69mm
Length with Mounts 62mm
Length (Overall) 94mm
Diameter of Shaft 8mm (Internal) 8mm (Output)
Mounting Holes Pitch 55mm to 58mm
Slots Poles 24 28
Idle Current (Io) @10V 2.1A
Resistance (Ri) 17.8m Ohm
Nominal Voltage (V) 22.2V 6S Li-Po
Peak Power (15s) 2200W
Bursts Current (15s) 100A
Cruising Power (8 mins) 1200W
Recommended ESC Ultra 100 amps
Propeller 17x8 (5.9Kg 60A) 18x8 (6.5Kg 80A)
Weight of Sports Airplane Up to 6.0kg
Weight of 3D Airplane Up to 3.7kg
Applications For 90E to 110E Class
3D Airplane (Up to 70in Wingspan)
ESC Details:
This Platinum 120A V4 ESC featuring a continuous current of 120A and peak current of up to 150A guarantees users high and stable output all the time during each flight.
The built-in switch mode BEC with a voltage adjustable among 6.0V/7.4V/8.4V a continuous current of over 10A and peak current of 25A can supply enough power for your servos to operate efficiently.
Besides the heatsink on Platinum 100A V3 an extra cooling fan is included in product box to maximize cooling performance (Users can mount it onto ESC heatsink if necessary).
Multiple protection features include abnormal input voltage ESC thermal throttle signal loss (or Fail Safe) and low voltage cutoff effectively prolongs the service life of the ESC.
