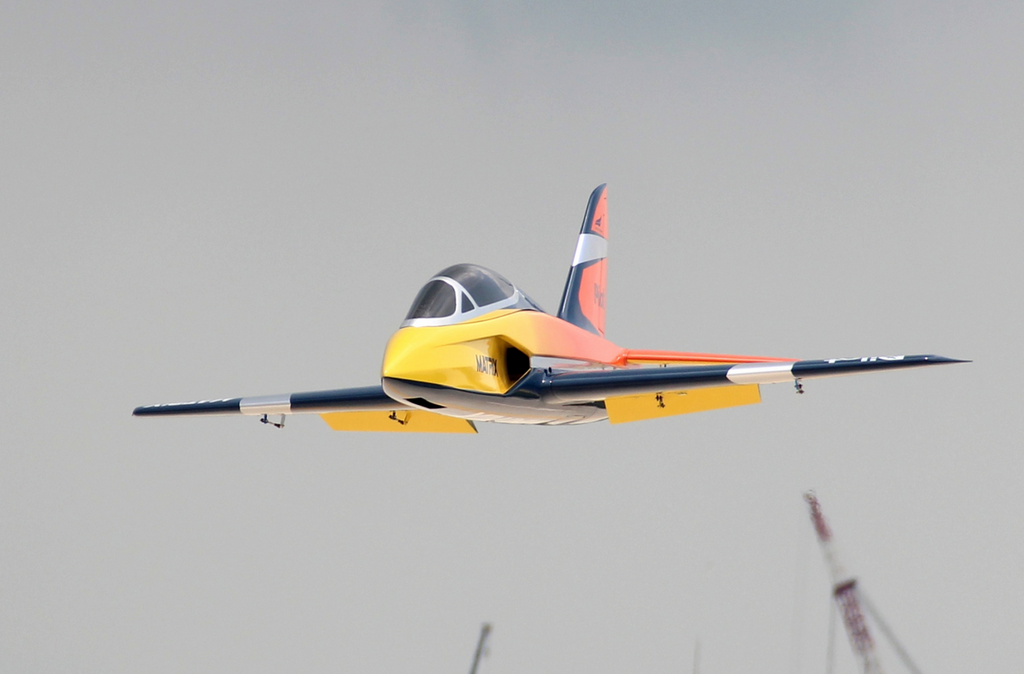

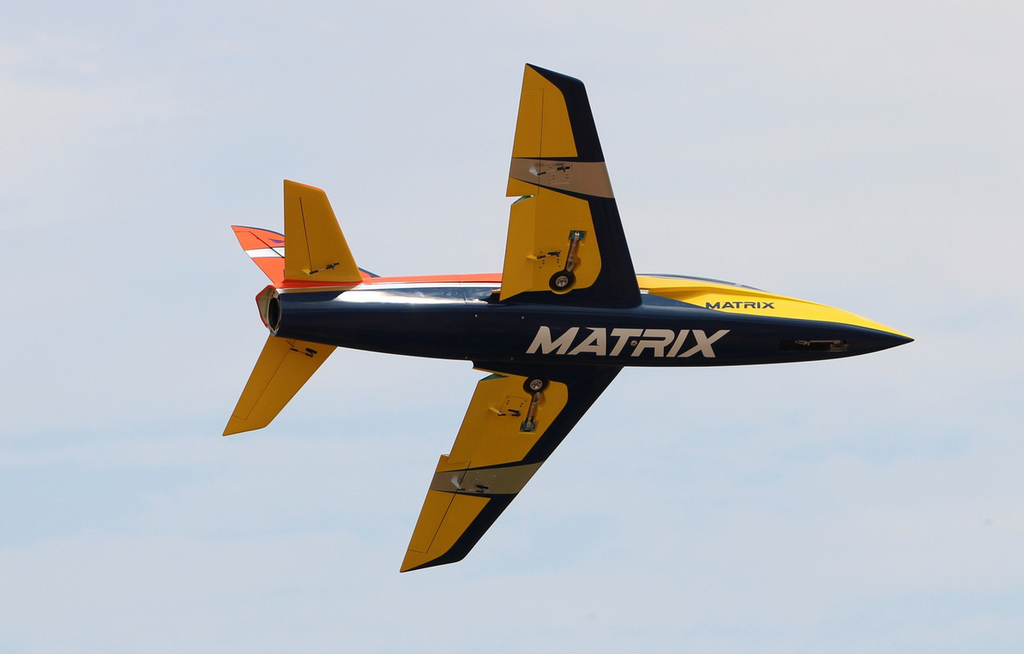

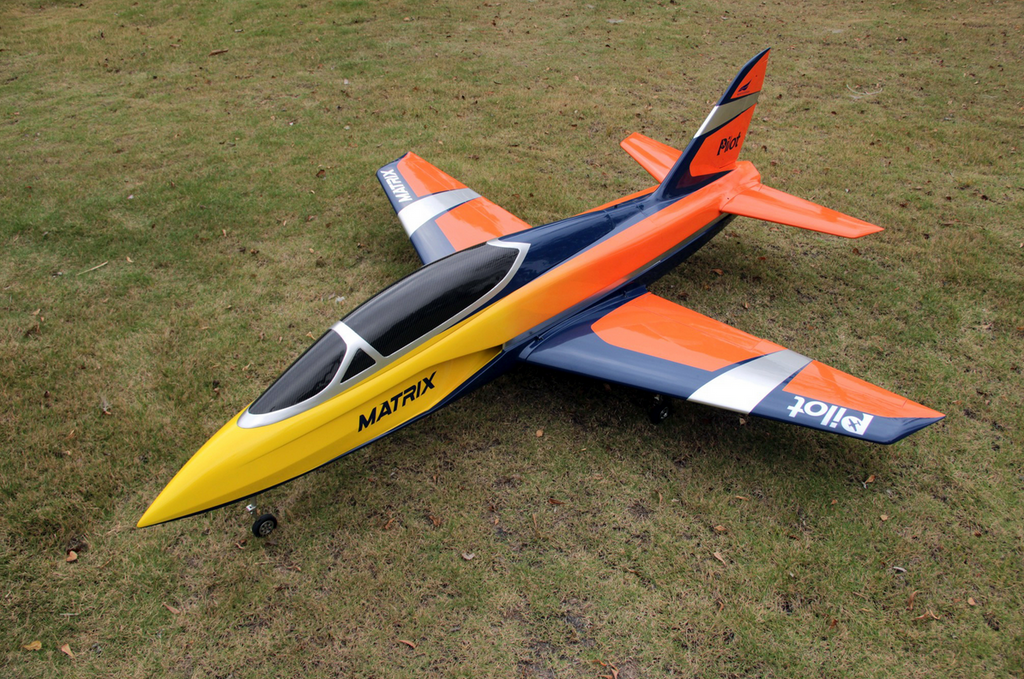

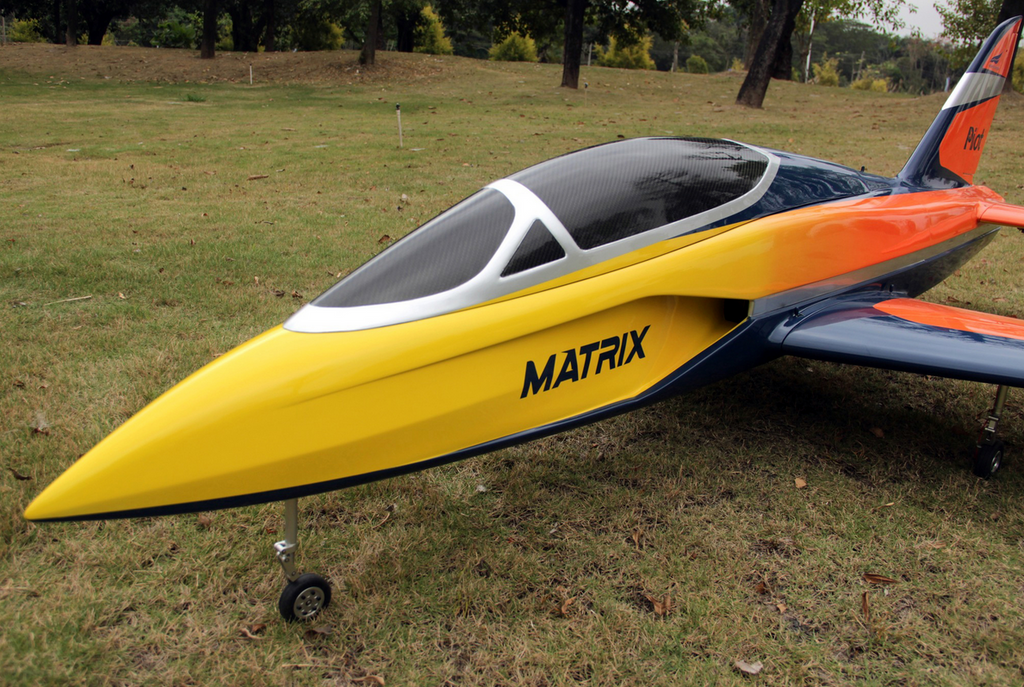

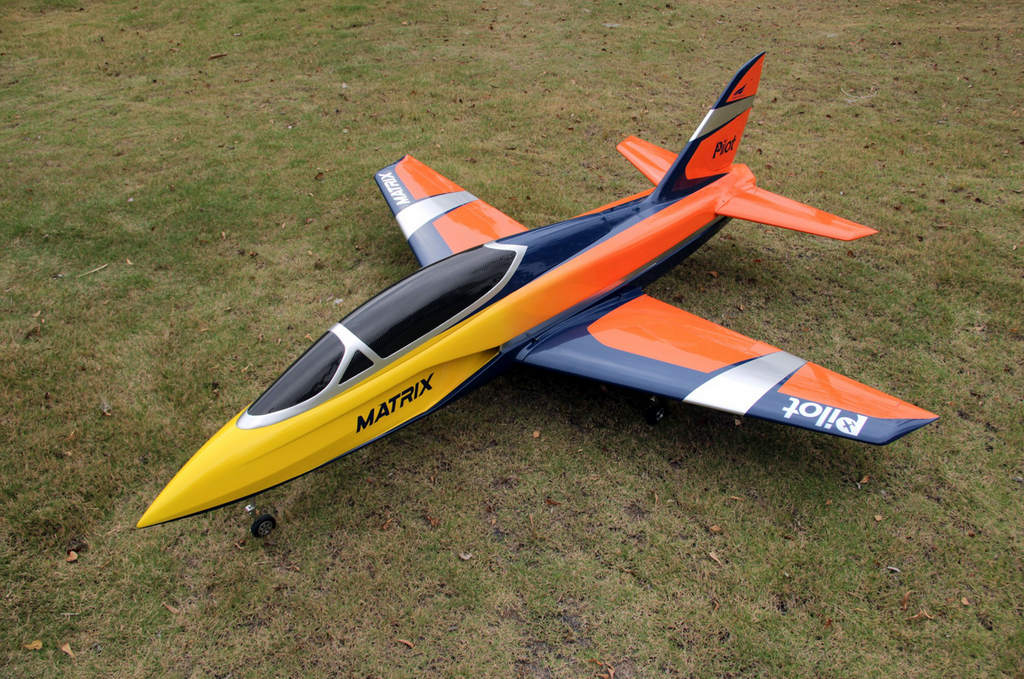

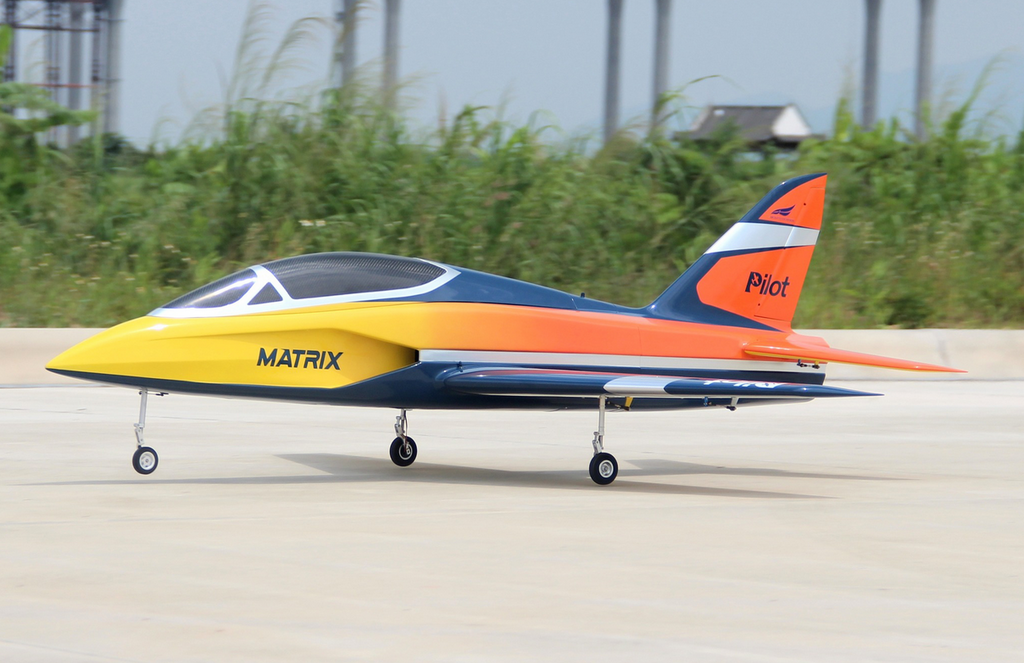

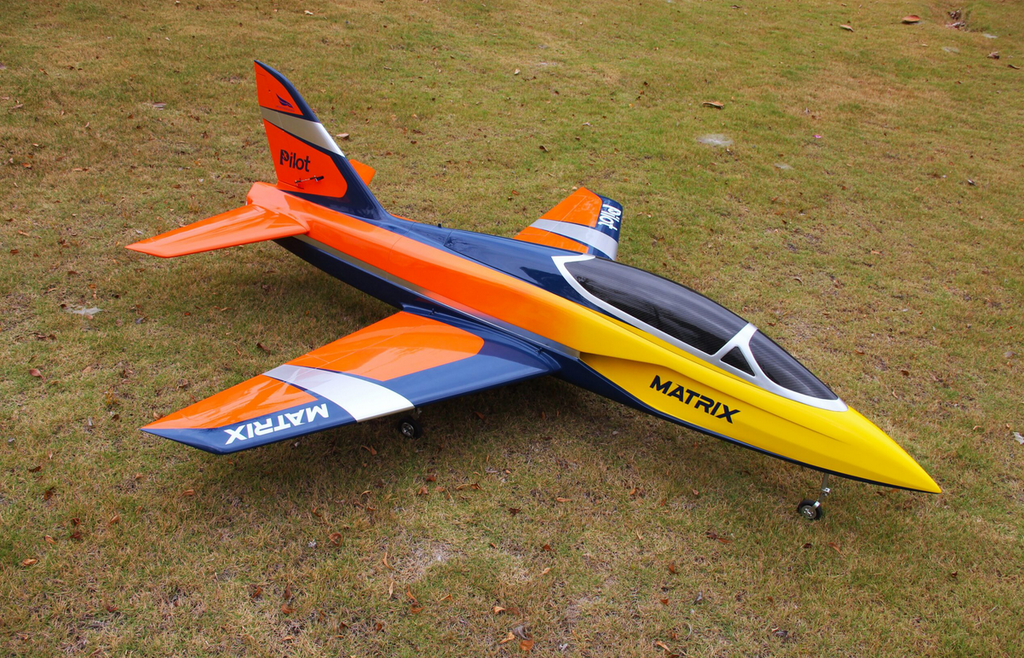

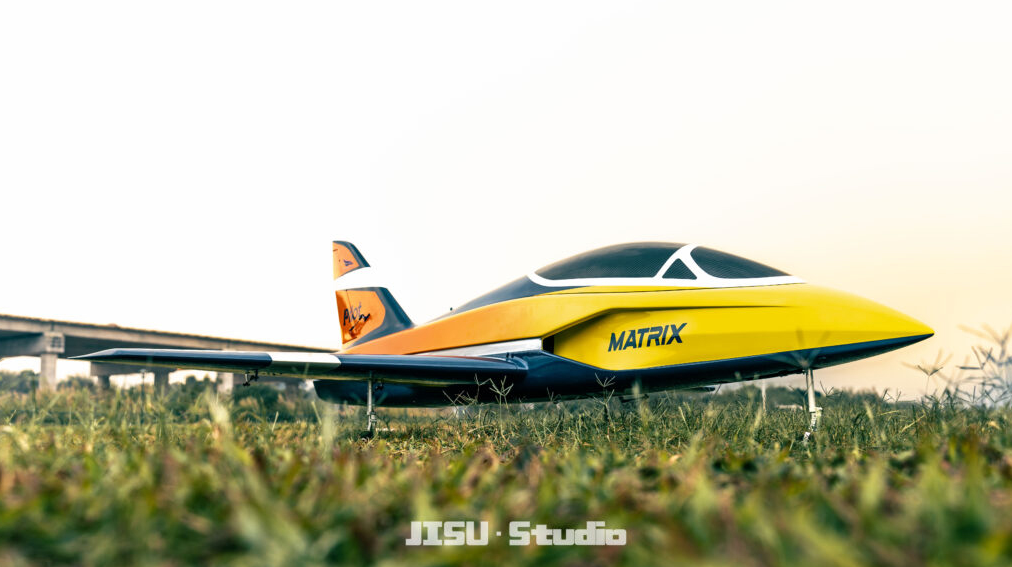

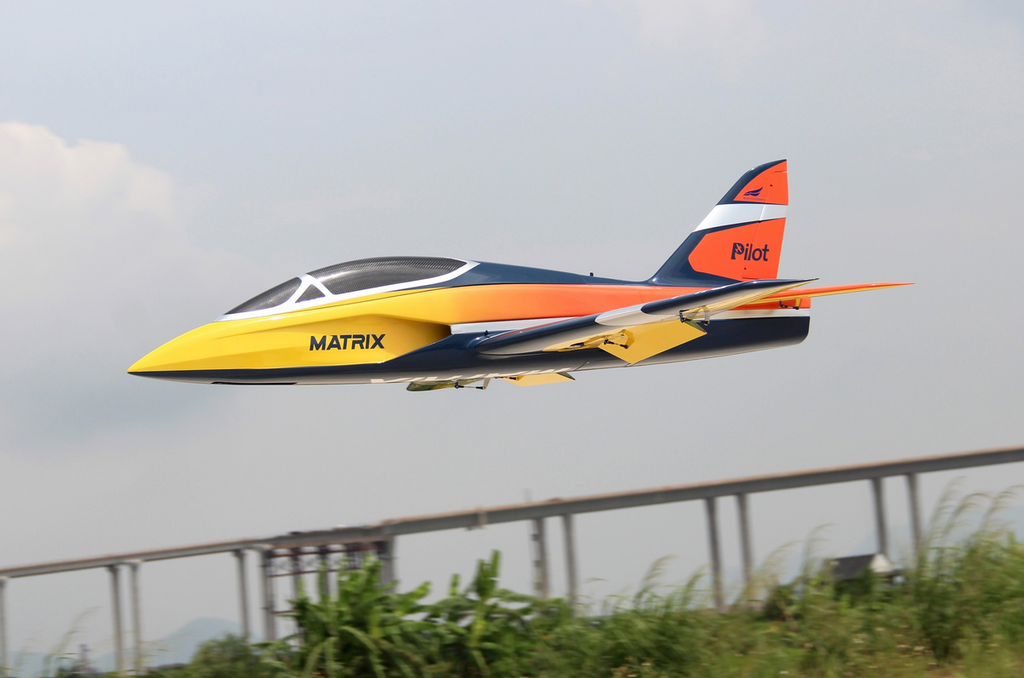

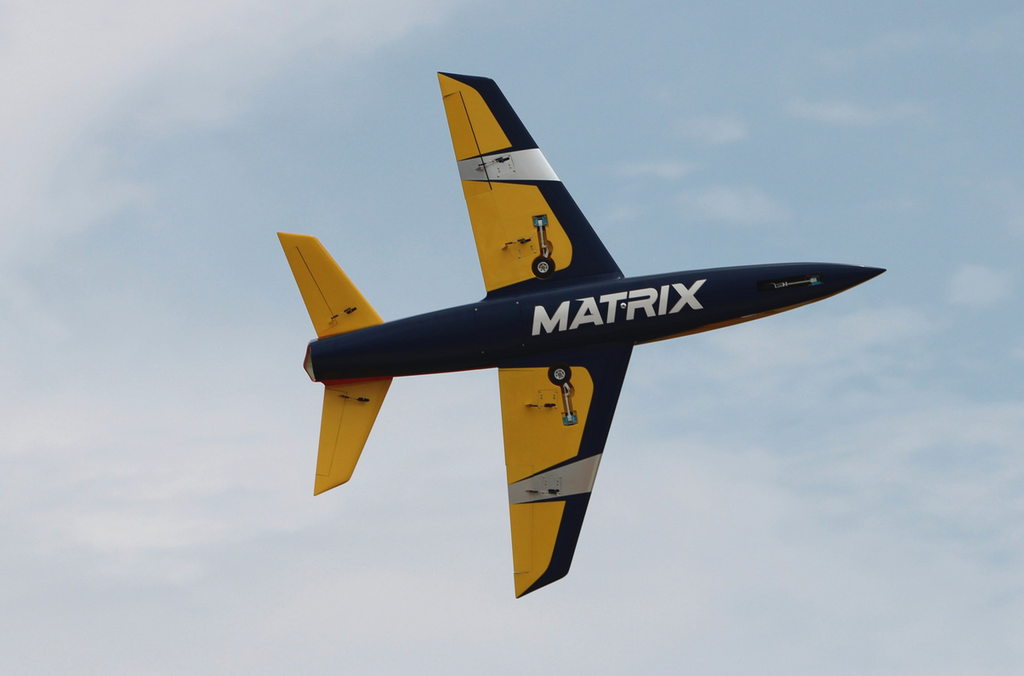

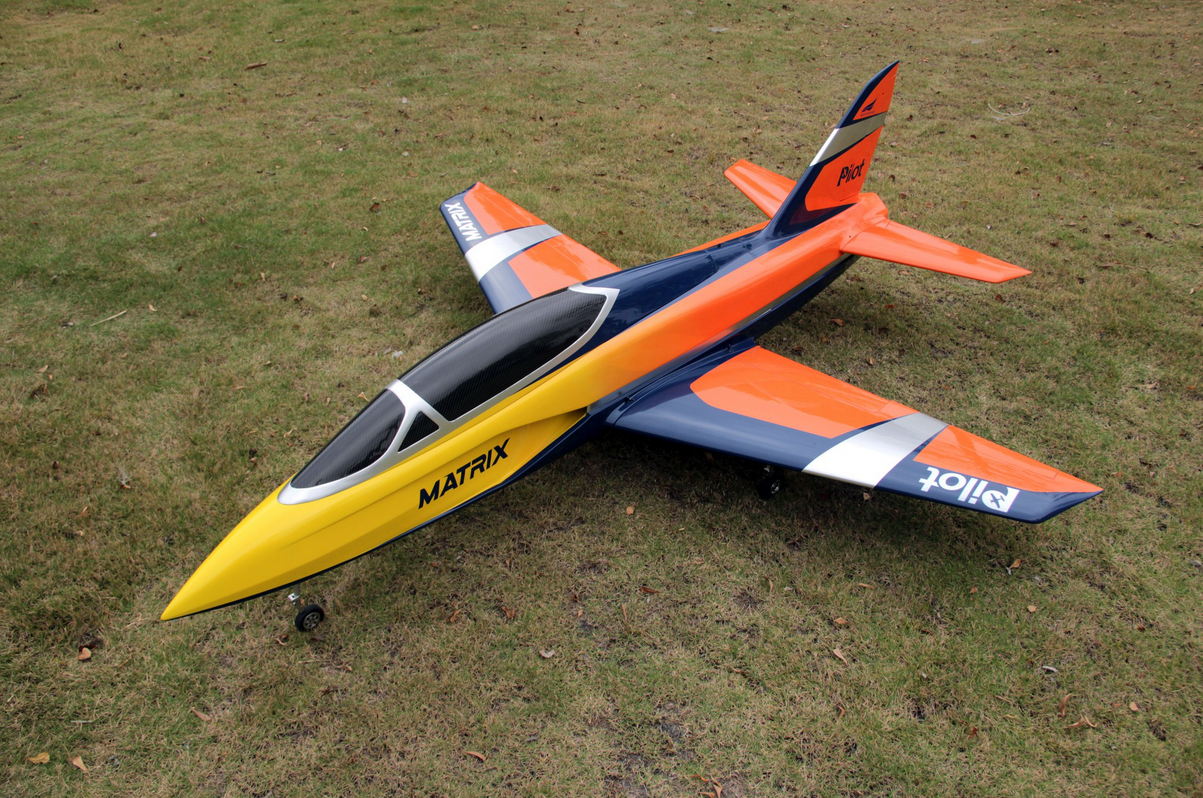

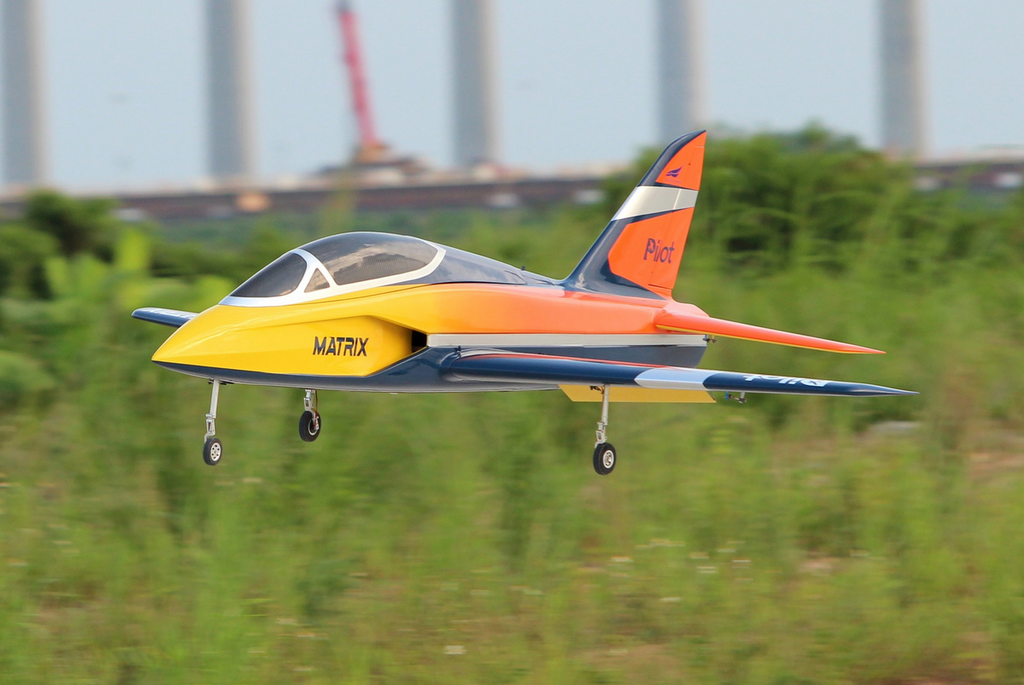

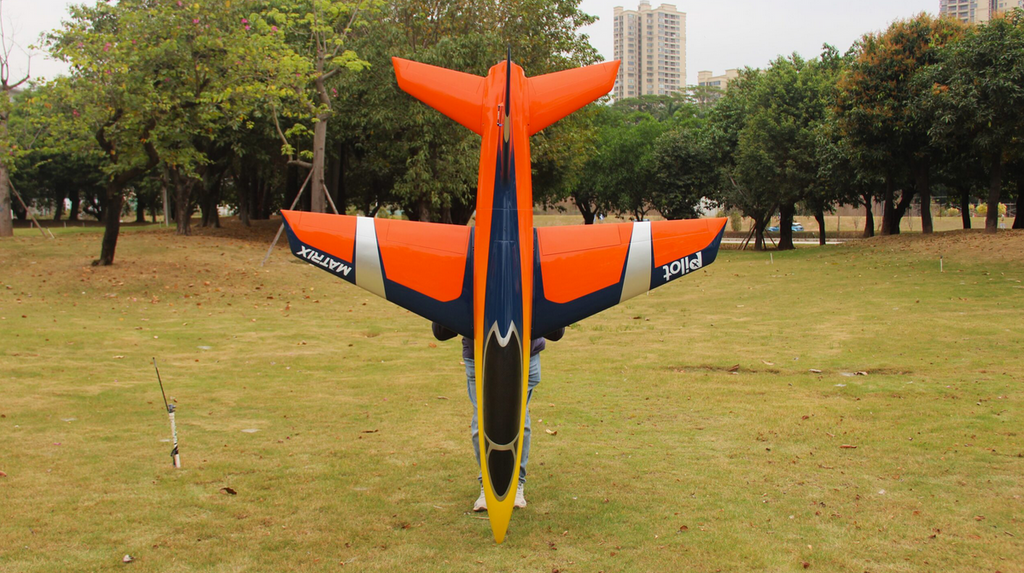

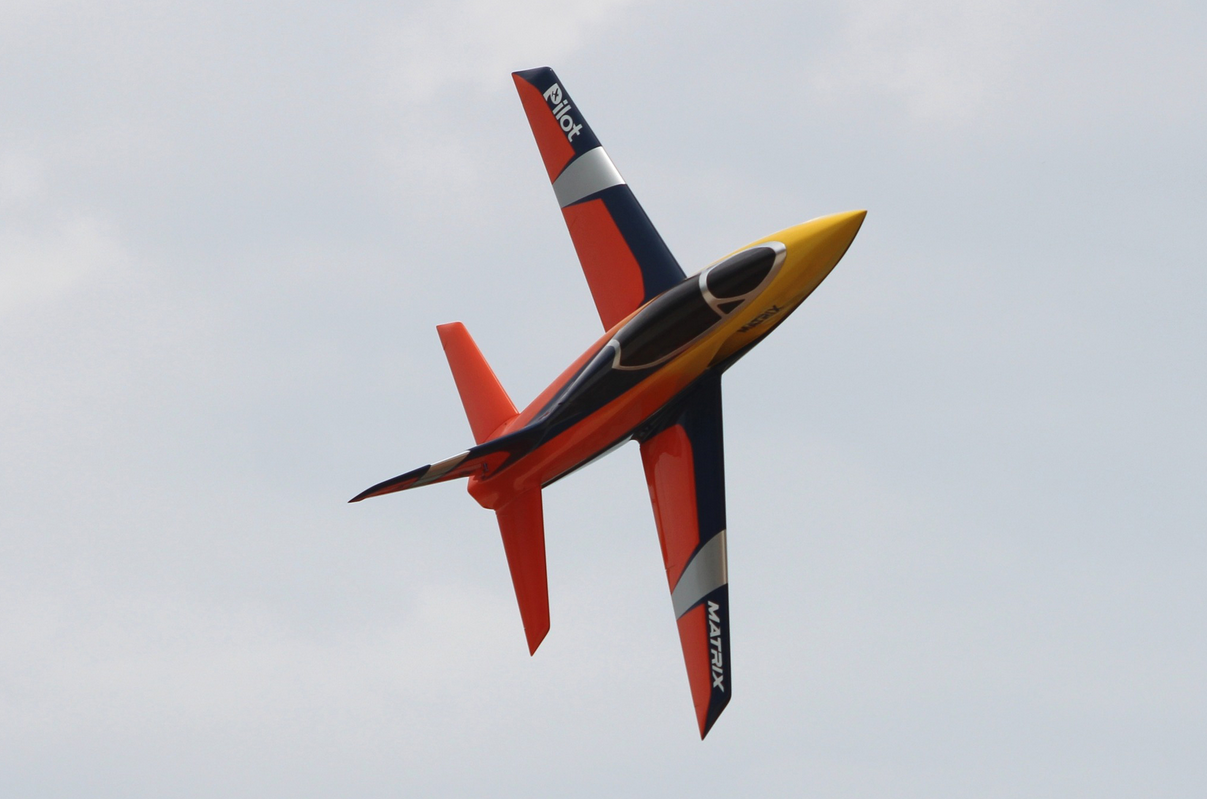

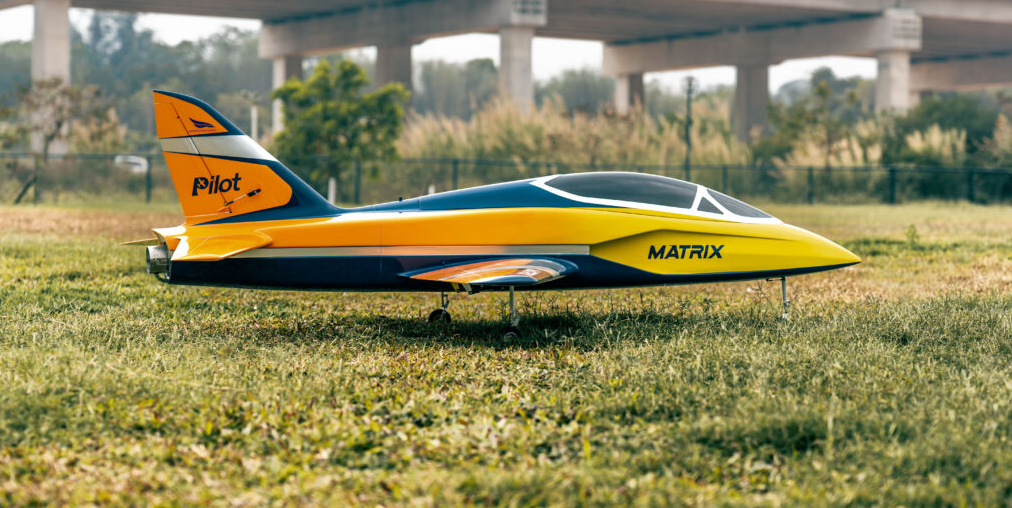

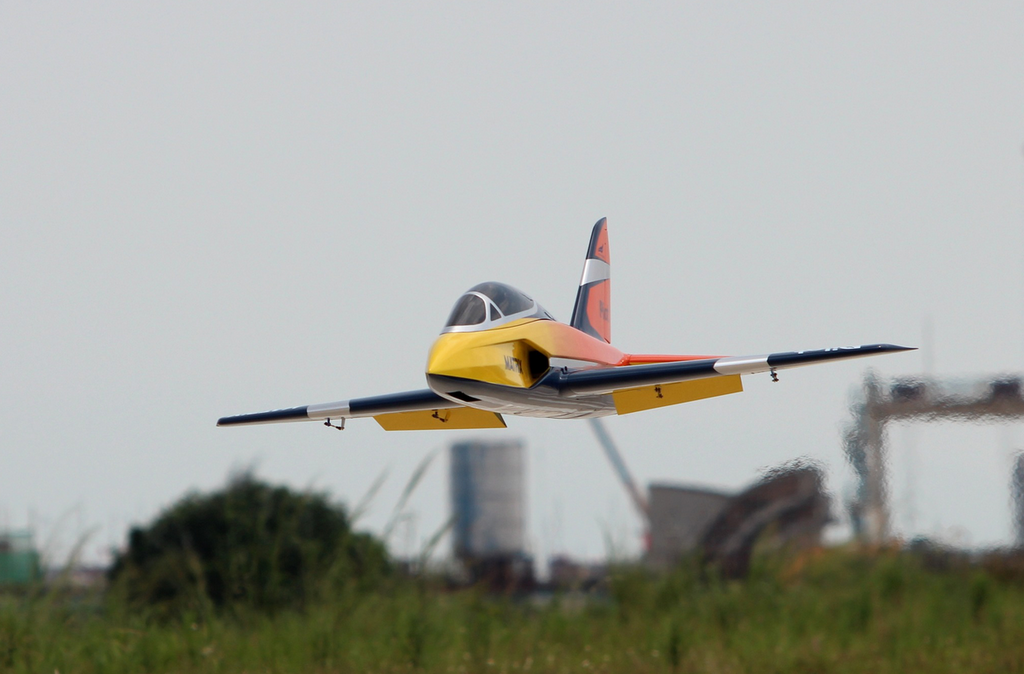

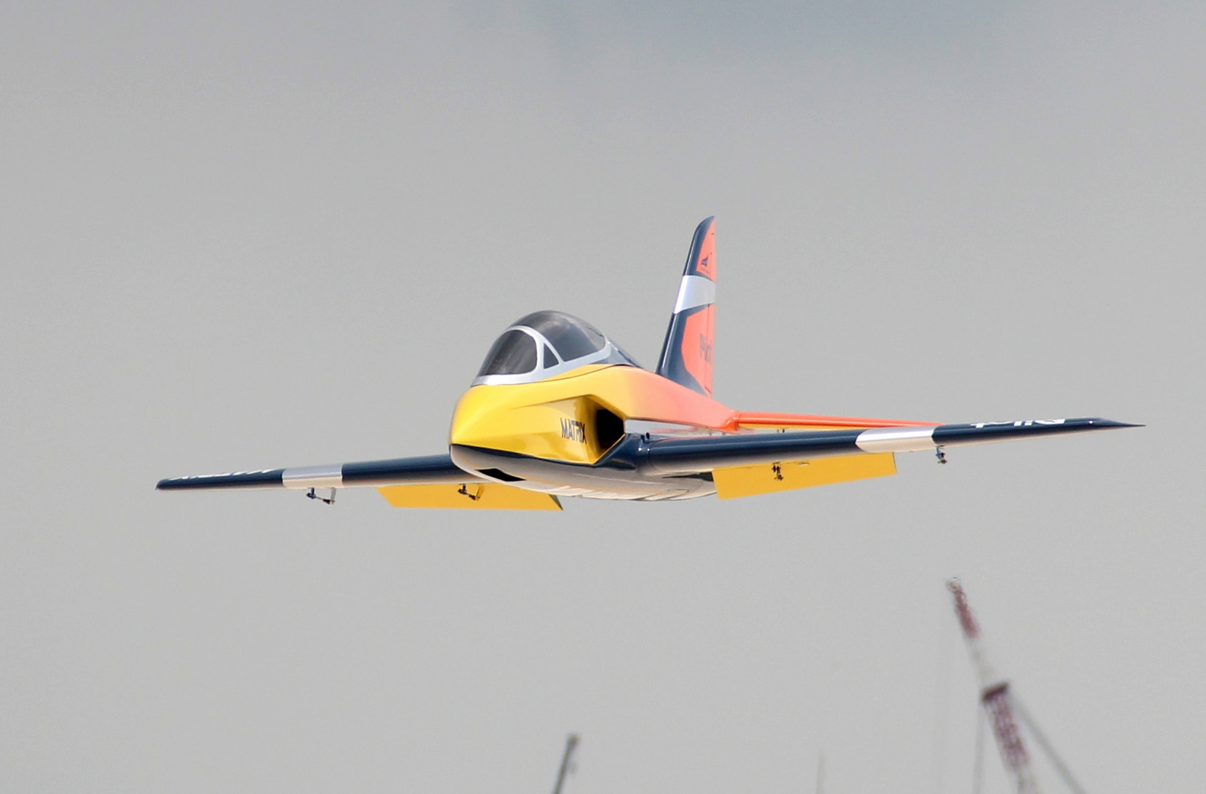

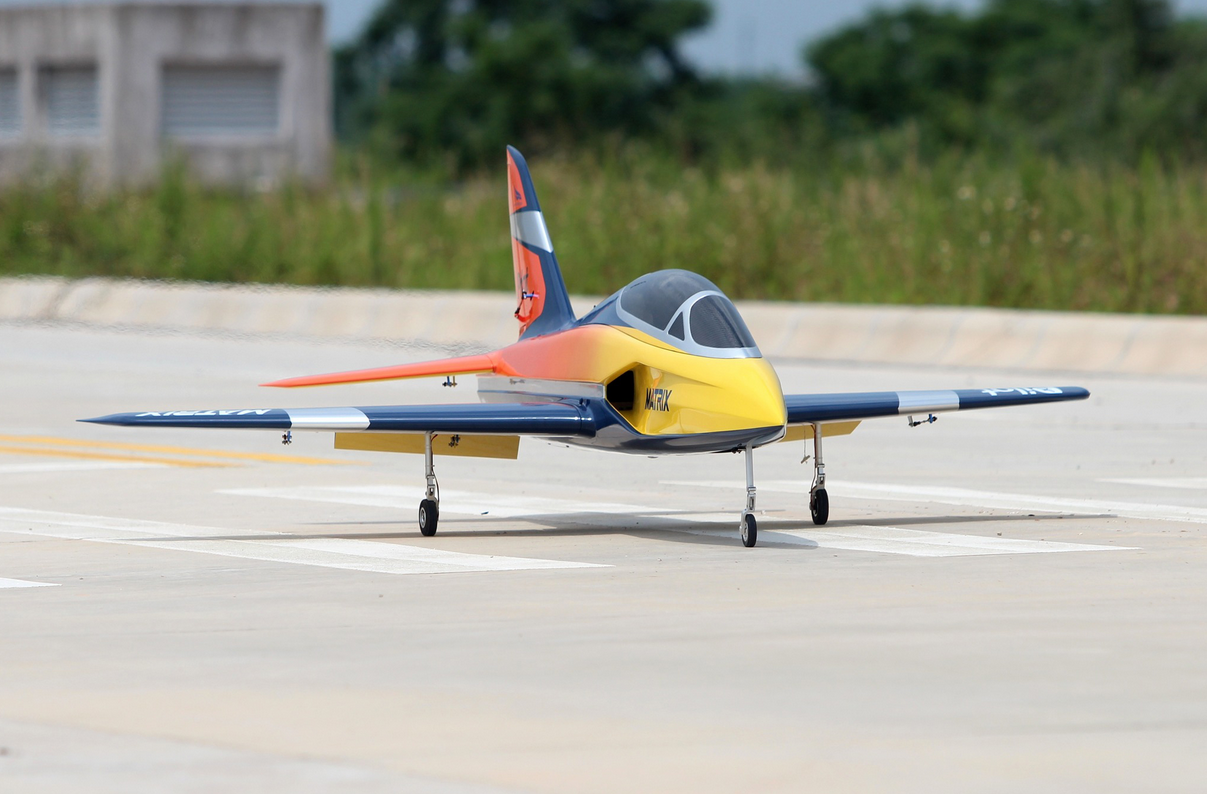

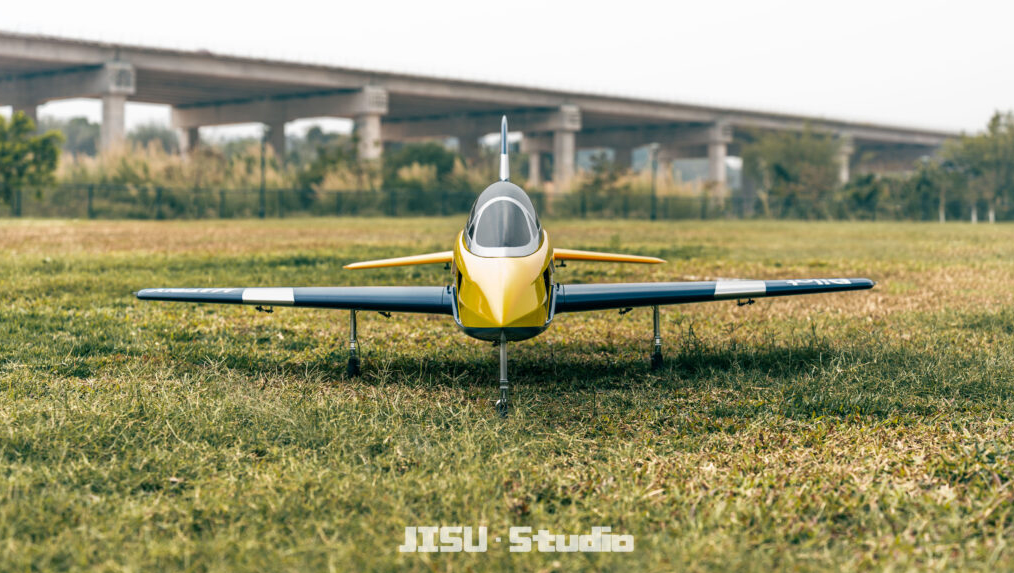

Pilot-RC Matrix Jet 2.2m w/Retracts & Vector Thrust Pipe (02) PIL736

Pilot-RC Matrix Jet 2.2m w/Retracts & Vector Thrust Pipe (02) PIL736

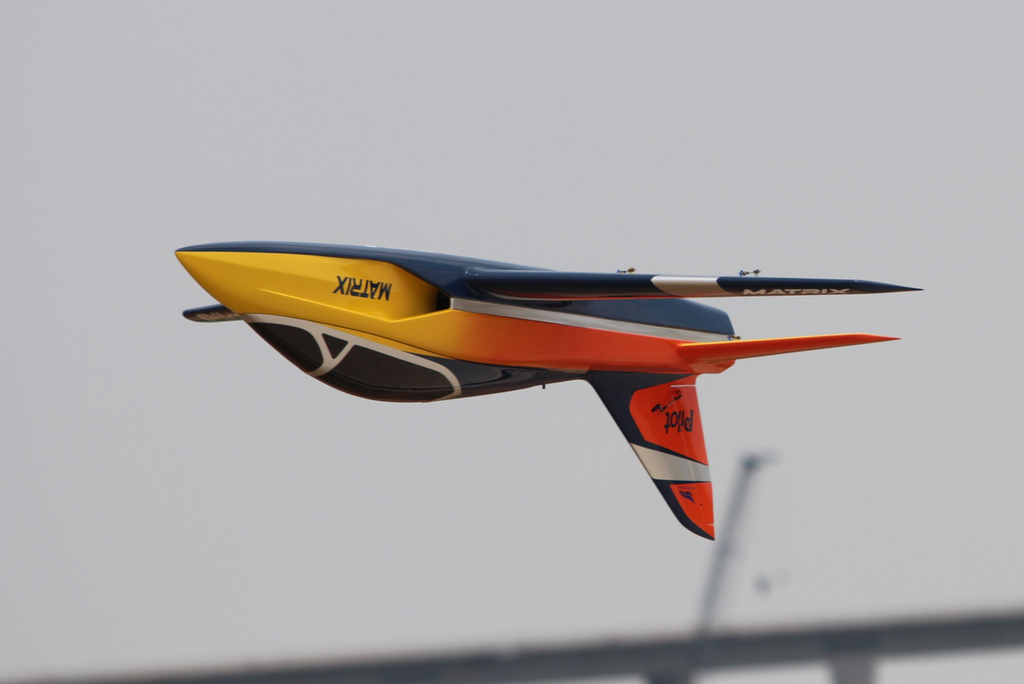

The Pilot-RC Matrix is an innovative approach to a new sport jet/ 3Djet. Great capabilities had to be combined between sport jet and unbeatable 3D performance. everything aerodynamic we tested and learned from Predator and develop together with one of the best pilot in the world for Matrix performance so we can say this is best ever sport jet with ultimate flying characteristics for precise aerobatics and 3D aerobatics at the same time.

Features:

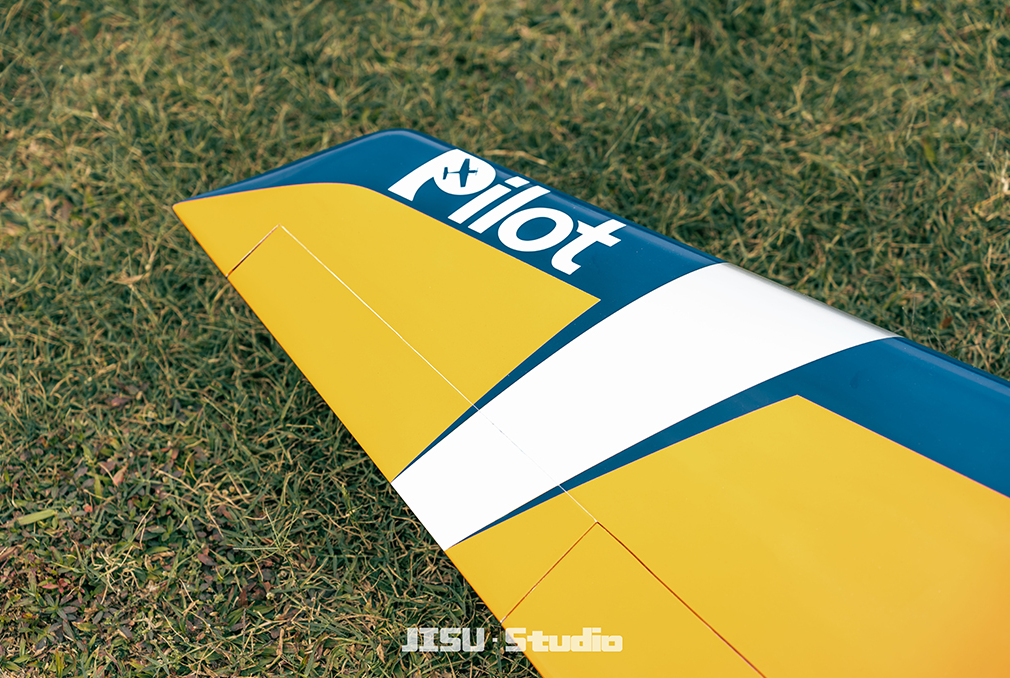

• Extremely lightweight full composite construction especially designed for outstanding sport flight with 3D performance

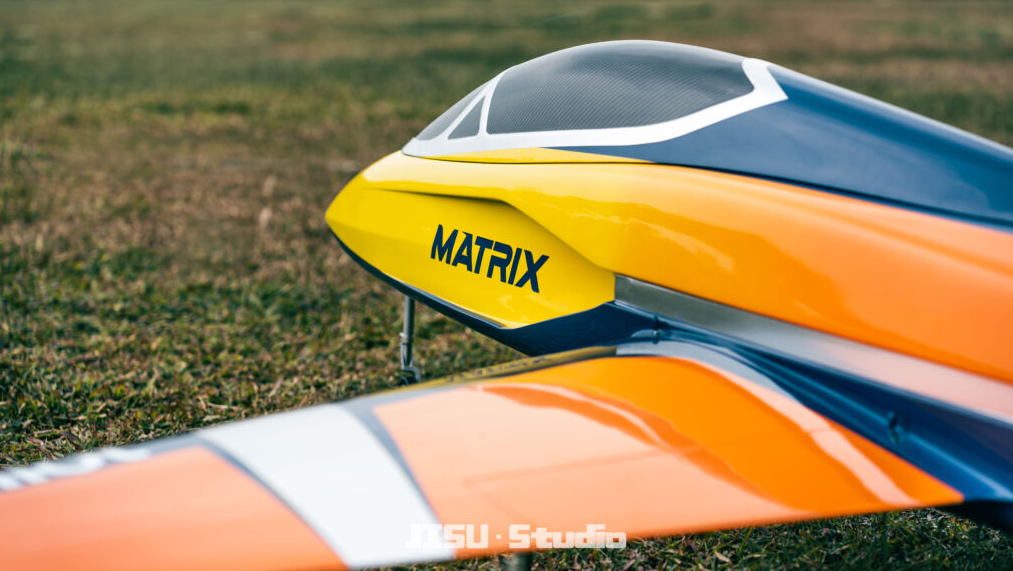

• Painted outside the mold so no seam lines

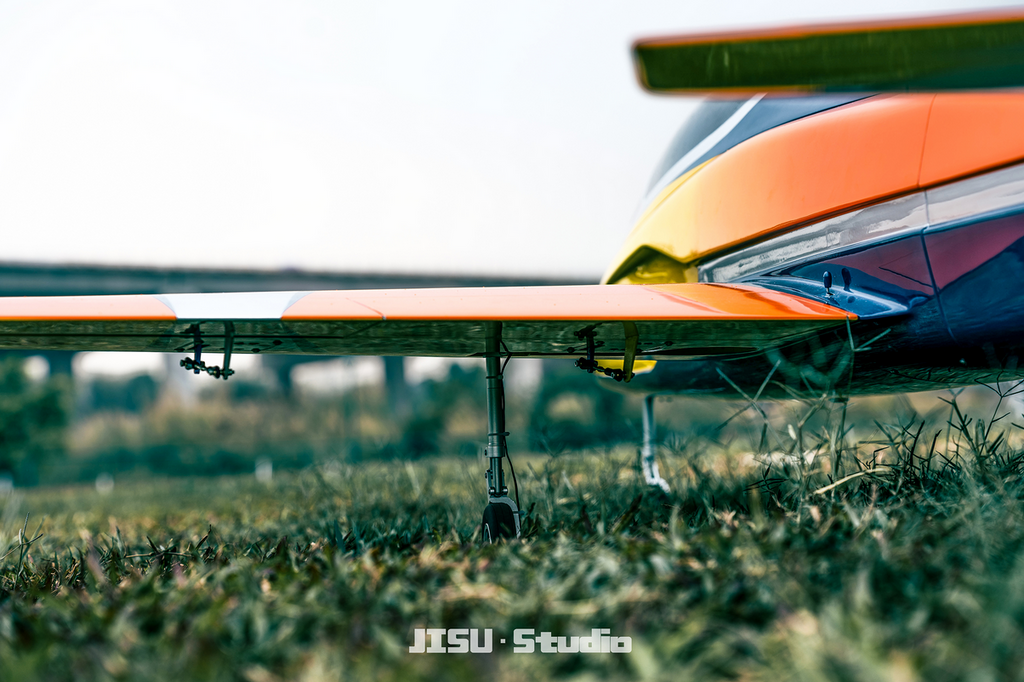

• Ultra light weight landing gear
• Specially designed easy access to turbine for speedy installation
• Field setup can be done in seconds, thanks to the quick releases on the wings without the need for any tools
• The single elevator clamp from the top, the clamp only a few turns to tighten/loosen the bolt then you can install/remove the stabiliser

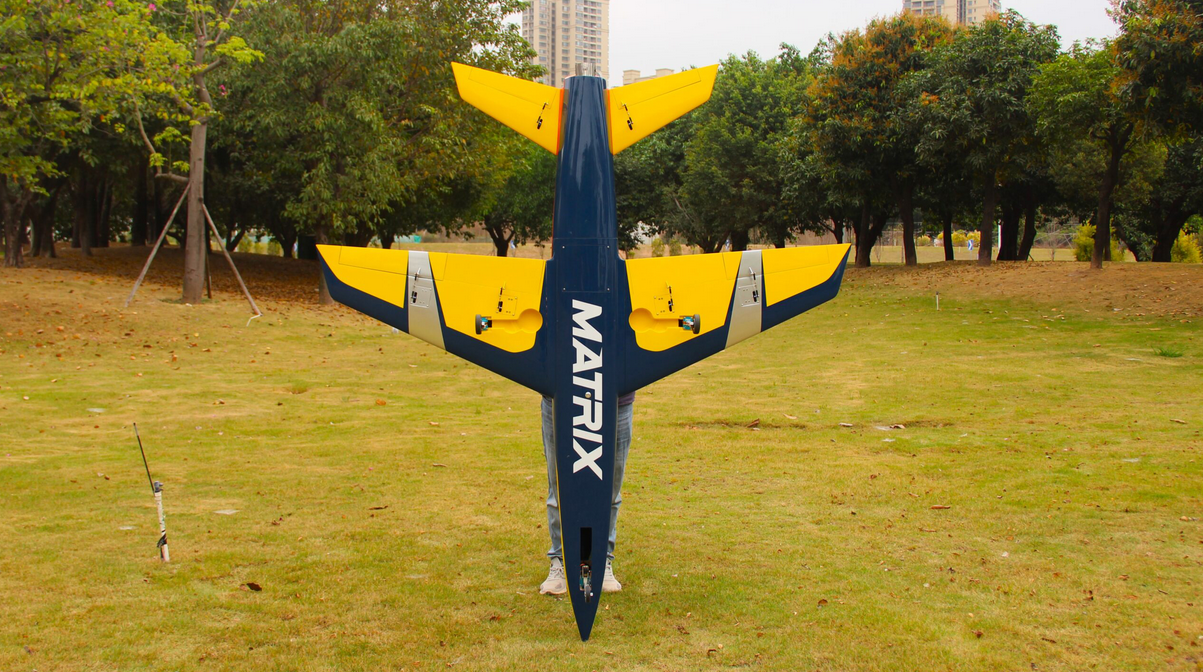

• Removable wing and elevator for easy transport
• The equipment installation board make the electronic items with very clear installation. Most of the wire can be hidened
• Pre-installed tube for the stab/rudder extension wire, easy to install

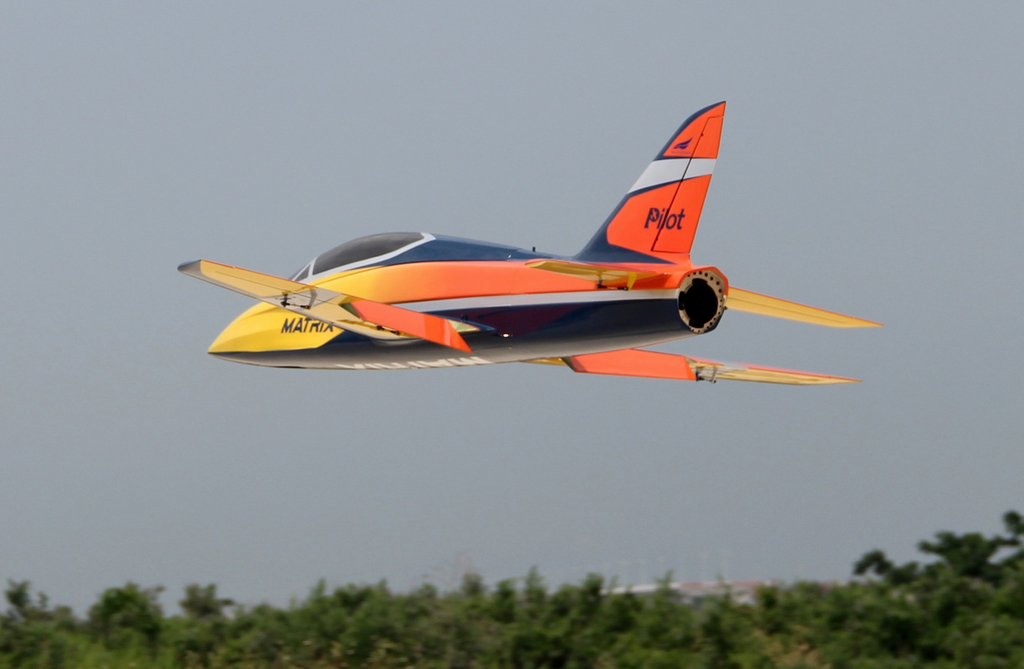

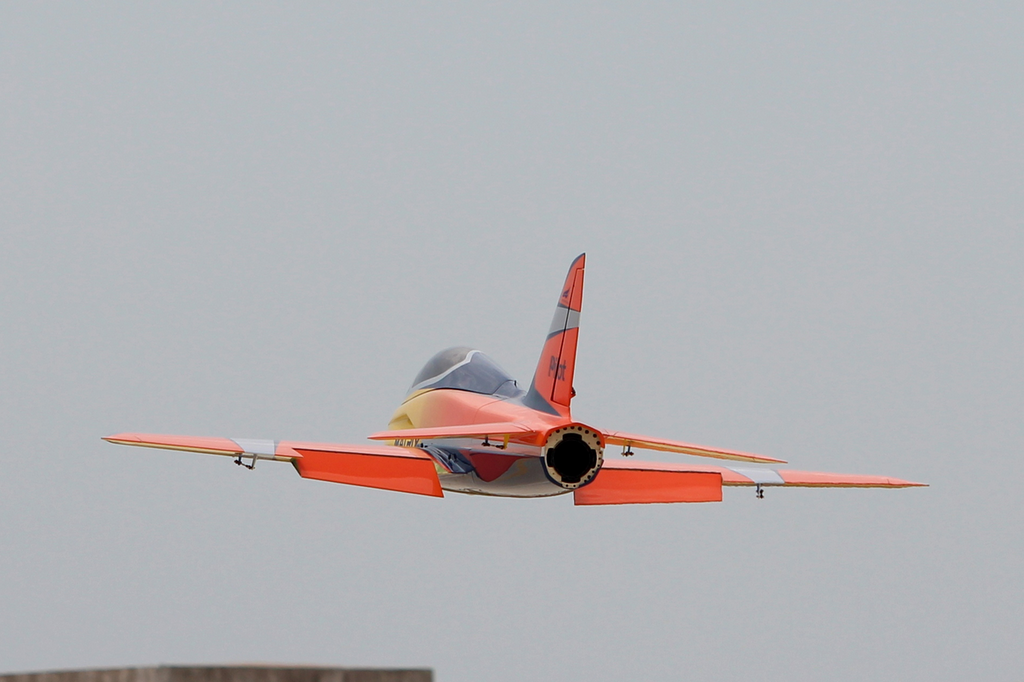

• Vector tail pipe for 3D flight

Included Hardware:

• Complete air frame (including carbon wing-tubes and preinstalled and painted fiberglass control horns)
• Servo extension leads
• Vector thrust pipe
• 3.800ml fuel tank (Optional upgrade to fuel bag)
• 250ml UAT tank
• Pre-prepared pushrods with ball links
• Servo connector brackets

Required/Recommended Hardware (Not Supplied):

Turbine Size:

• 160-180N for 3D Vector Flight - Avoid High Speed High G Flying

Servos Option 1 - (3D Vector Flight):

• 3 x MacGregor MGB8555HV 54.7Kg/0.12s High Voltage Brushless Servo for Flaps and Rudder (2 x Flaps, 1 x Rudder)
• 6 x MacGregor MGB5216HV 16.0kg/0.08s Brushless High Voltage Servo (2 x Aileron, 2 x Elevator, 1 x Vector Elevator, 1 x Vector Rudder)
• 1 x MacGregor MG2810HV 10.0Kg/0.07s High Voltage Servo (1 x Steering)
• 10 x Pilot-RC 1.2in Aluminium Arms - PIL556 (Included with Pilot-RC Servos)

Servos Option 2 - (3D Vector Flight):

• 3 x Pilot-RC PW-48AH 48kg.cm/0.10s High Torque Brushless Servo

• 6 x Pilot-RC PW-21AH 21.5kg.cm/0.079s High Torque Brushless Servo

• 1 x MacGregor MG2810HV 10.0Kg/0.07s High Voltage Servo (1 x Steering)
• 10 x Pilot-RC 1.2in Aluminium Arms - PIL556 (Included with Pilot-RC Servos)

Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories.

Additional Items (Not Supplied):

• Pilot-RC Wing Bag for 60cc/2.2M Predator/2.2M Matrix (Red/Black) - PIL069
• Pilot-RC Fuselage Bag for Predator 2.2m/Matrix/F-86F/F-86D (Red/Black) - PIL507

Build Manual:

Aileron: 18mm, Rudder: 50mm, Elevator: 26mm.

Flap: 25mm for take off and 95mm for landing.

The CG is 253mm back from the leading edge of the wing at the fuselage

Measured with empty main tank, full UAT, landing gear down.

Full Build Manual Coming Soon...
