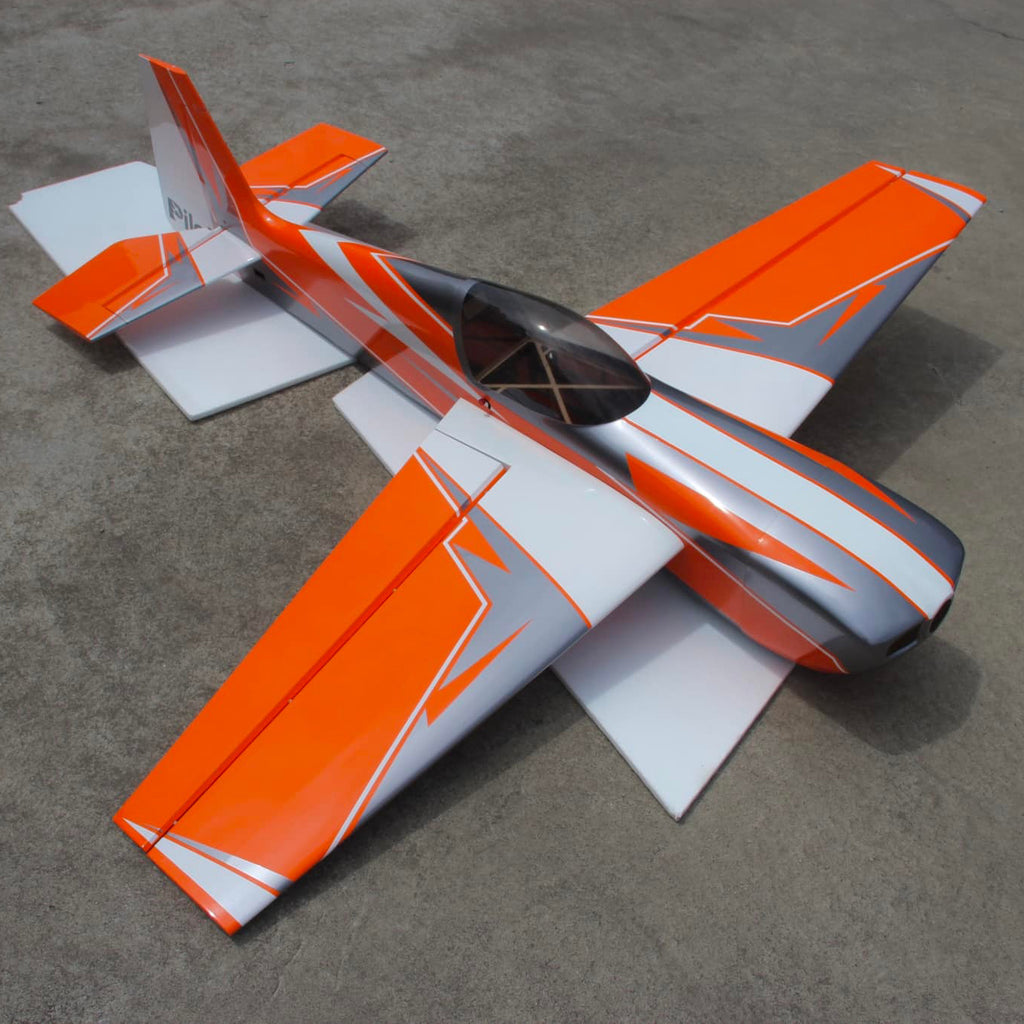

Pilot RC Laser 73In (Cf) Orange (08) PIL713
You wanted it, Pilot-RC have delivered! Another new size Laser, this time for 30-40cc engines or electric power!
Fully designed from the ground up for out and out performance, keeping in line with current demand for faster, more aggressive and more agile models, while still keeping the well know great flying characteristics Pilot-RC models are known for.
You really need to see the videos of this model in action to understand its capability. In this case, its not a question of if the plane is quick enough, its whether you can keep up!
FEATURES:
- NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
- NEW! Patented quick assembly system for wings.
- NEW! Patented quick assembly system for canopy. Especially useful for electric version, fast battery change!
- Genuine German Oracover (Ultracote) covering
- Highly prefabricated, experienced builders can have air ready in under a day
- Pre-installed hinges (glued and pinned)
- Easy canister installation due to open construction
- Removable wings
- Laser engraved motor mounting position

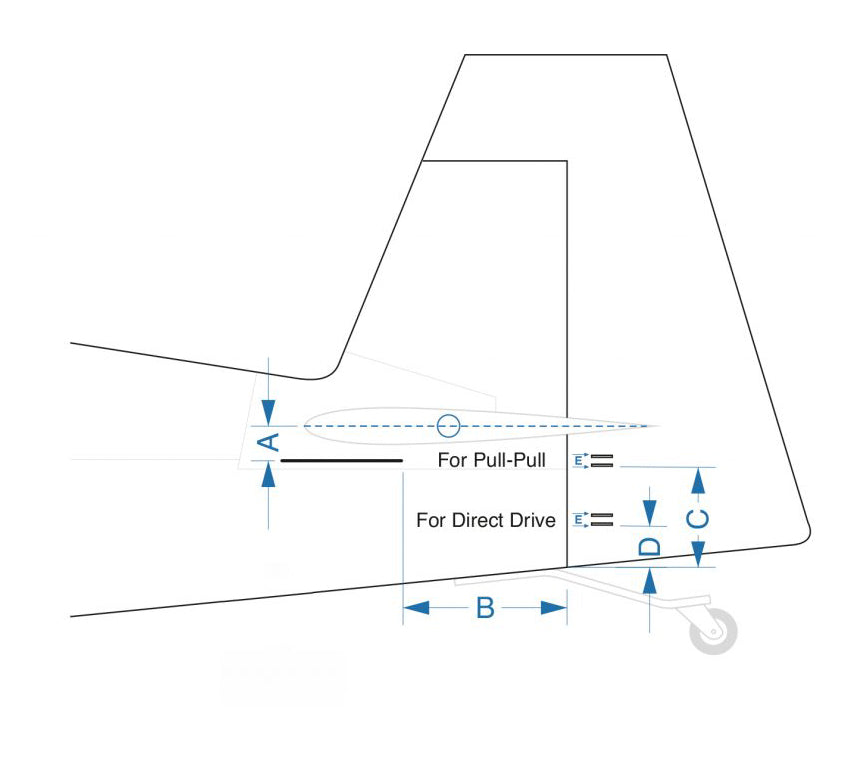

- Pull-Pull system for Rudder servo
- Cowl fits both gasoline and electric motors
- Can use single elevator servo, or choose to split the elevator half and use two separate servos.
- single cylinder and twin cylinder engines!
INCLUDED HARDWARE:
- Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fiberglass control horns and wheel pants)
- Pre-installed hinges and pre-mounted canopy
- Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
- Wheels, axels and wheel pants
- Pre-prepared pull-pull wires and pushrods with ball links
- Matching carbon spinner
REQUIRED HARDWARE:
Motor: 30-40cc or equivalent electric
Servos: 4 or 5 high torque (minimum 20kg) plus throttle // Uses x1 per aileron, x1 or x2 for the elevator (choose if you use joint or split elevator) and x1 on rudder
Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.
SERVO EXTENSION LEAD LENGTH REQUIRED:
- Rudder Servo Place: Middle of Fuselage
- Aileron: 150mm
- Elevator: 800mm
- Rudder: 0mm
- Throttle: 100mm
COLOUR SCHEME COVERING REFERENCES
Laser (Green - 07)
- ACC0187 - MacGregor RC White Covering Film (638mm x 2m)
- ACC0188 - MacGregor RC Black Covering Film (638mm x 2m)
Laser (Orange - 08)
- ACC0187 - MacGregor RC White Covering Film (638mm x 2m)
- ACC0206 - MacGregor RC Orange Covering Film (638mm x 2m)
SERVO EXTENSION LENGTHS
- Throttle: No extension required
- Each aileron: 15cm (to reach receiver direct)
- Each elevator: 80cm
- Rudder: Pull pull, no extension required
CENTRE OF GRAVITY
137mm - Measured back from leading edge of the wing at the fuselage.
