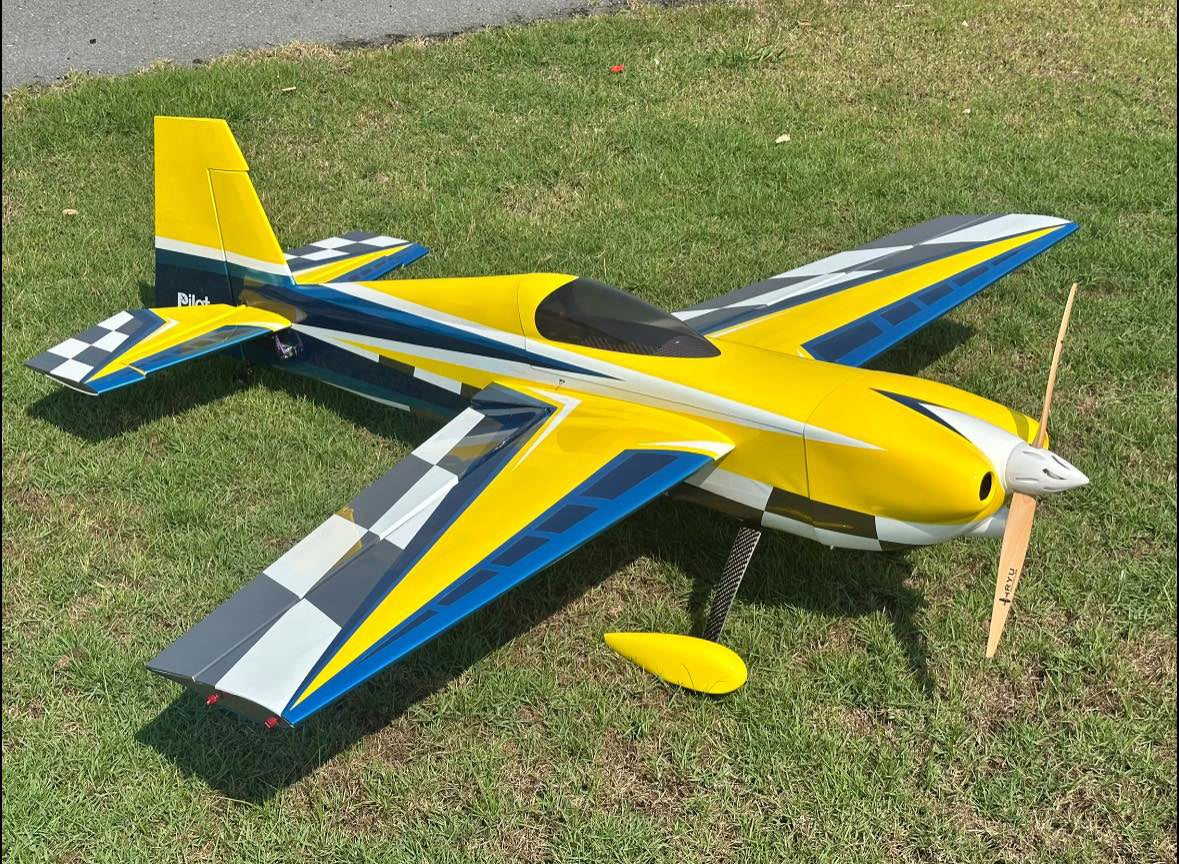

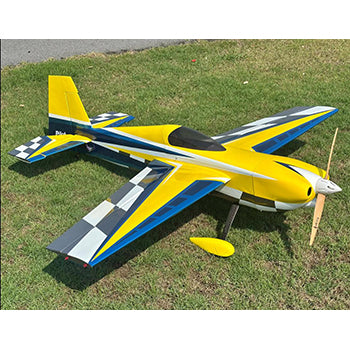

Pilot Edge-540 V3 67in Yellow/Blue/White (02) PIL825
Pilot-RC already surprised everyone with a new level of precision and with our extremely popular, Extra NG, Slick. We have now taken all these great feature models and grown them into our new EDGE V3.
The Pilot-RC EDGE 540 V3 , as well as looking great and offering colour schemes designed by legendary Italian designer Mirco Pecorari at Aircraft Studio Design in 01 colour scheme and Ryu Sintuphrom signature 02 colour scheme both are great design colour look great as usual.
The Edge-540 V3 67" is a game changer, outstanding in a variety of flying styles. A friendly 3D aircraft that makes it easy to get low and slow with the biggest wing area and lowest wing load compared to other Pilot-RC 67in aircraft, so wherever you are in the 3D style, high energy XA, or precision flying, the Edge-540 V3's impressive characteristics will meet every RC pilot's expectations.
FEATURES:
- NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
- NEW! Patented quick assembly system for wings.
- NEW! Patented quick assembly system for canopy. Especially useful for electric version, fast battery change!
- NEW! Patented quick assembly system for SFG.
- Strong yet light weight design, especially developed for precision aerobatic and extreme 3D flying
- Highly prefabricated, experienced builders can have air ready in under a day
- Removable wings
- Laser engraved motor mounting position
- Designed for both 20cc engine or electric motor
- Internally mounted cowling – so no external screws exposed
- Included servo extension wires and wing bags
- Push pull rudder link for more precise and direct response
REQUIRED HARDWARE (NOT SUPPLIED):
- Motor: 20cc or equivalent electric
- Battery for Electric: 4000mah 6s – 6000mah 6s
- Servos*: 4 high torque (minimum 10kg) plus throttle // Uses x2 per aileron, x1 for elevator and x1 on rudder
*Please note that the servo slots are designed to accept a medium size servo (35mm x 15mm) however the wood has been prepared and marked, should you wish to enlarge in order to accept standard size servos.
Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.
RECOMMENDED HARDWARE (NOT SUPPLIED):
Servos: MacGregor MG5921HV 20.3Kg.cm/0.12s High Voltage Servo
Servo arms: MacGregor Heavy Duty Servo Arms (ACC0017) (Please note these are supplied with Pilot-RC 67in Aircraft Power Pack with Servos (PIL408)
Electric Motor & ESC: 67in Aircraft Power Pack (PIL406) or 67in Aircraft Power Pack with Servos (PIL408) or T-Motor AM670 520KV Combo (TM-AM670-C520)
EXTENSION WIRE LENGTHS:
- Throttle: No extension required
- Each Aileron: 10cm (nearest servo and furthest servo – to reach receiver direct)
- Elevator: 70cm
- Rudder: 70cm
CENTRE OF GRAVITY:
122mm - Measured back from leading edge of the wing at the fuselage.
You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.

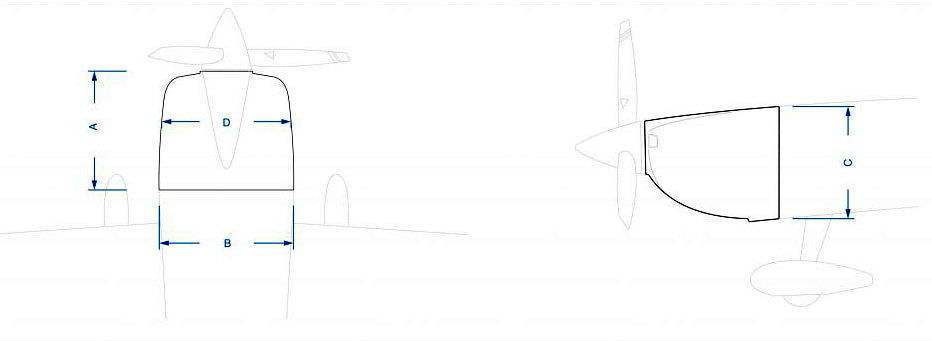

Cowl Dimensions
A: 236mm | B: 195mm | C: 192mm | D: 214mm
