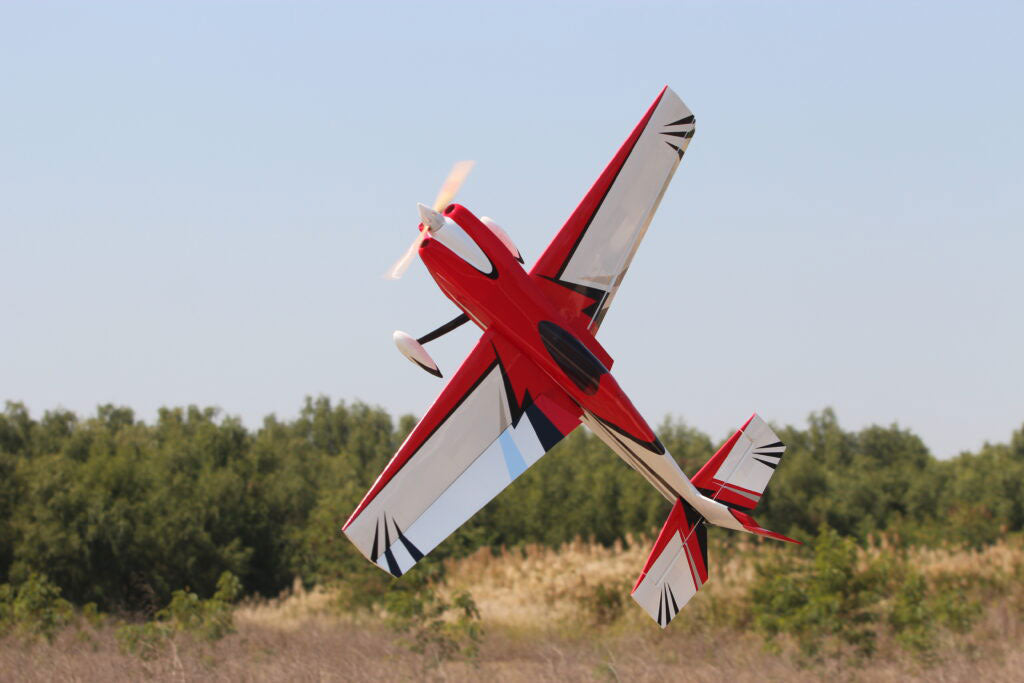

Pilot Edge 540 V3 67in RED / WHITE / BLACK (01) PIL849
Pilot-RC surprised everyone with a new level of precision in their extremely popular Extra-NG and Slick. We have now taken all these great features and grown them into the new EDGE V3.
The Pilot-RC EDGE 540 V3 is available in two colour schemes. The 01 scheme was designed by legendary Italian designer Mirco Pecorari at Aircraft Studio Design and Ryu Sintuphrom's signature 02 colour scheme.
Pilot-RC Edge-540 V3 was designed and developed by the highly experienced design team of Pilot-RC. The Edge 540 V3 has the modern aesthetics of a full-size V3 Edge-540.
The Edge-540 V3 67" is a game changer, outstanding in a variety of flying styles. A friendly 3D aircraft that makes it easy to get low and slow with the biggest wing area and lowest wing load compared to other Pilot-RC 67in aircraft, so wherever you are in the 3D style, high energy XA, or precision flying, the Edge-540 V3's impressive characteristics will meet every RC pilot's expectations.
FEATURES:
- NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
- NEW! Patented quick assembly system for wings.
- NEW! Patented quick assembly system for canopy. Especially useful for electric version, fast battery change!
- NEW! Patented quick assembly system for SFG.
- Strong yet light weight design, especially developed for precision aerobatic and extreme 3D flying
- Highly prefabricated, experienced builders can have air ready in under a day
- Removable wings
- Laser engraved motor mounting position
- Designed for both 20cc engine or electric motor
- Internally mounted cowling – so no external screws exposed
- Included servo extension wires and wing bags
- Push pull rudder link for more precise and direct response
INCLUDED HARDWARE:
- Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
- Included wing bags
- Included extension wires
- Pre-prepared hinges ready to be installed and pre-mounted canopy
- Fuel tank, fuel dot and fuel tubing pre-prepared
- Wheels, axels and wheel pants
- Pre-prepared pushrods with ball links
- 2.5in spinner
REQUIRED HARDWARE (NOT SUPPLIED):
- Motor: 20cc or equivalent electric
- Battery for Electric: 4000mah 6s – 6000mah 6s
- Servos*: 4 high torque (minimum 10kg) plus throttle // Uses x2 per aileron, x1 for elevator and x1 on rudder
*Please note that the servo slots are designed to accept a medium size servo (35mm x 15mm) however the wood has been prepared and marked, should you wish to enlarge in order to accept standard size servos.
Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.
RECOMMENDED HARDWARE (NOT SUPPLIED):
Servos: MacGregor MG5921HV 20.3Kg.cm/0.12s High Voltage Servo
Servo arms: MacGregor Heavy Duty Servo Arms (ACC0017) (Please note these are supplied with Pilot-RC 67in Aircraft Power Pack with Servos (PIL408)
Electric Motor & ESC: 67in Aircraft Power Pack (PIL406) or 67in Aircraft Power Pack with Servos (PIL408) or T-Motor AM670 520KV Combo (TM-AM670-C520)
EXTENSION WIRE LENGTHS:
- Throttle: No extension required
- Each Aileron: 10cm (nearest servo and furthest servo – to reach receiver direct)
- Elevator: 70cm
- Rudder: 70cm
CENTRE OF GRAVITY:
122mm - Measured back from leading edge of the wing at the fuselage.
You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
SPECIFICATIONS:
| Model: |
EDGE 540 V3- 67in |
| Wingspan: |
67.5in (1.714m) |
| Length: |
68in (1.745m) with spinner |
| Wing area: |
956sq in (6,170sq cm) |
| Weight: |
8.1lbs (3.7kg) |
