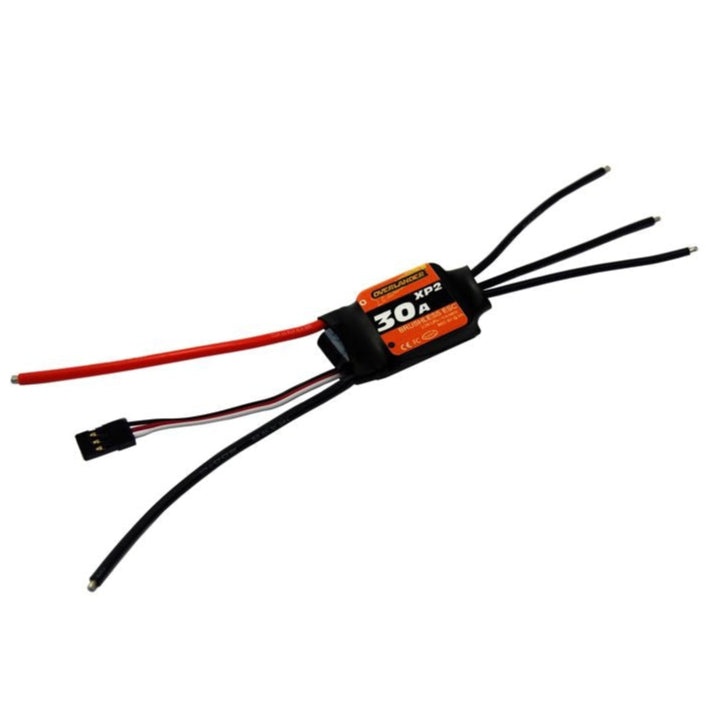

Overlander XP2 30A Brushless Speed Controller ESC 2610
The Overlander XP2 30A Brushless Speed Controller is a high-performance ESC designed for smooth and reliable control of your RC aircraft. Ideal for a variety of model types, including sport planes, park flyers and electric gliders, this ESC supports seamless integration with Overlander Tornado Thumper V3 motors such as 3530/14, 3536/05, 3536/06 and 3536/08.
At 42mm x 25mm x 8mm and weighing only 23g, the XP2 30A ESC is compact and lightweight, fitting a variety of models while keeping overall weight minimal. It is compatible with 2-3S LiPo batteries, providing versatility across different power configurations. Settings are fully customisable using the Overlander XP2 Program Card, allowing you to tailor performance to your specific needs.
Key Advantages:
-
Motor compatibility: Designed for Tornado Thumper V3 motors, including 3530/14, 3536/05, 3536/06 and 3536/08.
-
30A continuous current: Ensures reliable and smooth power delivery for efficient operation.
-
Compact and lightweight: At 42mm x 25mm x 8mm and 23g, it’s perfect for smaller RC planes.
-
Customisable settings: Compatible with the Overlander XP2 Program Card for tailored performance.
Safety Information:
Always follow the manufacturer’s instructions for safe operation and installation. Secure all connections to prevent short circuits, and monitor the ESC’s temperature during use. Avoid exceeding the recommended voltage and current limits to prevent damage. Dispose of electronics responsibly according to local regulations.
Please Note:
The XP2 series is designed for model aircraft. Although it supports reverse motor direction, switching between forward and reverse during operation is not possible. For boats or vehicles needing quick directional changes, a marine ESC is recommended.
Top Tip:
Limit servos to 1 servo per 1A of BEC. For setups with four or more servos, consider a separate receiver battery pack or an upgraded UBEC.
