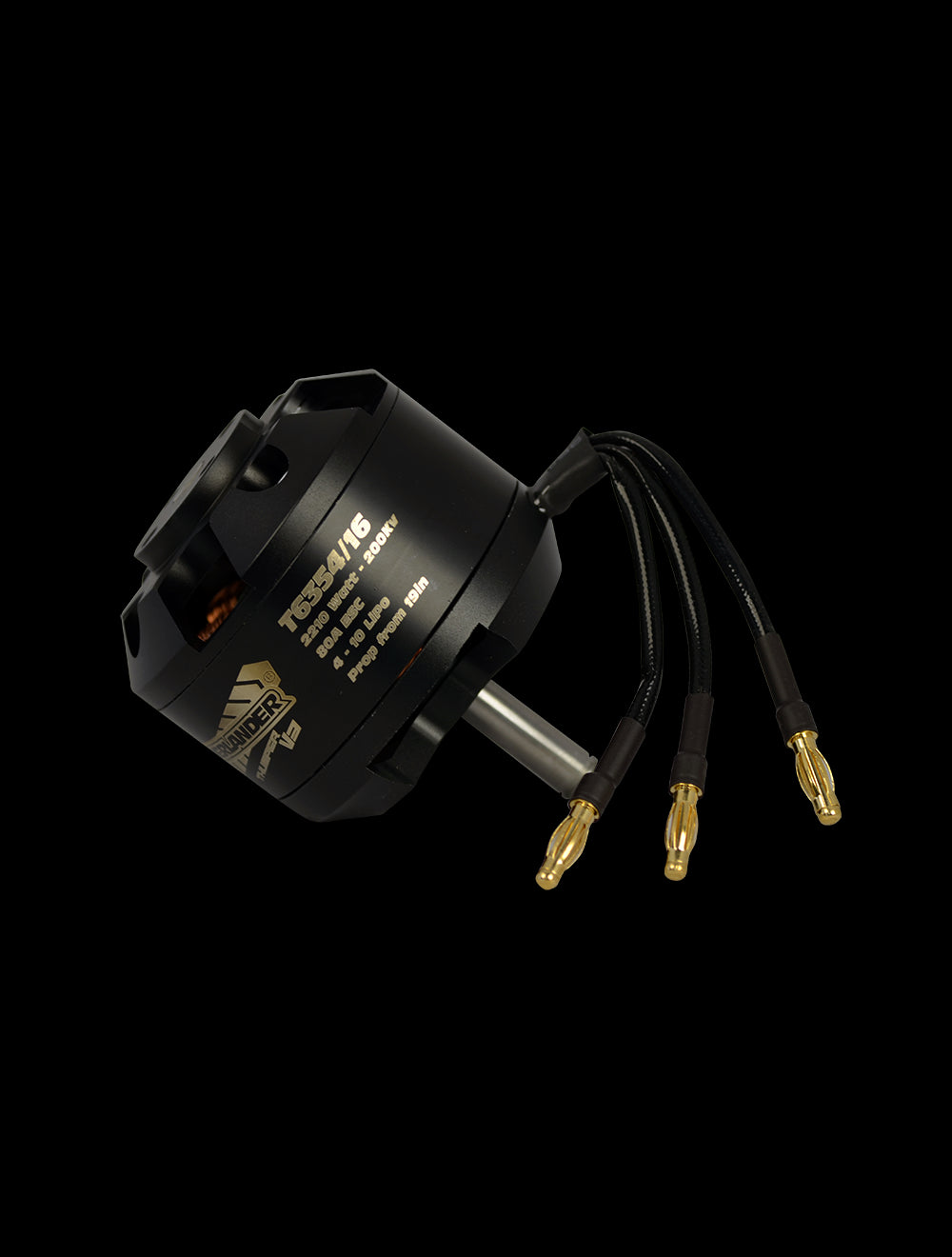

Overlander 6354/16 200KV Tornado Thumper V3 - Brushless Outrunner RC Motor (IC 1.10 Equivalent) 3103
The 6354/16 200KV motor is part of Overlander's Tornado Thumper V3 range. These motors are manufactured to Overlander’s demanding standards, using the finest quality components and state of the art CNC machine tools. A total performance package when used in conjunction with our XP2 ESCs!
Specifications:
| SKU |
3103 |
| Barcode |
5060470210427 |
| KV (rpm/V) |
200 |
| Power |
2210W |
| Idle Current |
0.9A |
| Maximum Amp Draw |
50A |
| Motor Type |
Outrunner |
| Recommended ESC |
80A |
| LiPo Voltage Range |
4 - 10S |
| NiMH Voltage Range |
10 - 28S |
| Minimum Propeller Size |
18 x 10 (with 10S LiPo) |
| Maximum Propeller Size |
20 x 10 (with 4S LiPo) |
| Shaft Diameter (mm) |
8 |
| Motor Poles |
14 |
| Connector |
4mm Gold |
| Diameter (mm) |
63 |
| Length |
54 |
| KV (rpm/V) |
200 |
| Weight (g) |
471 |
