MATRIX JET 1.8M w/RETRACTS RED/SILVER

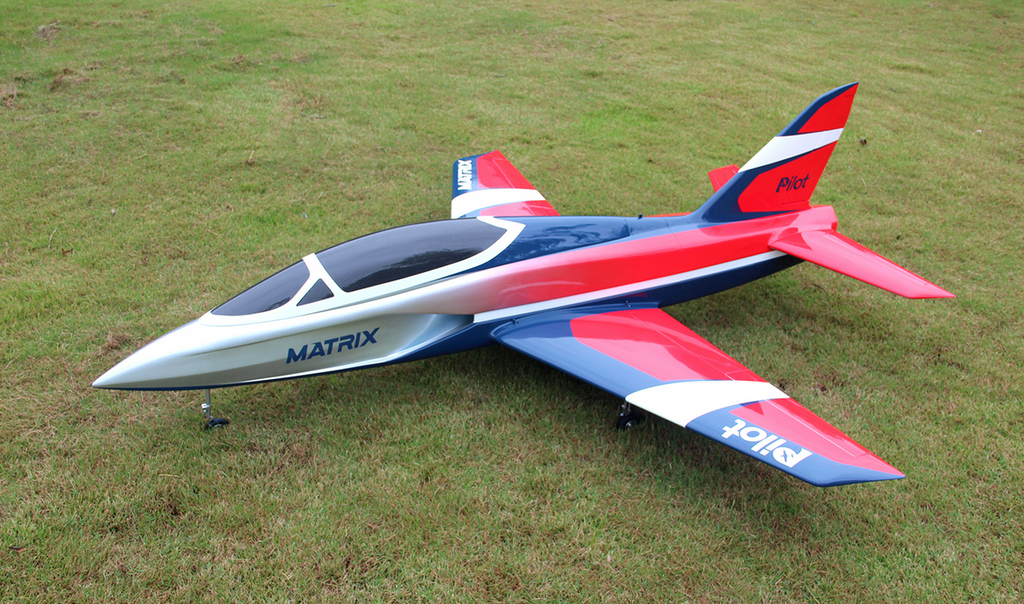

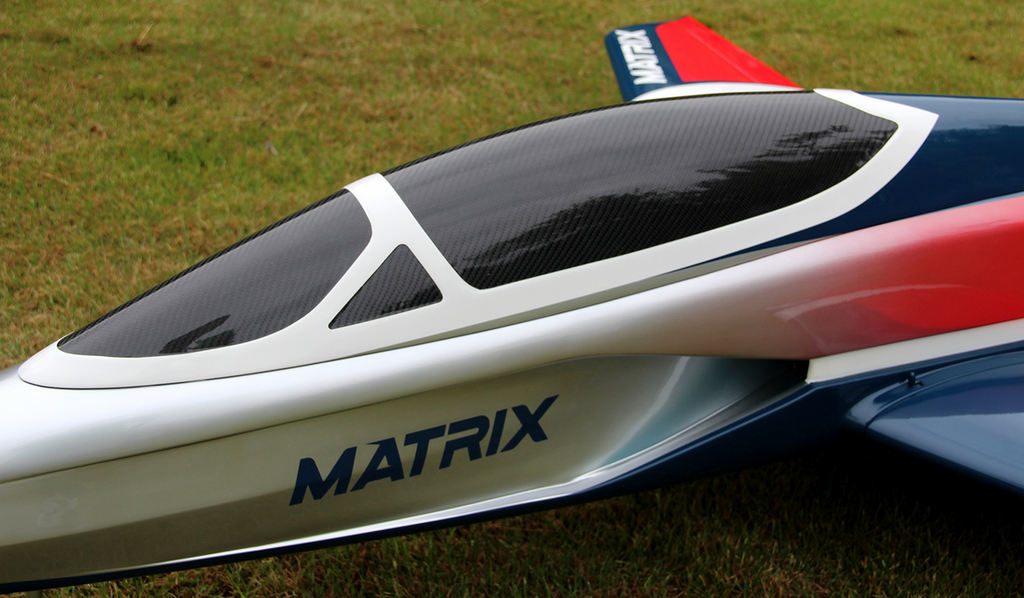

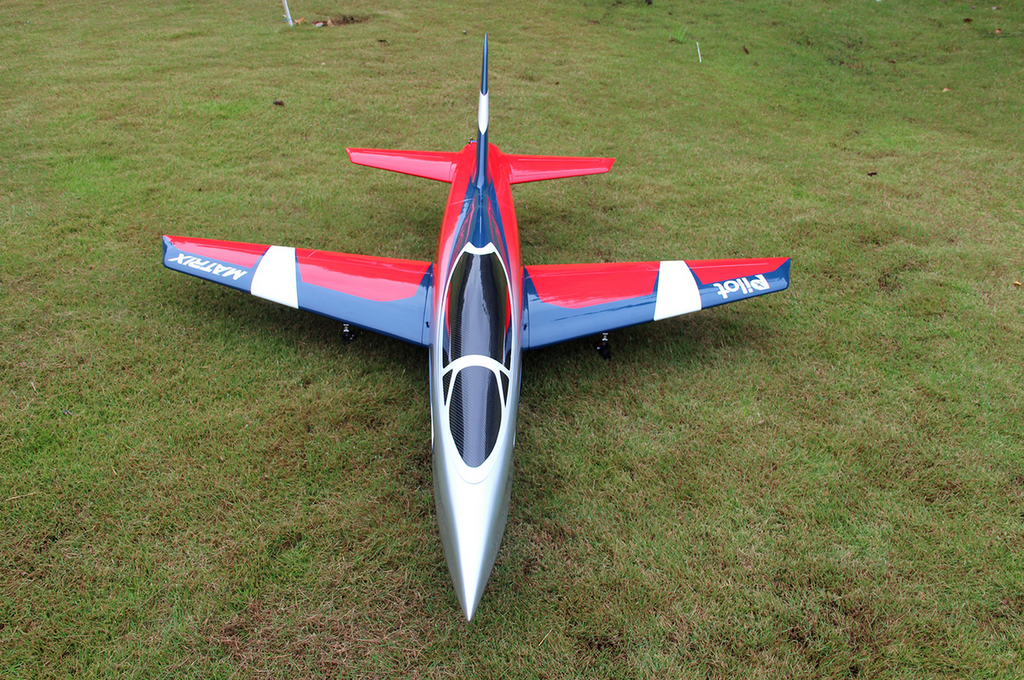

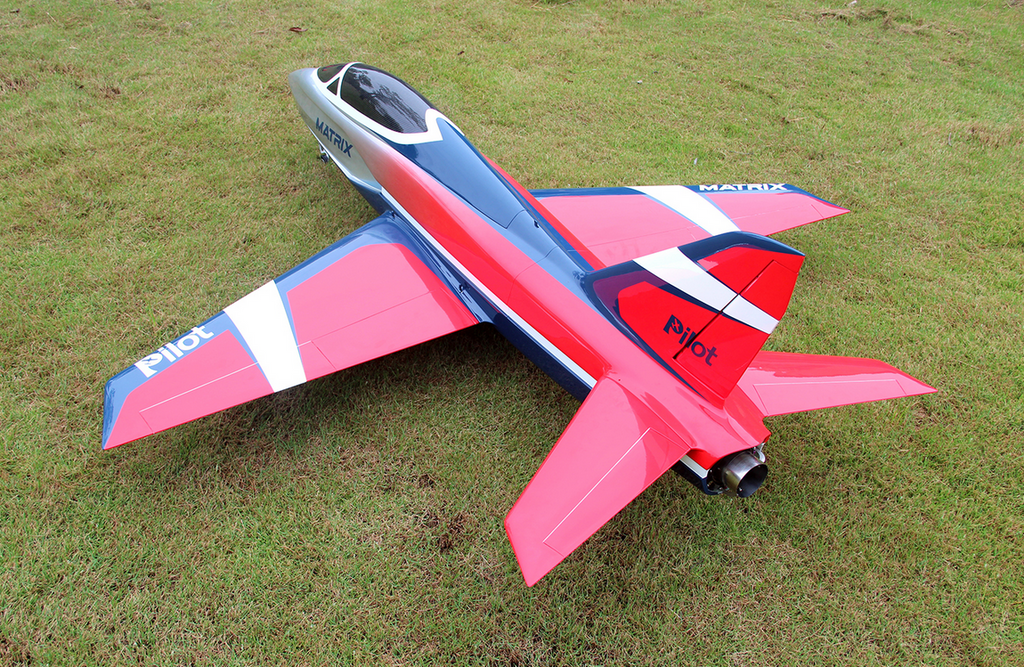

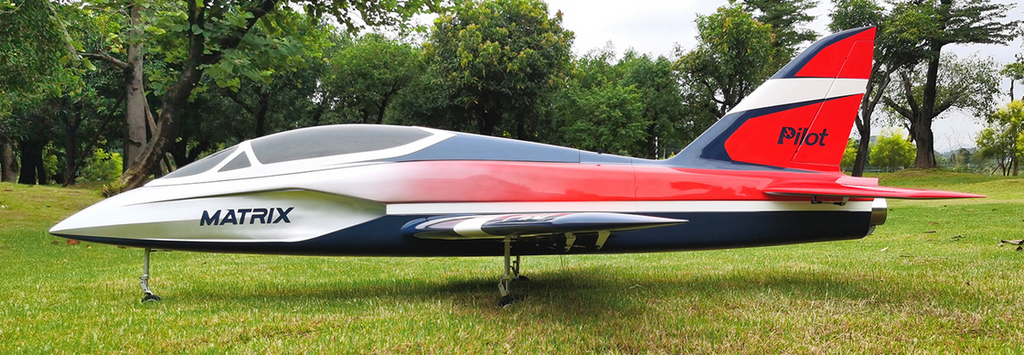

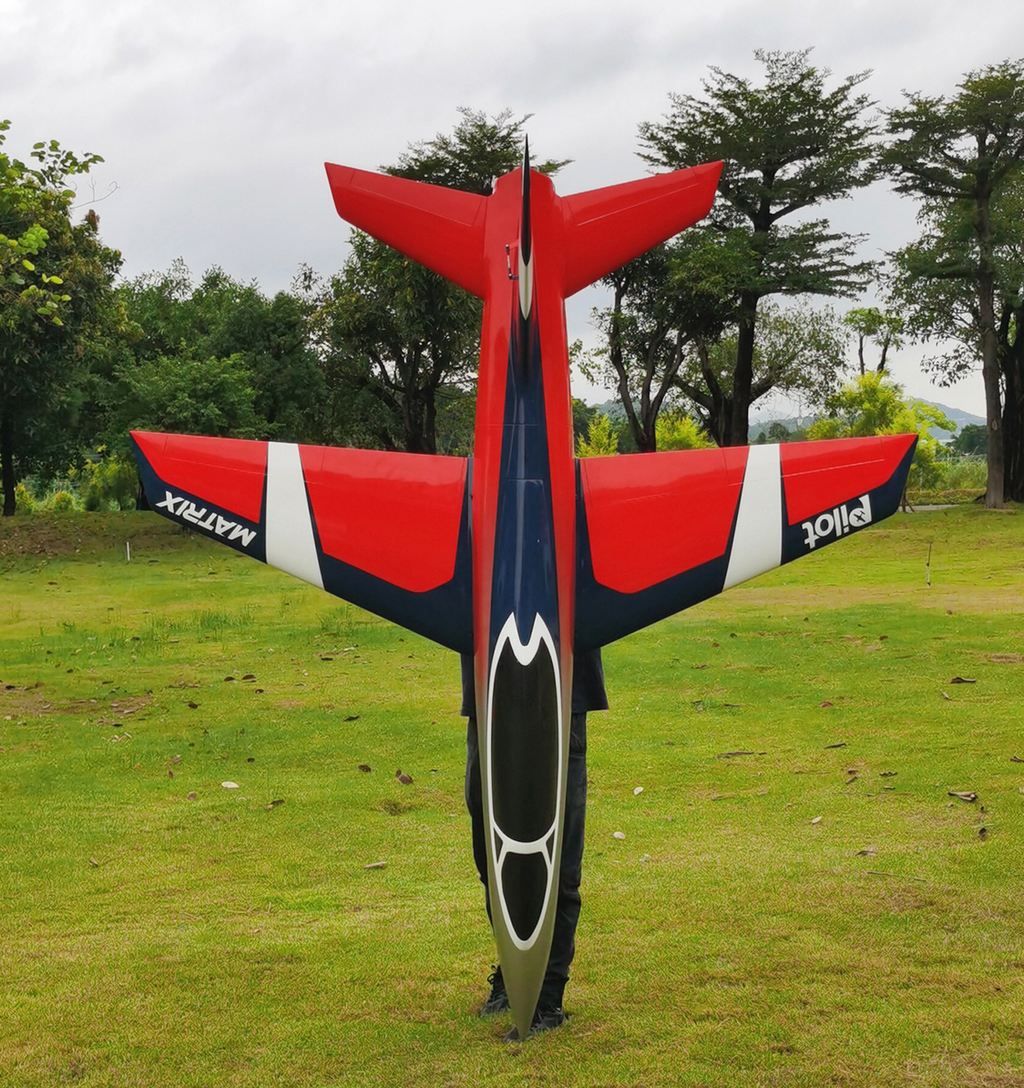

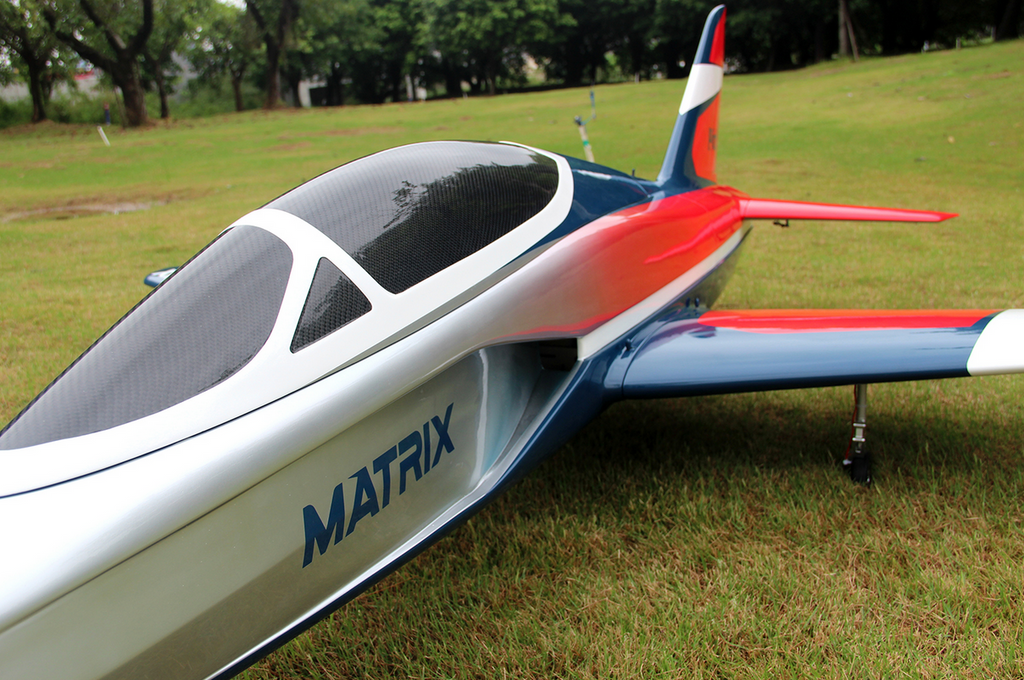

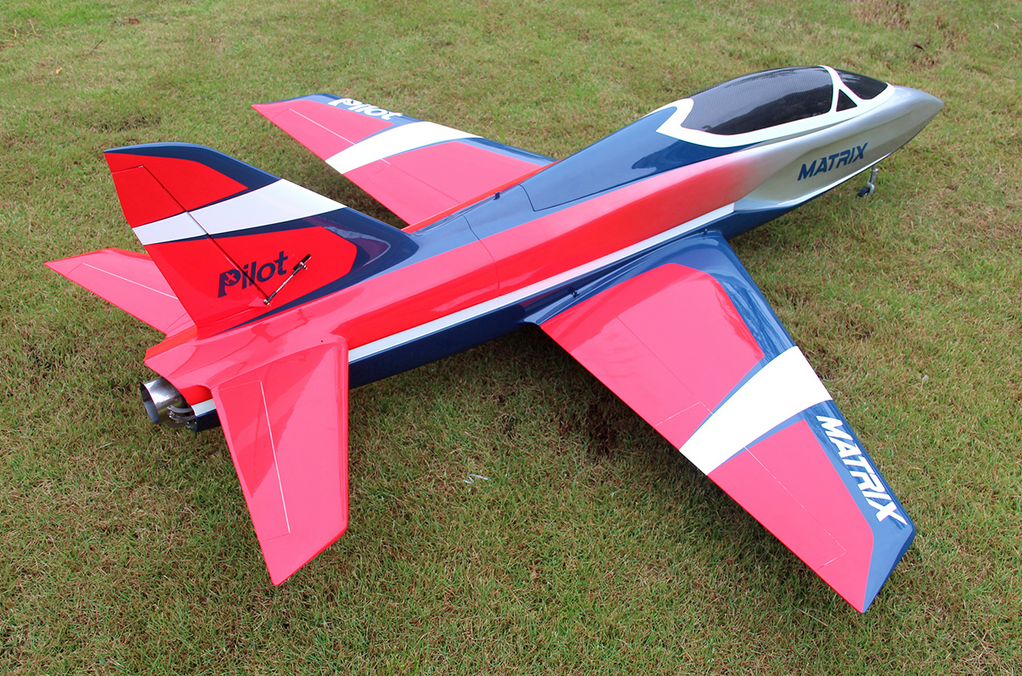

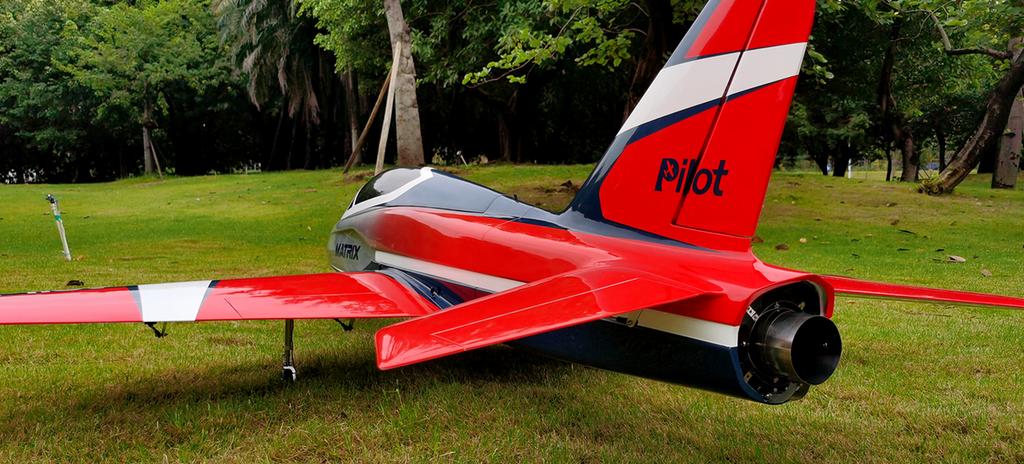

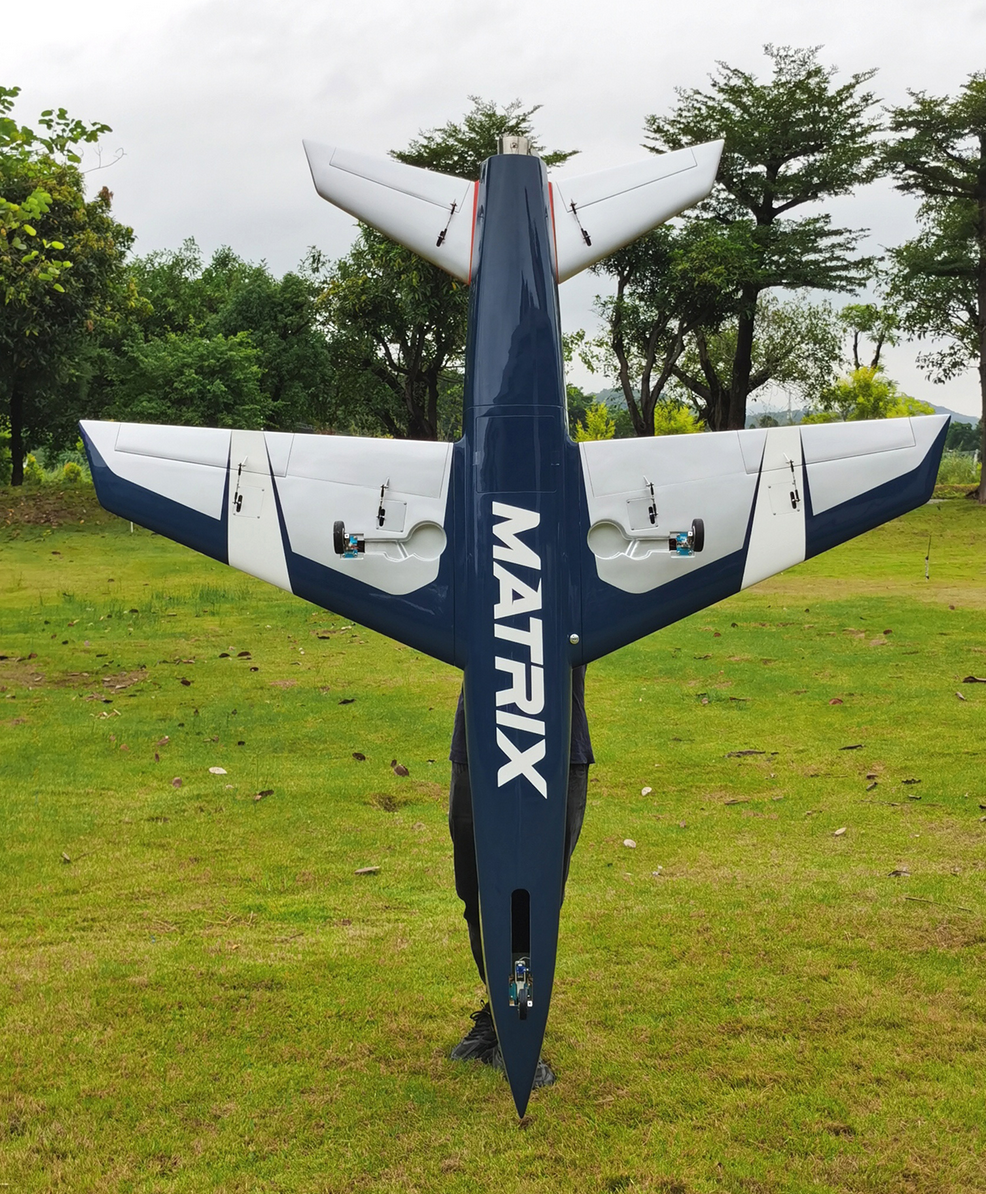

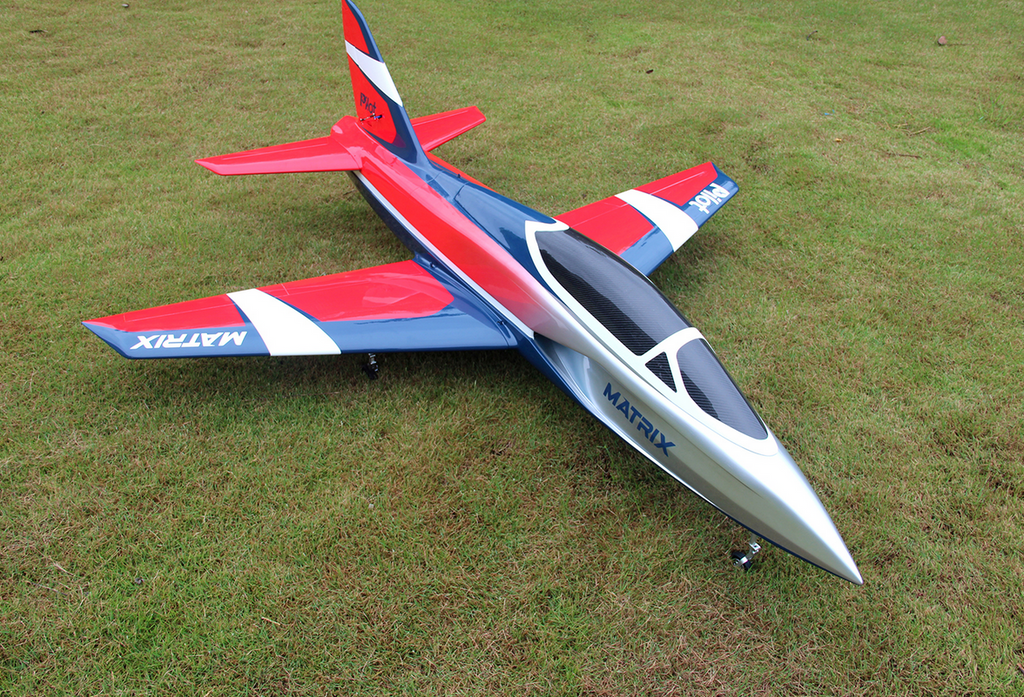

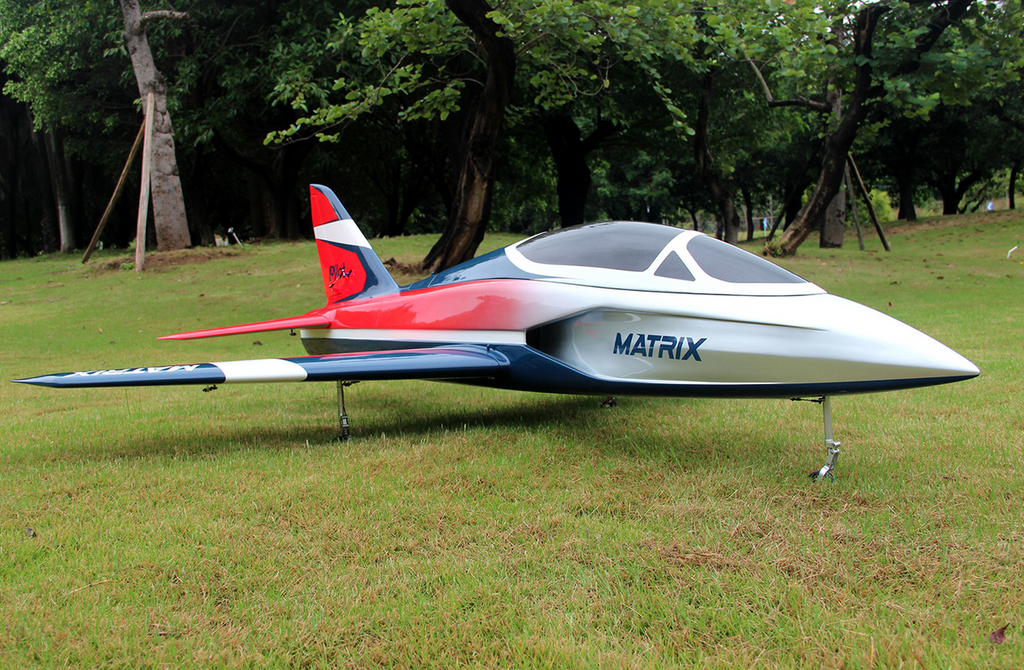

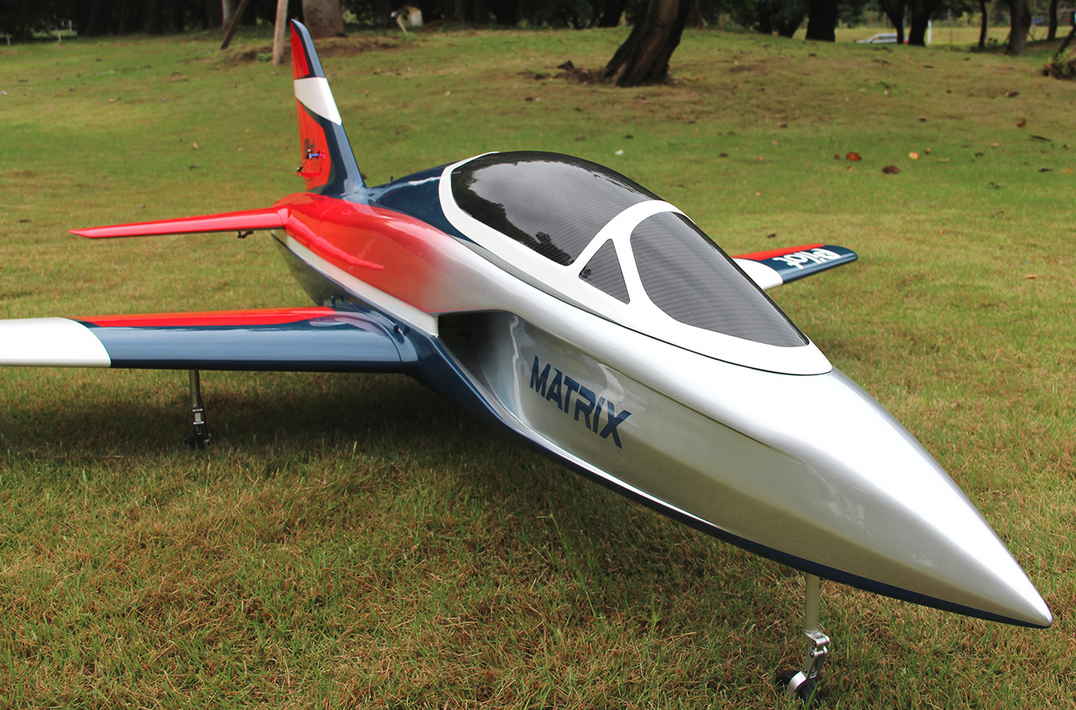

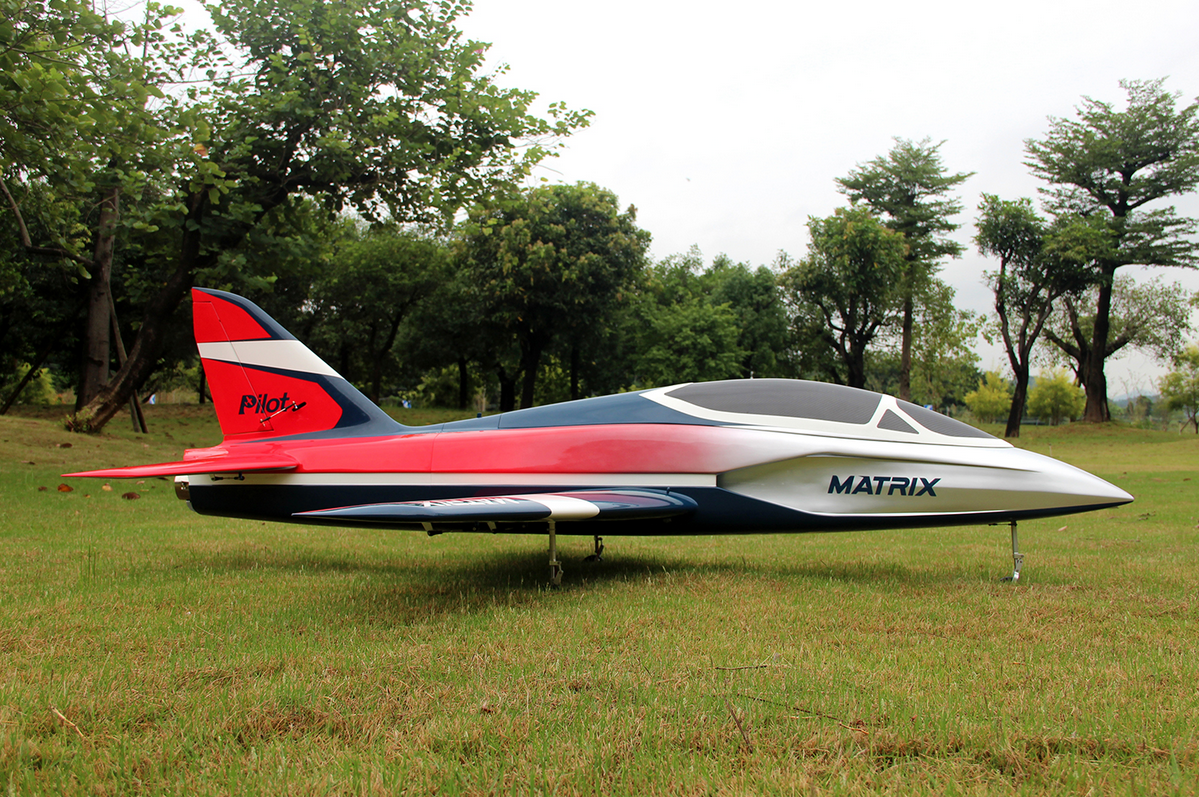

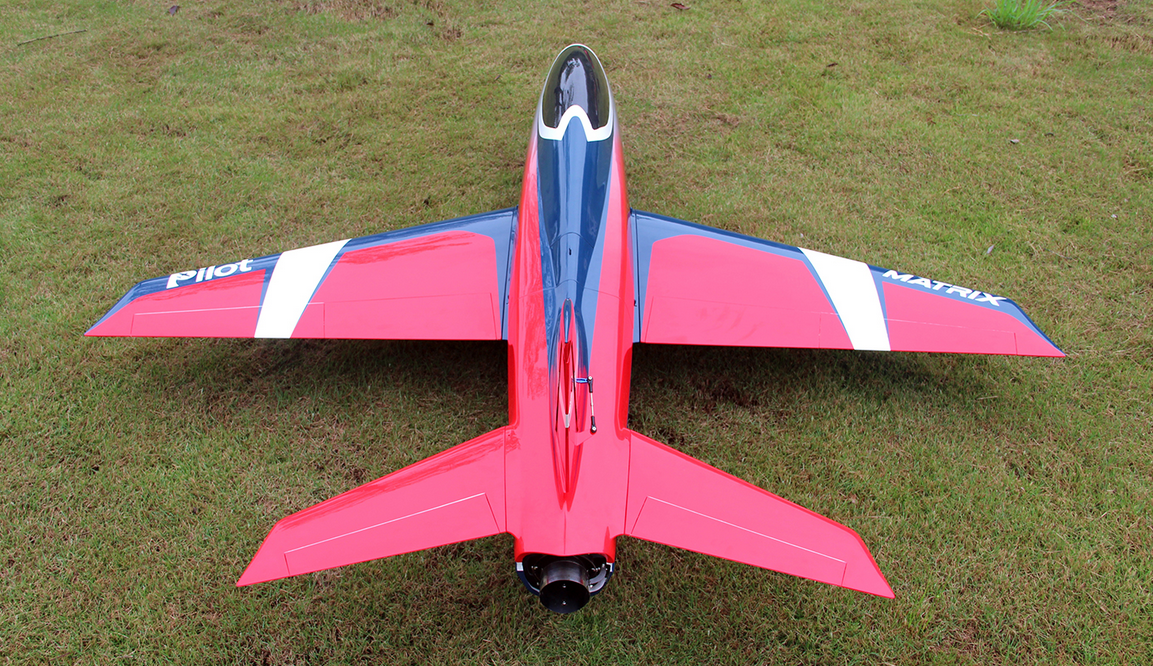

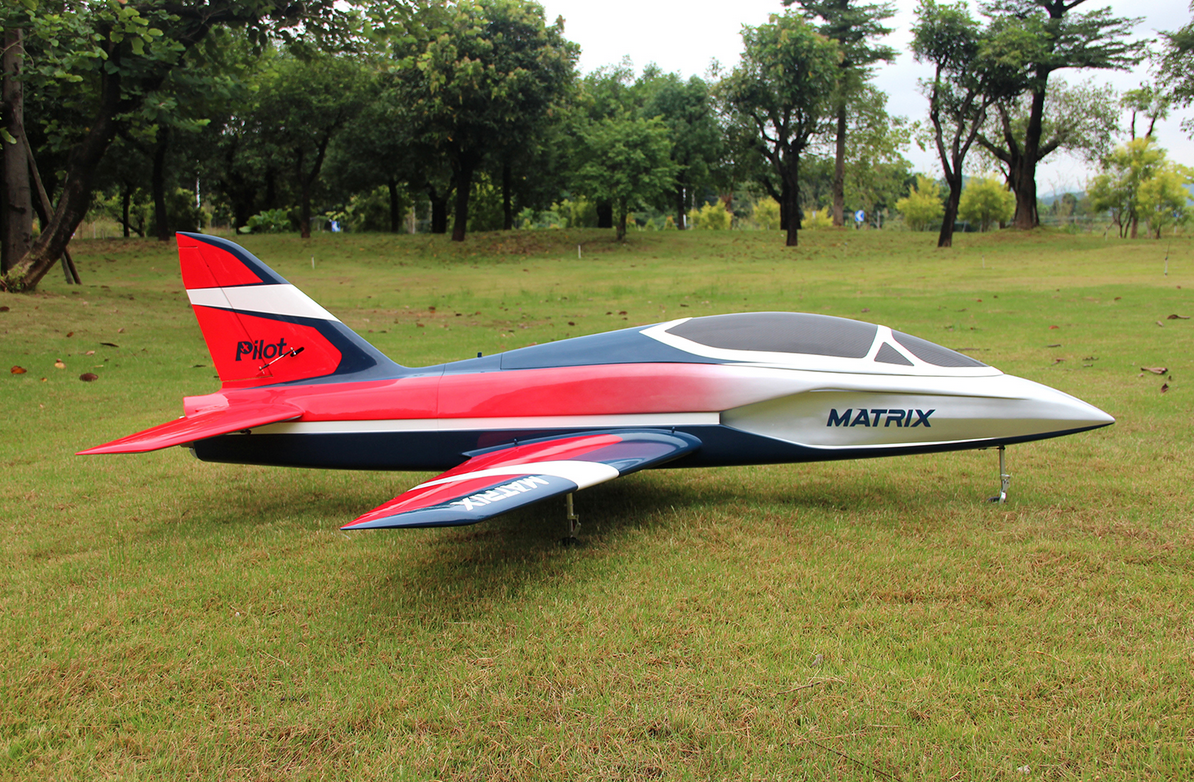

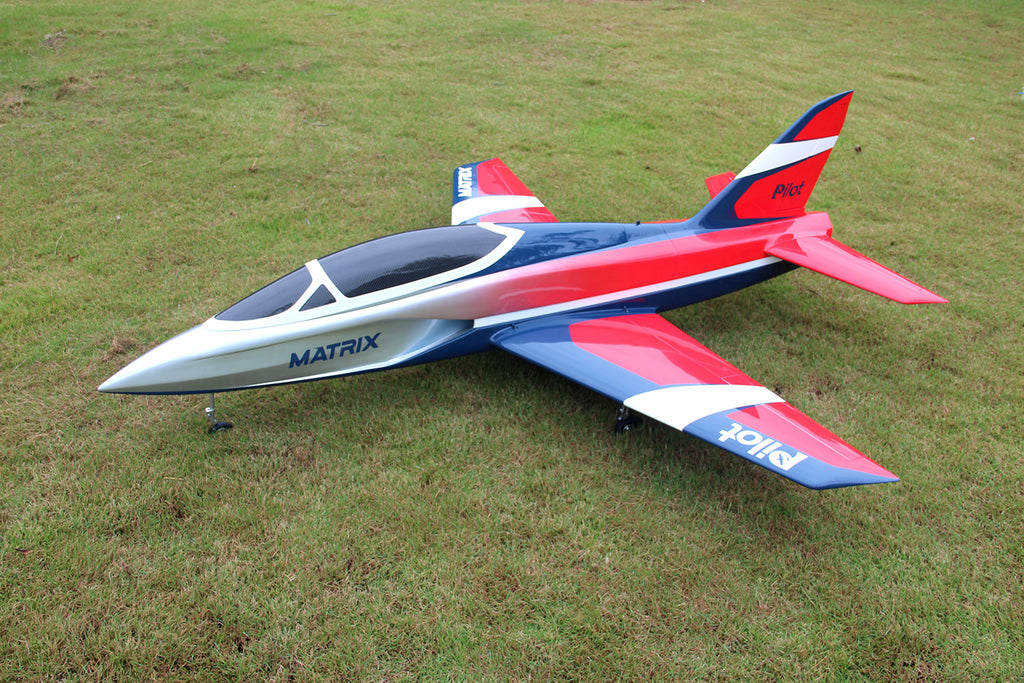

Please note: Photos shown are the 2.2m Matrix the only difference is the canopy of 1.8 matrix will be not carbon colour.
The Pilot-RC Matrix is an innovative approach to a new sport jet/ 3Djet. Great capabilities had to be combined between sport jet and unbeatable 3D performance. everything aerodynamic we tested and learned from Predator and develop together with one of the best pilot in the world for Matrix performance so we can say this is best ever sport jet with ultimate flying characteristics for precise aerobatics and 3D aerobatics at the same time.
The CG is 196mm back from the leading edge of the wing at the fuselage, measured with empty main tank, full UAT, landing gear down.
Features:
- Extremely lightweight full composite construction especially designed for outstanding sport flight
- Painted outside the mould so no seam lines
- Ultra light weight landing gear
- Specially designed easy access to turbine for speedy installation
- Field setup can be done in seconds, thanks to the quick releases on the wings without the need for any tools
- The single elevator clamp from the top, the clamp only a few turns to tighten/loosen the bolt then you can install/remove the stabiliser
- Removable wing and elevator for easy transport
- The equipment installation board make the electronic items with very clear installation. Most of the wire can be hidden.
- Pre-installed tube for the stab/rudder extension wire, easy to install
Included Hardware:
- Complete air frame (including carbon wing-tubes and preinstalled and painted fiberglass control horns)
- Servo extension leads

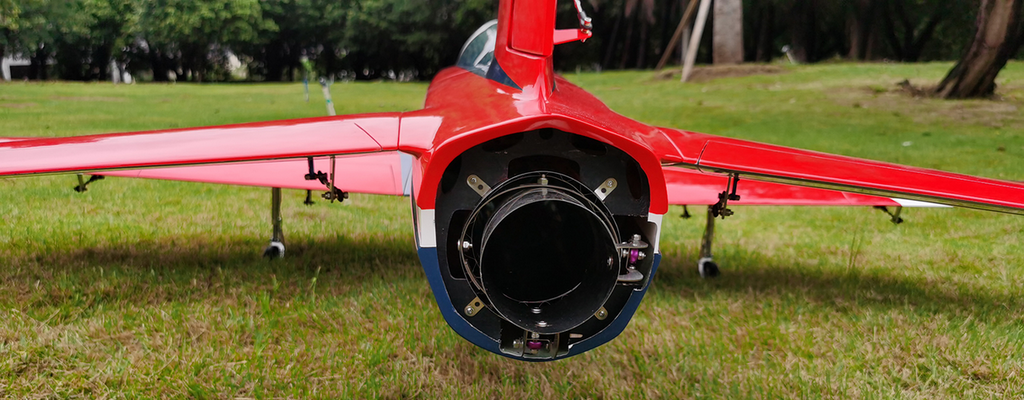

- Normal tail pipe
- 2000ml fuel tank (Optional upgrade to fuel bag)
- 250ml UAT tank
- Pre-prepared pushrods with ball links
- Servo connector brackets
Required/Recommended Hardware (Not Supplied):
Turbine Size:
- 60-100N for Normal Sport Flying
Servos (Sport Flying):
7 x MacGregor MGB5216HV 16.0kg/0.08s Brushless High Voltage Servo or 7 x Pilot-RC PW-21AH 21.5kg.cm/0.079s High Torque Brushless Servo (2 x Flap, 2 x Elevator, 2 x Ailerons, 1 x Rudder)
1 x MacGregor MG2810HV 10.0Kg/0.07s High Voltage Servo (1 x Steering)
Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories.
