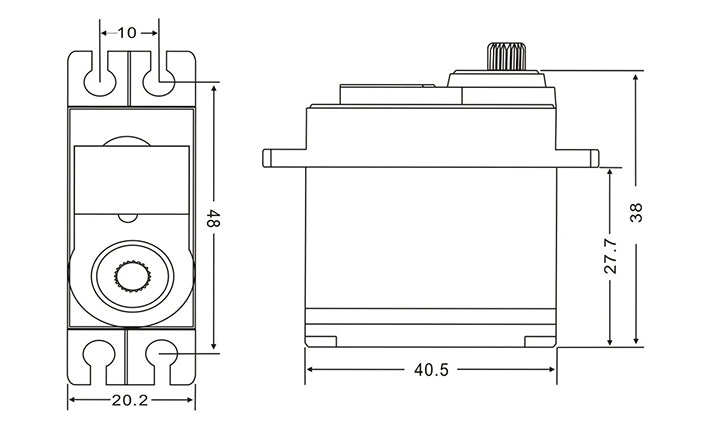

MacGregor PG4906DS Standard Digital Servo 6.2KG 4.8V - 6V MAC4906 Dimensions
Roll over image to zoom in Click on image to zoom
MacGregor PG4906DS Standard Digital Servo 6.2KG 4.8V - 6V MAC4906 PhotoMacGregor PG4906DS Standard Digital Servo 6.2KG 4.8V - 6V MAC4906 Dimensions

MacGregor PG4906DS Standard Digital Servo 6.2KG 4.8V - 6V MAC4906

Save £0.99
MacGregorSKU: MAC4906
Price:
£8.96 £9.95
Stock:
In stock (6 units), ready to be shipped

Description

SPECIFICATIONS:

Dead Band: 2µs
Working Frequency: 1520µs/330hz
Operating Voltage: DC 4.8 ~ 6.0V
Operating Speed (4.8V): 0.14sec/60 degrees
Operating Speed (6V): 0.12sec/60 degrees
Stall Torque (4.8V): 5.7kg.cm
Stall Torque (6.0V): 6.2kg.cm
Dimensions: 40.5 x 20.3 x 38mm
Weight: 49g
Connector Wire Length: 265 mm (10.43in) JR Style
