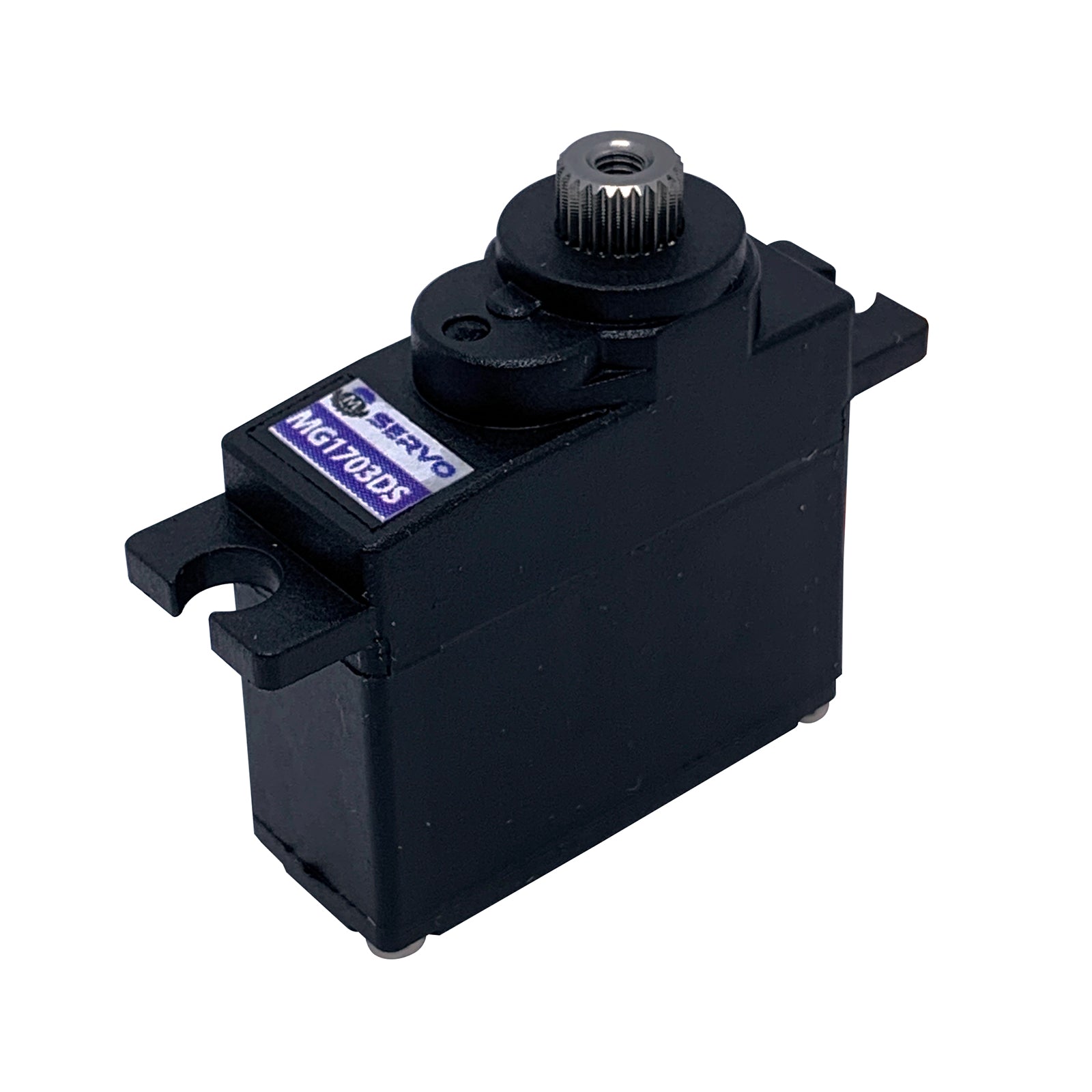

MacGregor MG1703DS 3.3kg/0.10s Midi Servo MAC1703
Roll over image to zoom in Click on image to zoom
MacGregor MG1703DS 3.3kg/0.10s Midi Servo MAC1703MacGregor MG1703DS 3.3kg/0.10s Midi Servo MAC1703

MacGregor MG1703DS Midi Servo 3.3kg/0.10s 4.8V - 6.0V MAC1703

Save 11%
MacGregorSKU: MAC1703
Price:
£13.30 £14.95
Stock:
In stock (13 units), ready to be shipped
 More payment options

Description

MacGregor MG1703DS 3.3kg/0.10s Midi Servo MAC1703

The MG1703DS is part of MacGregor's range of digital servos. This midi digital servo is ideal for VQ Models ARF Kits.

  • High Performance Midi Digital Servo
  • High-Precision Metal Gears
  • High Quality Core Motor
  • 25T (Futaba Type) Spline
  • JR Style Lead and Plug
  • Equivalent to Pichler DS3012/C5638 Master Servo
Operating Voltage: DC 4.8 - 6.0V
Dead Band: 1µs 1520µs / 330hz
Motor: Core Motor
Operating Speed (4.8V): 0.12sec/60°
Operating Speed (6.0V): 0.10sec/60°
Stall Torque (4.8V): 2.0Kg.cm
Stall Torque (6.0V): 3.3kg.cm
Dimensions: 30 x 12 x 32mm
Weight: 17g
MG1703DS Detailed Specification Sheet
