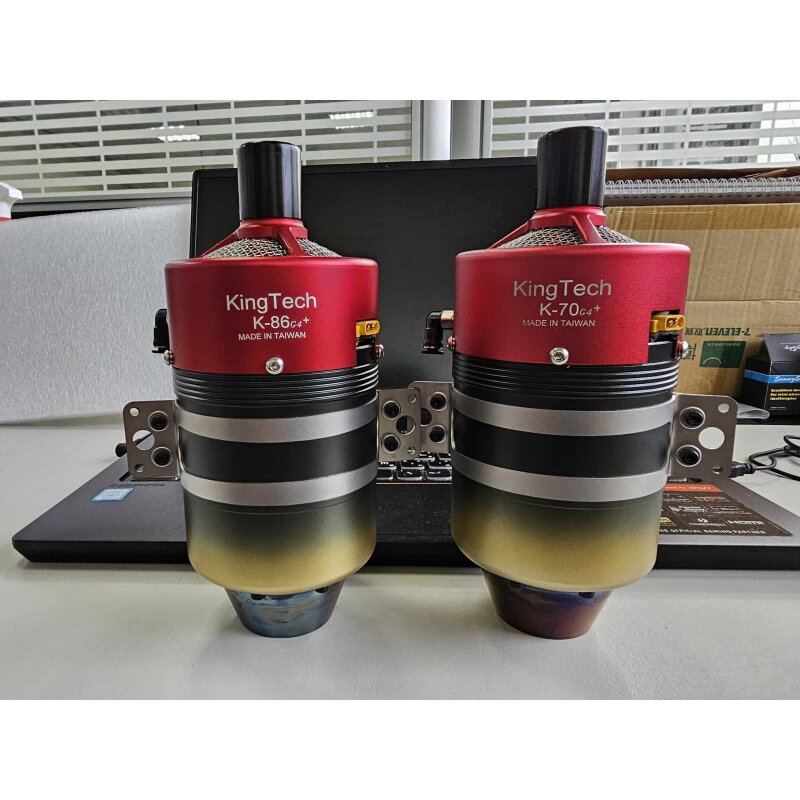

KingTech KT86G4+ Turbine Engine
New G4 fourth generation
The G4 turbines now have a KT-Bus system, only one cable to the turbine via XT30 connector, integrated fod screen, brushless starter, new features, app * for Android and IOS, ECU mainboard, all parameters and timers integrated in the RPM sensor in the turbine.
Data relay module (DRM) integrated in the turbine, DRM transmits data, signals and power distribution, bluetooth, USB connection for upgrades and later planned features.
K86G4+
Specification:
Diameter: 76mm
Length: 178mm
Weight: 725g(Not include mount)
Max. RPM: 176000
Thrust: 8.5kg +@ 15°C EGT: 750°C max
Pump type:Digital sbus brushless pump(KP300BL)
Fuel consumption: 280g/min Fuel: Diesel, Jet A1, Petroleum
Kerosene Lubrication: 5%
Maintenance cycle: 25
