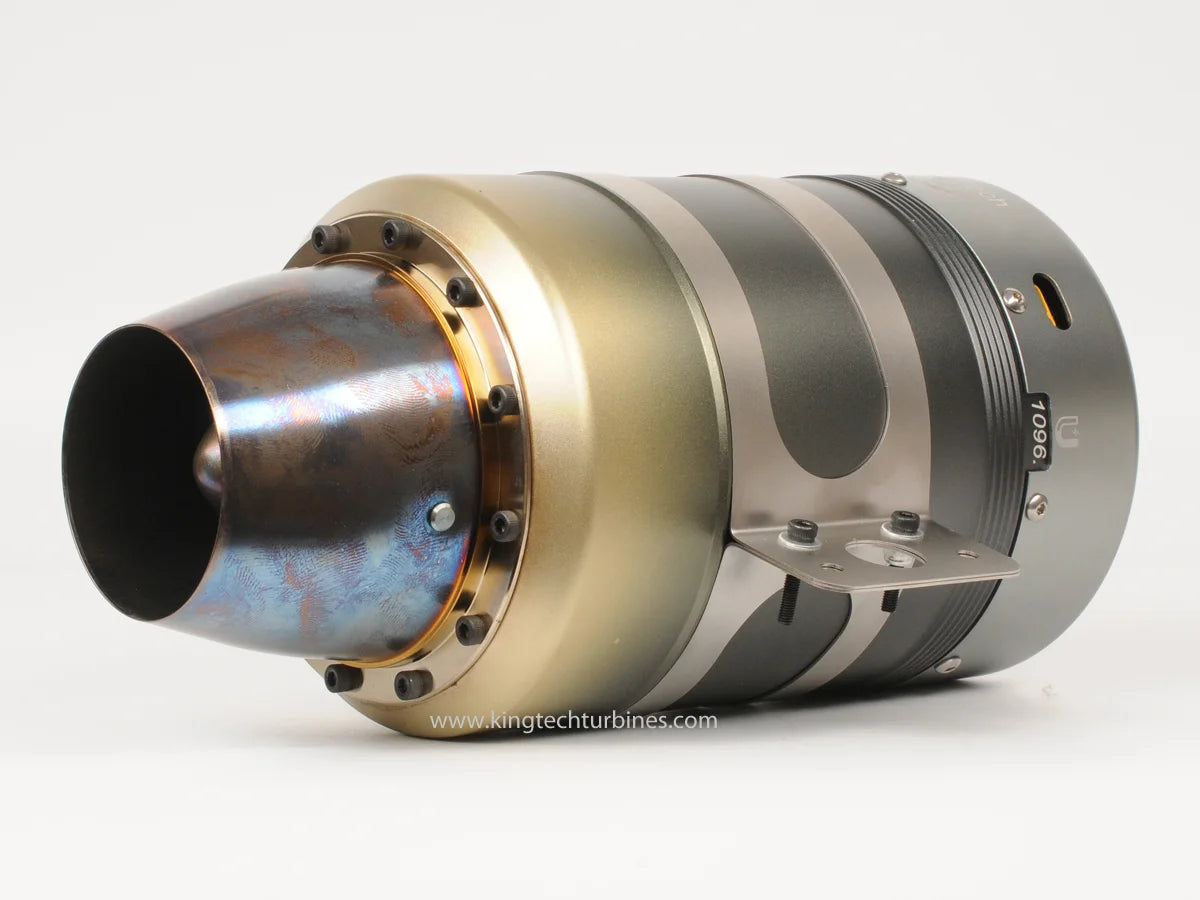

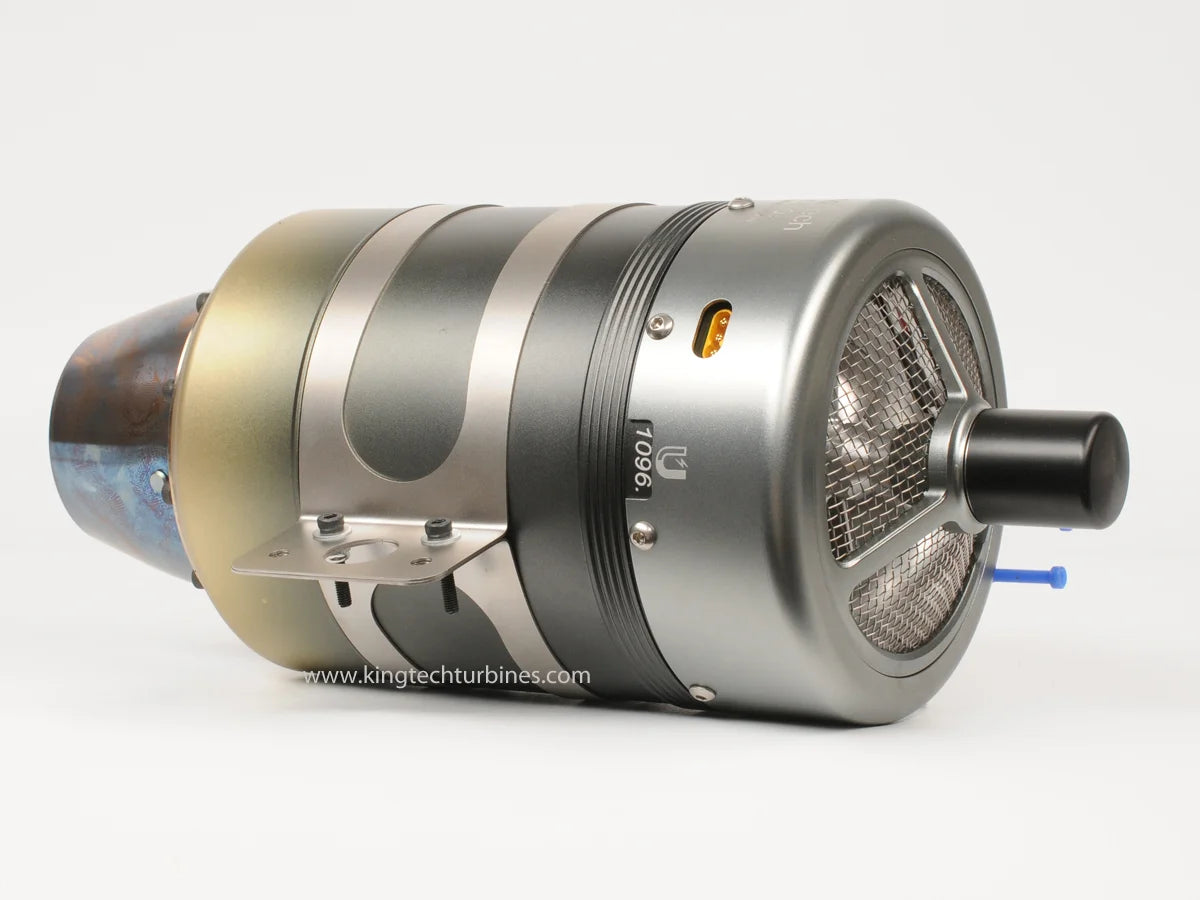

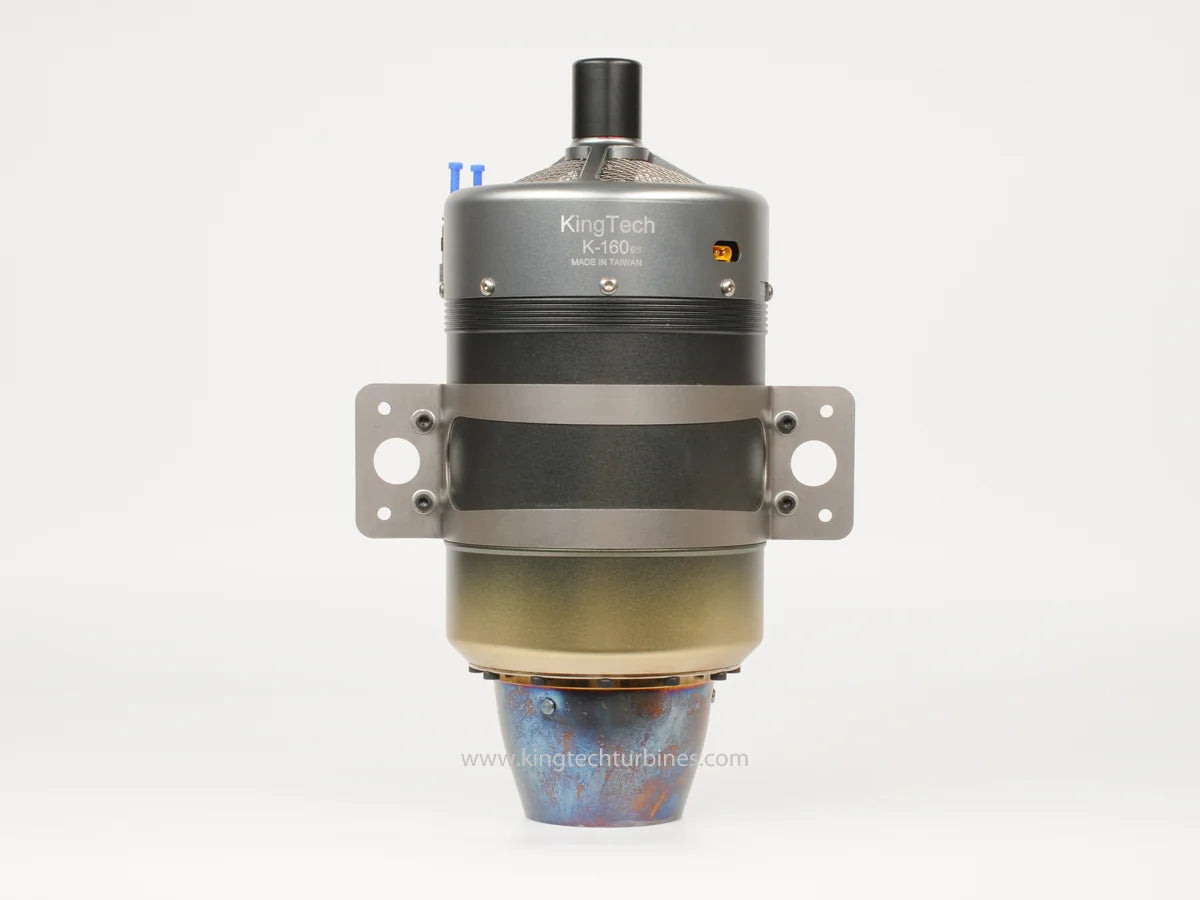

KingTech K160 G5 Turbine Engine (16kg thrust)
New G5 Fifth Generation
The G5 turbines have the KT-Bus system, only one cable to the turbine via XT30 connector, integrated fod screen, brushless starter.
FEATURES:
KingTech G5 utilizes SBus data transmission.
Engine/ECU integration, all operating parameters including total run time are all recorded into the engine.
The smaller and lighter external Data Relay Module (DRM) is responsible for all data, signal and power transmission.

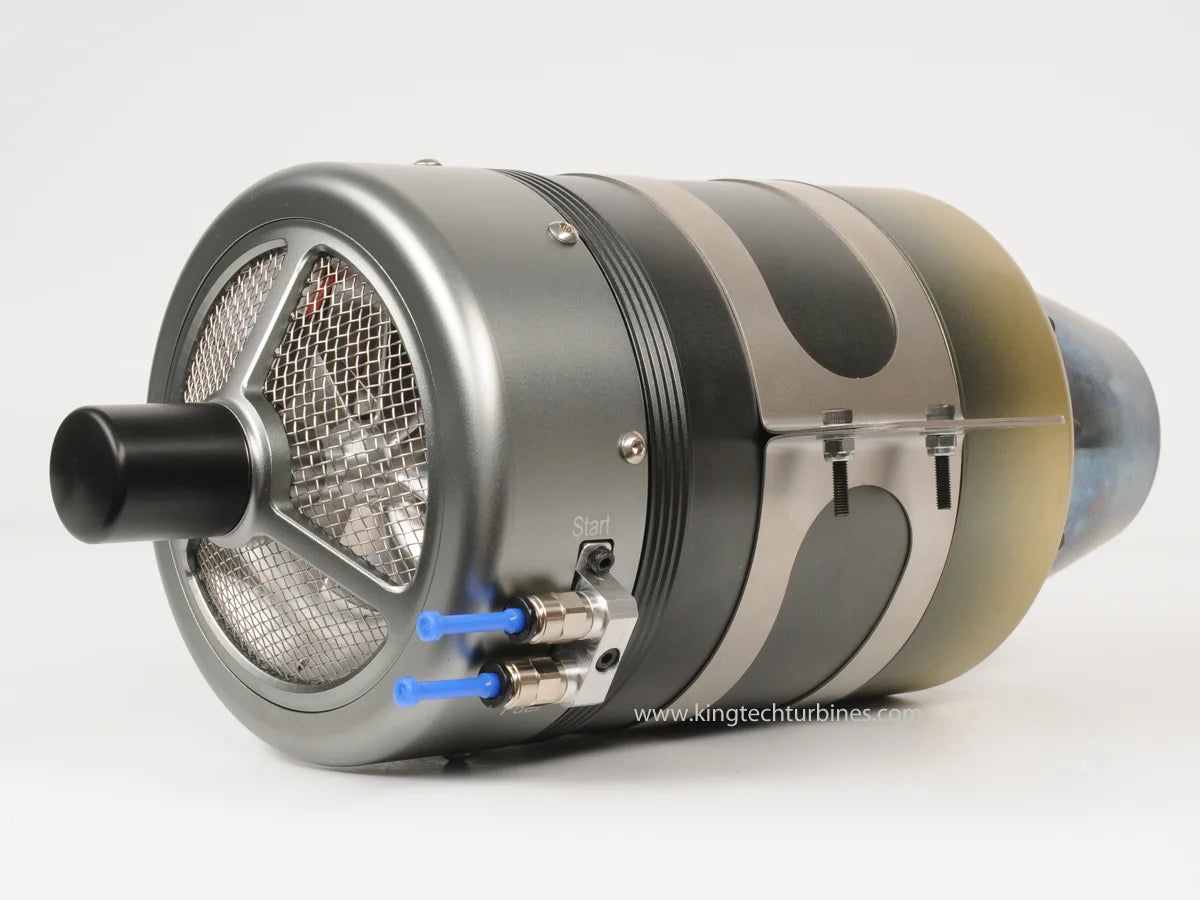

The G5 features a brushless starter motor for reliability and durability, built-in FOD screen is also integrated.
After a run cycle and receiver switched off, GSU will remain on only until cool down completes.
K-160G5 SPECIFICATIONS
Diameter: 103mm / 4.05”
Length: 251mm / 9.88”
Weight: 1540g / 3.39lb
Maximum RPM: 125000
Thrust: 16kg @ 15°C / 35 lb @ 59°F
EGT: 740°C max

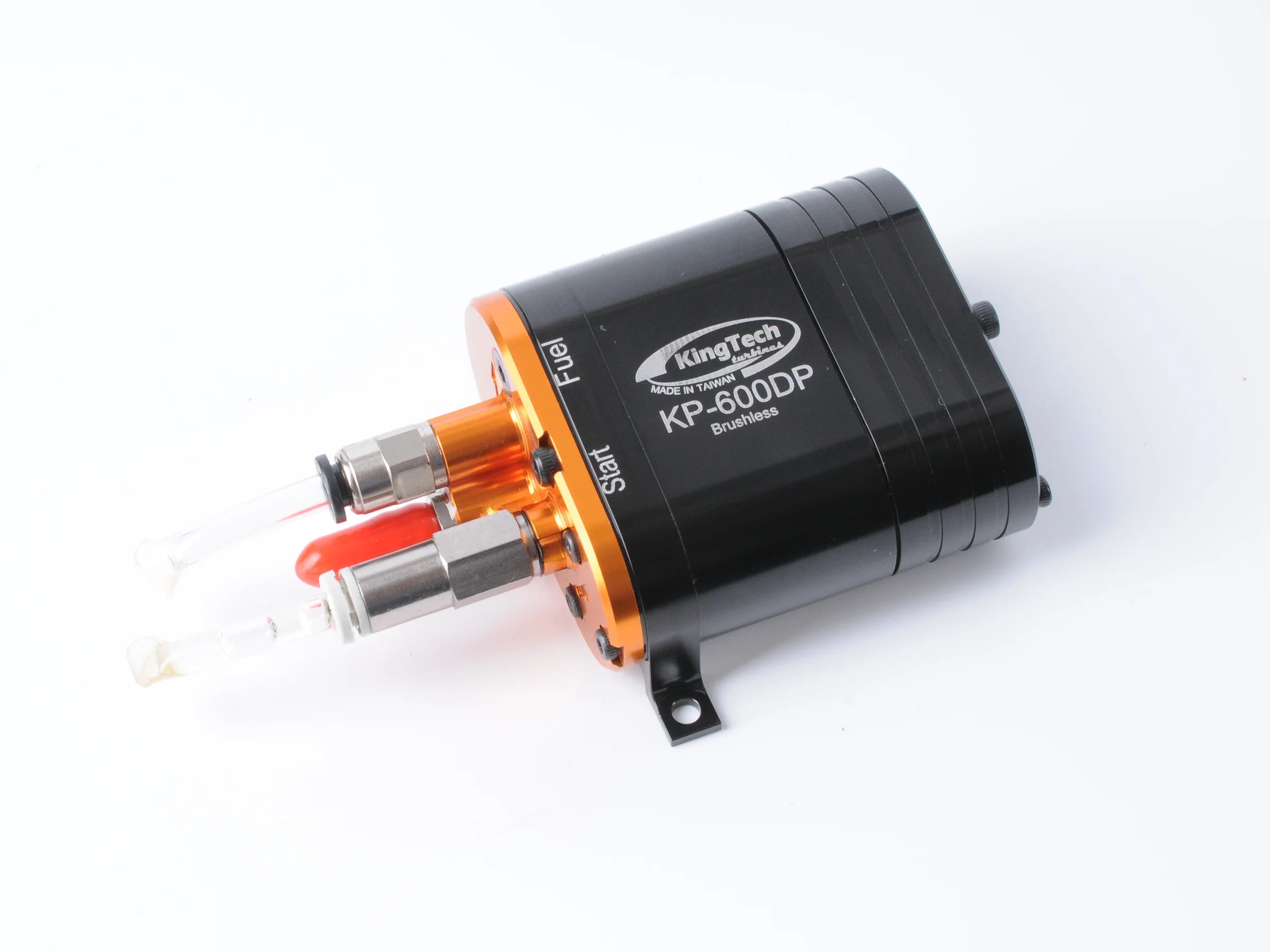

Pump Type: Digital Sbus brushless pump KP600DP
Battery: 11.1V Lipo ( At least 2200mah 35C )
Start Time: 10-15 seconds
Fuel consumption: 490g / min ( 17.28 oz )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Maintenance cycle: 25 hr

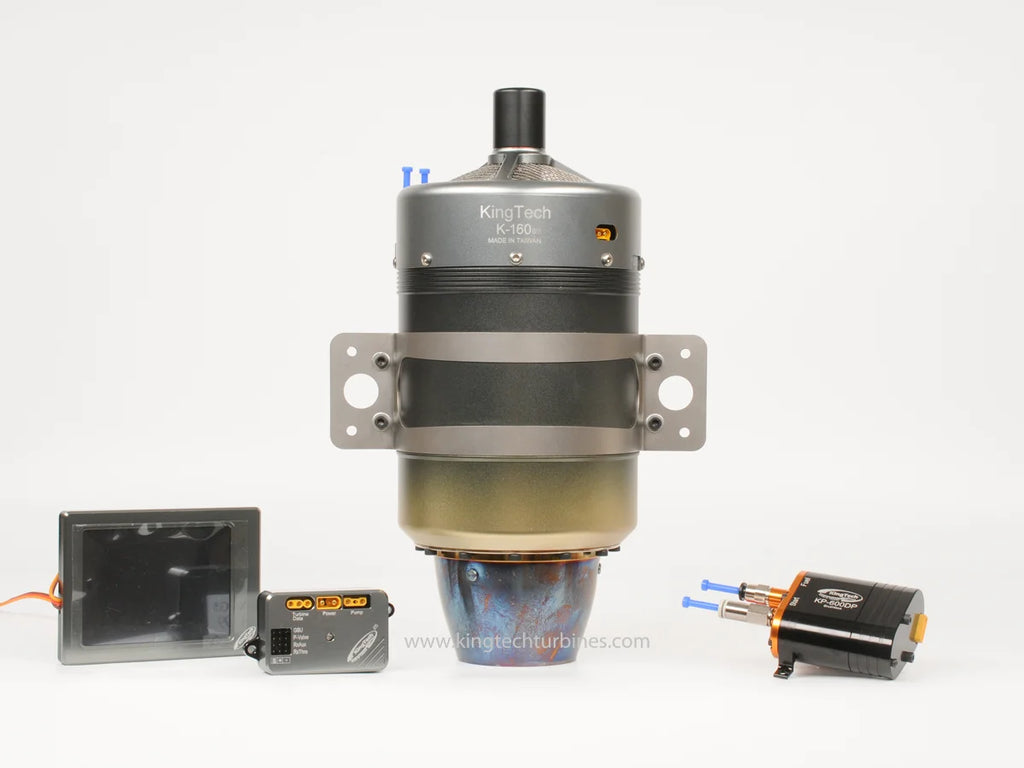

G5 MODEL COMPONENTS LIST
• Engine
• Data Relay Module (DRM)
• Ground Support Unit (GSU)
• Digital Sbus brushless pump KP800DP
• Wire Harness and Tubing Set
• Fuel Pump, Filter and Shout-off Valve
• Fuel Inlet Attachments
• Instruction Manual
