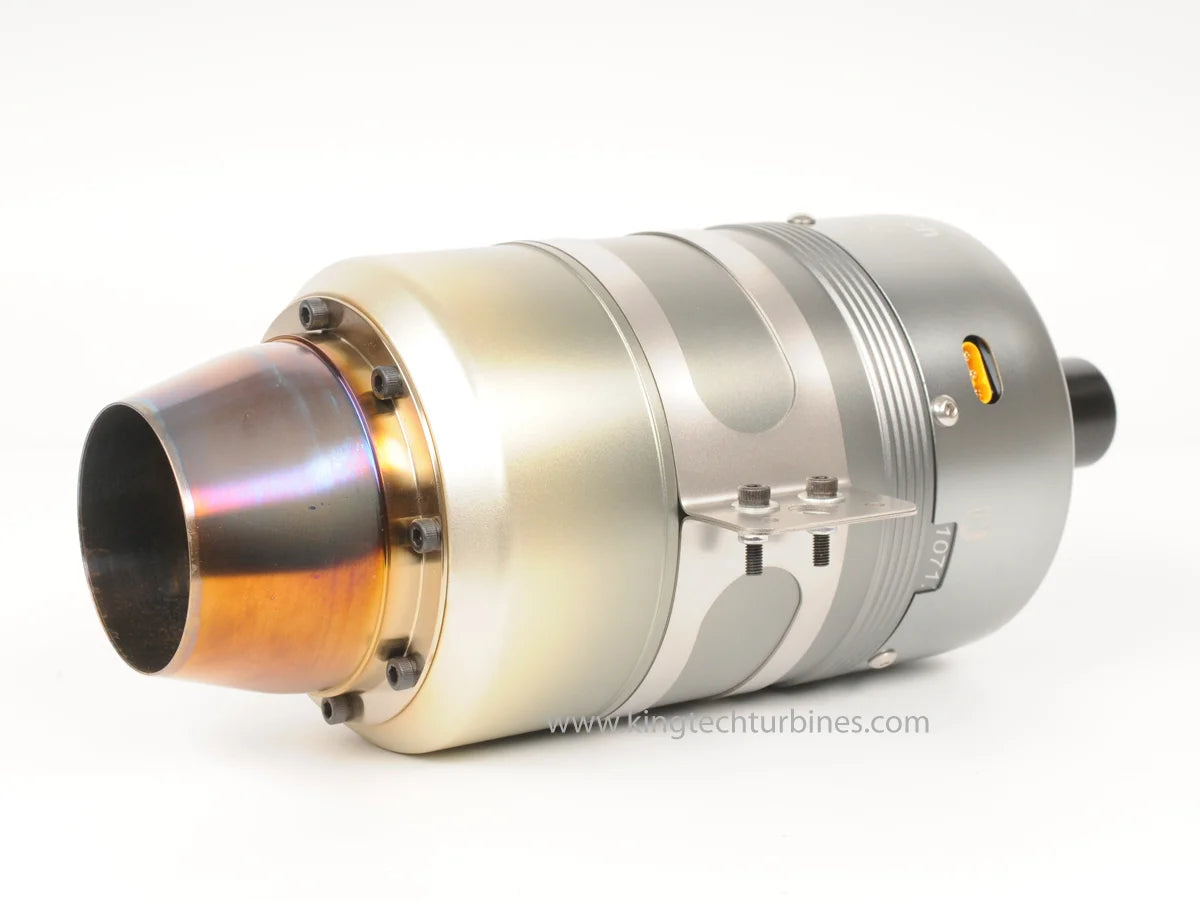

KingTech K102G5 Turbine Engine
New G5 Fifth Generation versions what's new:
Very fast starting behaviour between 9-15 seconds depending on the turbine.
Fast restart in the event of a flameout.
New electronics, new pump.
G5 is operated with Lipo 3S.
FEATURES:
KingTech G5 utilizes SBus data transmission.
Engine/ECU integration, all operating parameters including total run time are all recorded into the engine.
The smaller and lighter external Data Relay Module (DRM) is responsible for all data, signal and power transmission.

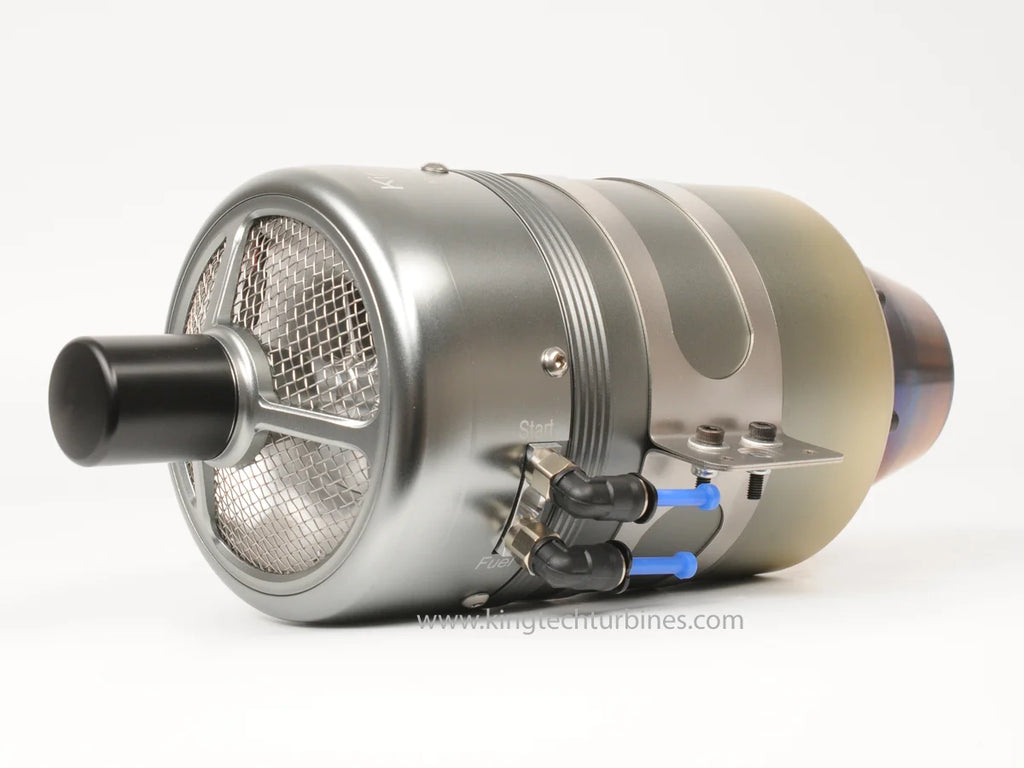

The G5 features a brushless starter motor for reliability and durability, built-in FOD screen is also integrated.
After a run cycle and receiver switched off, GSU will remain on only until cool down completes.
K102 G5 Specification:
Diameter: 84mm
Length: 203.3mm
Weight: 910g
Max. RPM: 160000
Thrust: 10 kg @ 15° C.
EGT: 750°C max
Pump type:Digital sbus brushless pump(KP500DP)
Battery:11.1v Lipo(At least 35C)
Start time: 10~15sec
Fuel consumption: 330 g / min
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Maintenance cycle: 25 hr

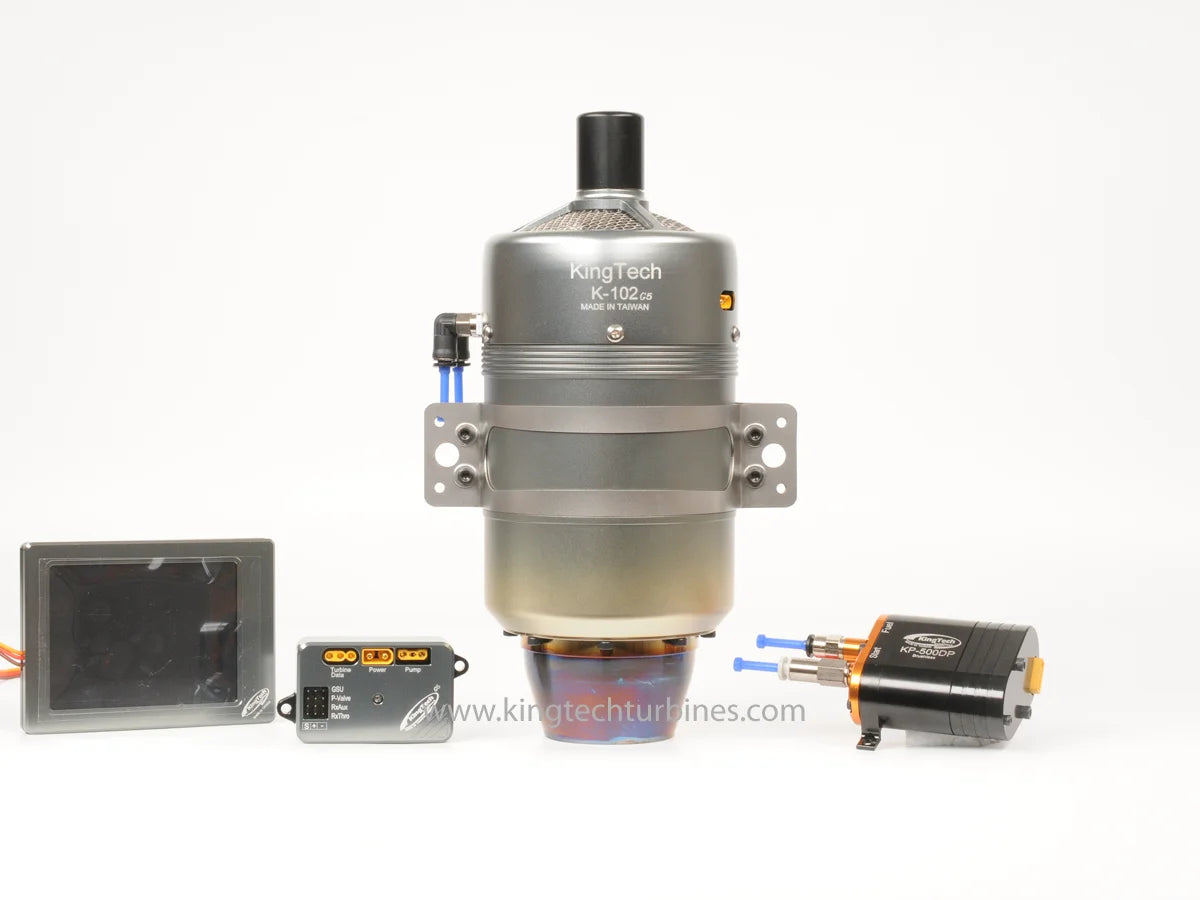

G5 MODEL COMPONENTS LIST
• Engine
• Data Relay Module (DRM)
• Ground Support Unit (GSU)

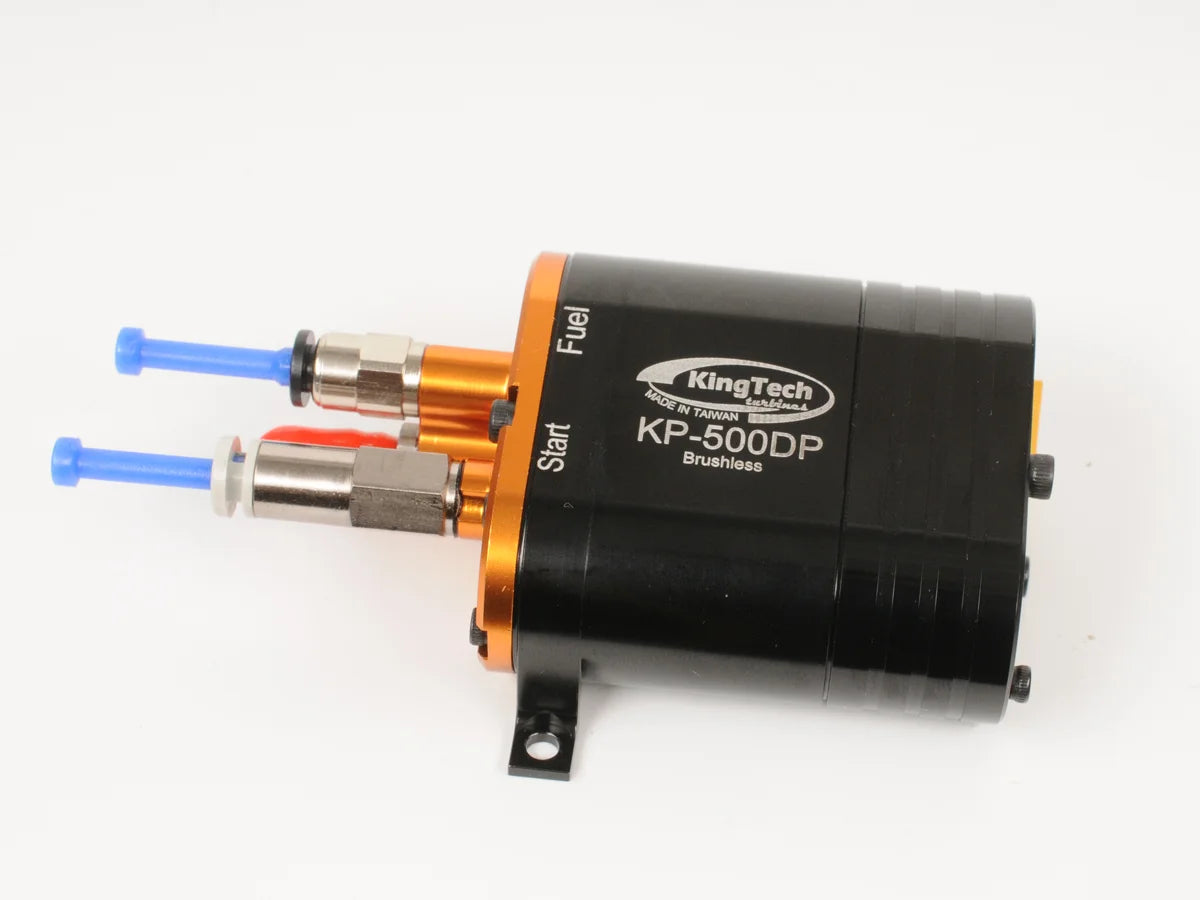

• Digital Sbus brushless pump KP500DP
• Wire Harness and Tubing Set
• Fuel Pump, Filter and Shout-off Valve
• Fuel Inlet Attachments
• Instruction Manual
Delivery time can vary at the moment so please check with us for more information.
