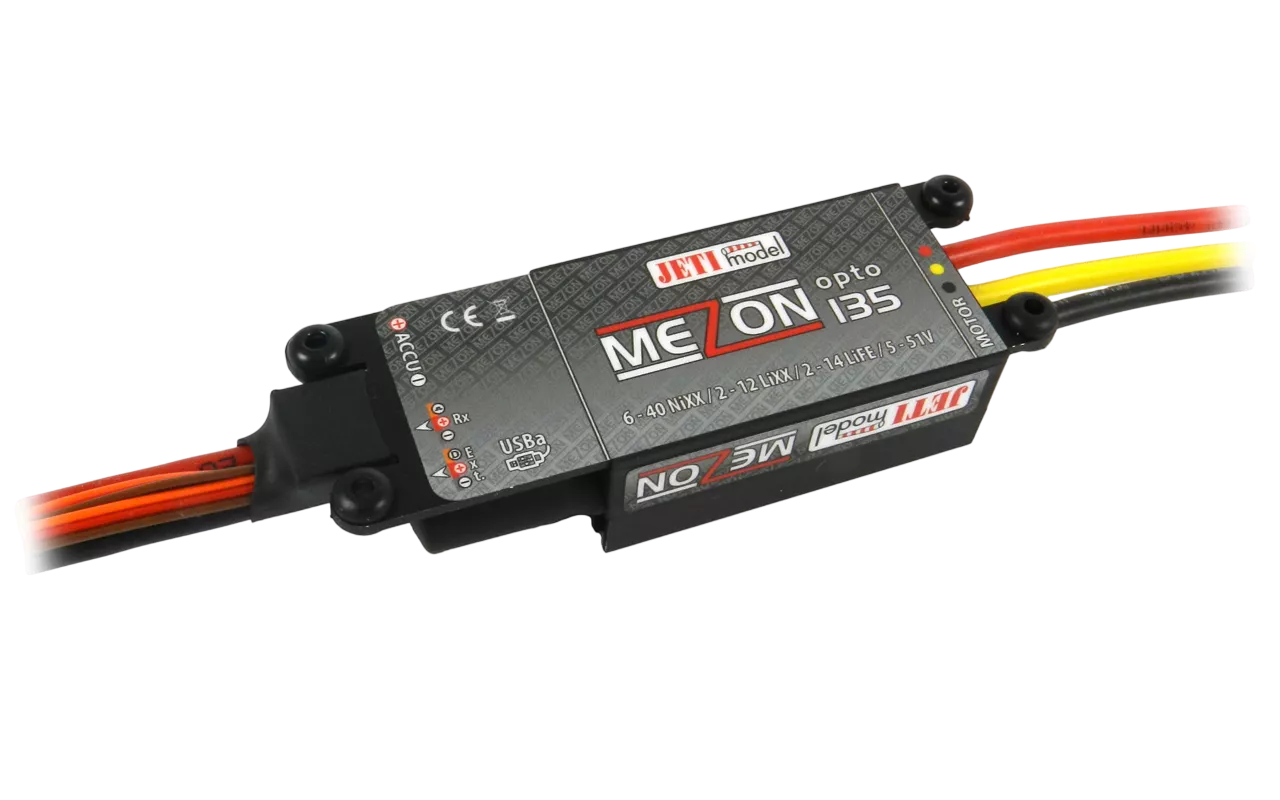

Jeti Mezon 135 opto ESC JM-135-O

The MEZON 135 Opto ESC is designed for high-current applications, featuring advanced telemetry and a compact, durable design. It provides excellent performance for demanding setups, with optocoupler isolation for superior safety and reliability.

Key Features

• High Continuous Current: Capable of handling up to 135A continuous current, making it suitable for high-power systems.
• Voltage Range: Operates within a voltage range of 5V to 51V.
• Battery Compatibility:
  • LiPo: 2-12 cells
  • LiFe: 2-14 cells
• Optocoupler Isolation: Provides the best possible separation between the drive circuit and the receiving system, enhancing safety. Note that this version does not include a BEC (Battery Eliminator Circuit), so a separate power supply for the RC system is required.
• Compact Design:
  • Dimensions: 36x24x109 mm
  • Weight: 145g
• Durable Alloy Housing: Designed to withstand the rigors of high-performance use.
• Real-Time Telemetry: Monitors and transmits key data to JETI DC/DS transmitters or JETI Box Profi, including:
  • Battery voltage
  • Battery current
  • Used battery capacity
  • Motor RPM
  • ESC temperature
• Data Recording: Capable of logging telemetry data for later analysis.
• Advanced Speed Control: Utilizes a new method for precise speed regulation.
• Higher Efficiency: Designed for improved energy efficiency and reduced heat generation.
• Firmware Upgradeable: Allows for updates to enhance functionality and performance.
• Programming Options:
  • JETI DC/DS Programmable: Configurable via JETI DC/DS transmitters.
  • JETI Box Programmable: Can also be programmed using the JETI Box.
• Operating Modes: Supports various applications including air, helicopter, and ship.
• Intelligent Protection Mechanism: Includes safeguards against overcurrent, overvoltage, and thermal overload.
• Active Coasting: Enhances efficiency and minimizes heat production.
• Wide Range of Adjustable Parameters: Offers extensive customization options for tailored performance.

Technical Specifications

• Continuous Current: 135A
• Voltage Range: 5 - 51V
• LiPo Compatibility: 2-12 cells
• LiFe Compatibility: 2-14 cells
• Dimensions: 36x24x109 mm
• Weight: 145g
• Optocoupler: Yes (no BEC included, separate RC power supply required)

The MEZON 135 Opto ESC is ideal for applications that require high power and precision, with advanced telemetry and safety features to support demanding performance needs.
