Description

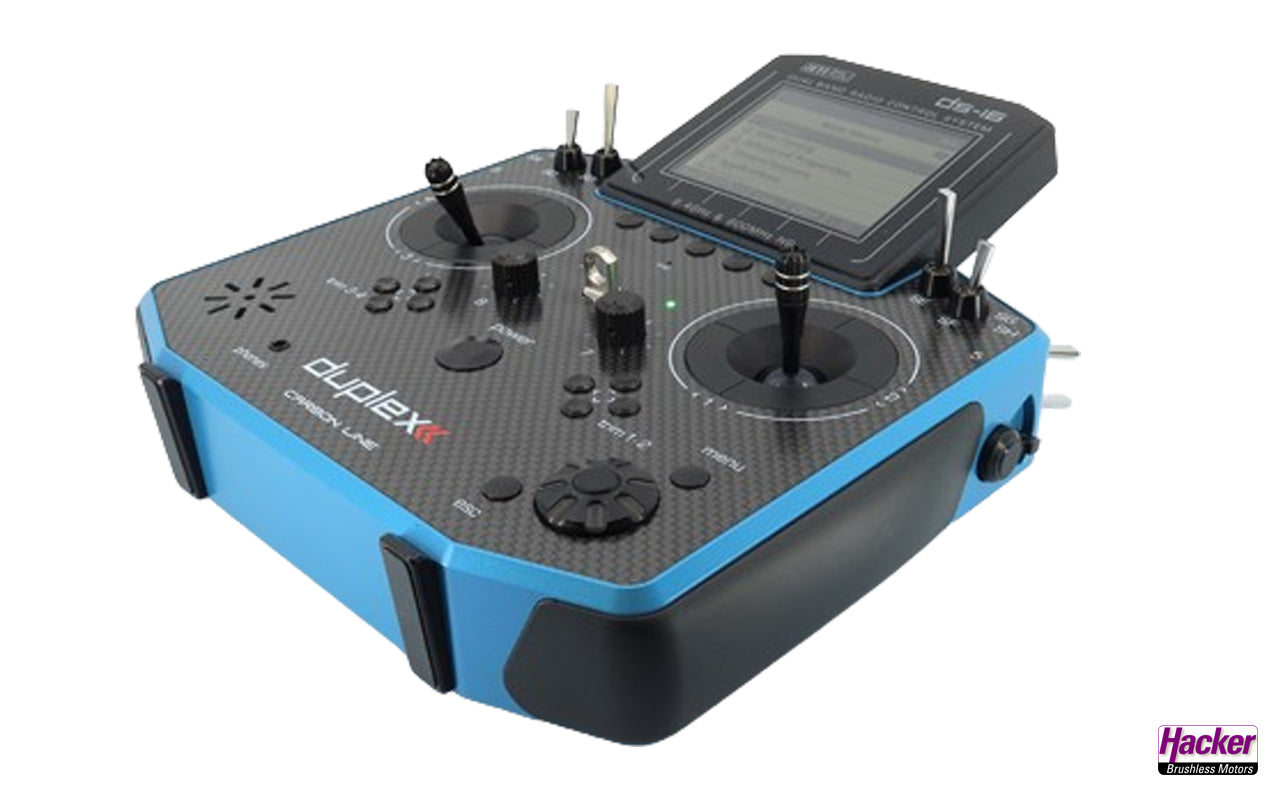

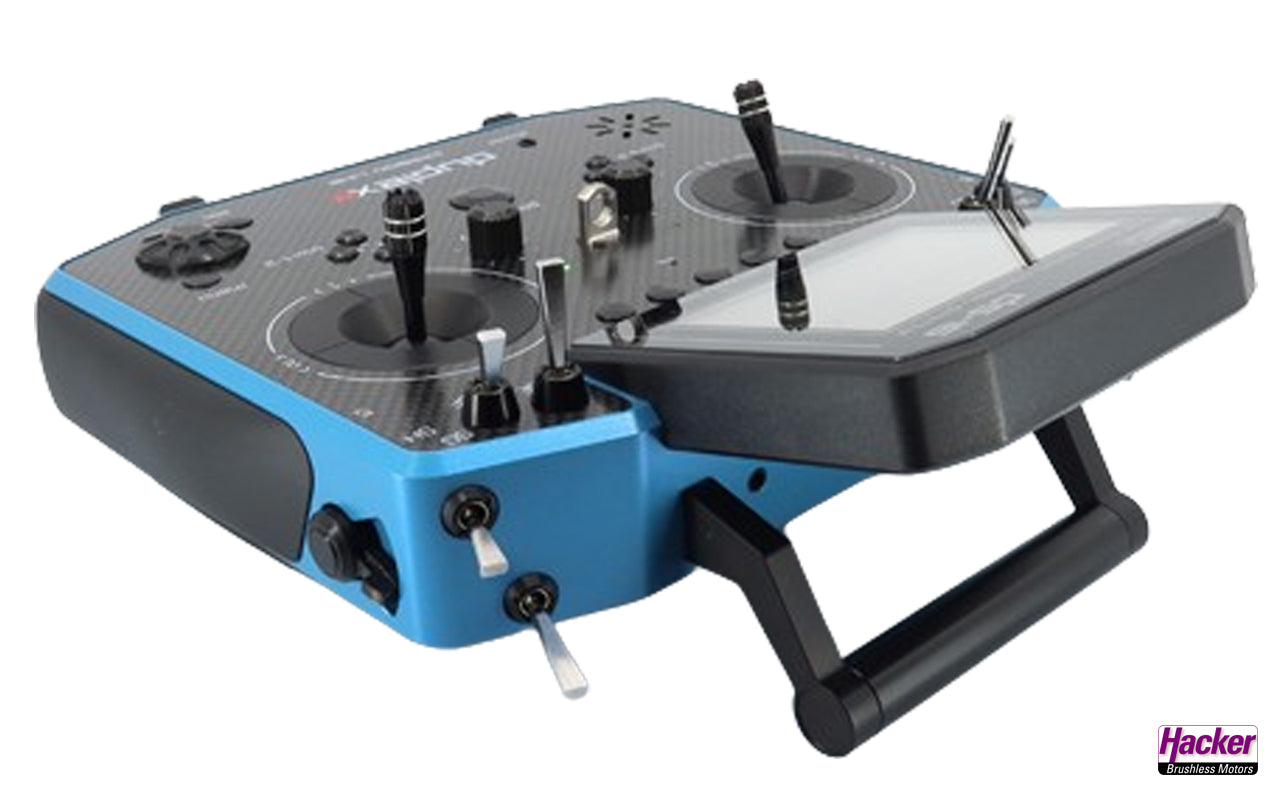

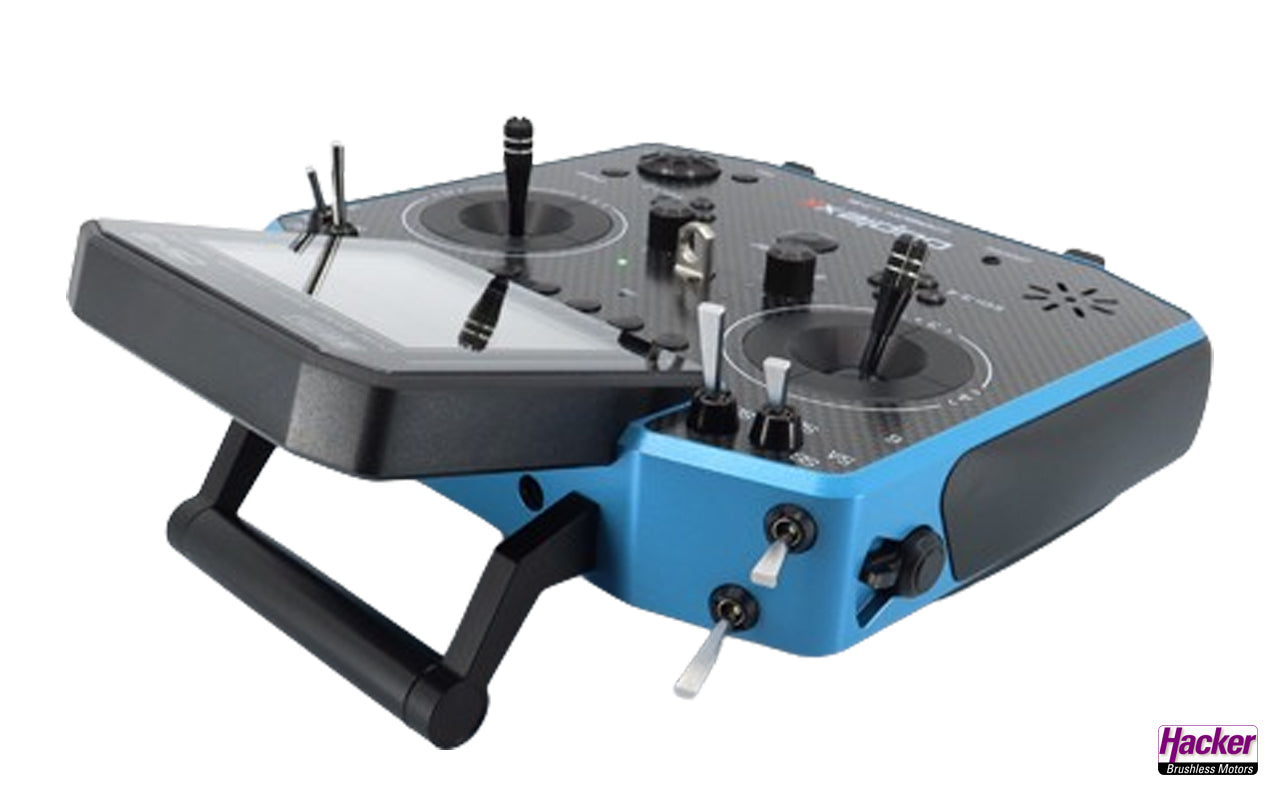

Jeti Duplex DS 16 Mk2 NG Carbonline Blue Transmitter Multimode Released May 2024
Precise RC transmitters benefit from all of the features that the Duplex 2,4GHz EX system can offer.
The transmitters contain an advanced user interface that allows you almost unlimited programming. On-line and off-line telemetry are available as well as alarms, custom audio playback etc.
The design goals were maximum utility, durability, and reliablity of their mechanical parts along with simple handling. The metal case, with its chemically resistant finish, provides maximum protection for the interior components. The straightforward case shape makes servicing easy. The control gimbals, ball bearing equipped with their magnetic Hall sensors are another revolutionary design concept used to make the DC/DS among the world’s most advanced R/C systems.
Purposefully placed at the top of the transmitter, the sunlight readable color LCD with its wide viewing angle offers nearly perfect visibility in just about any lighting condition. Thanks to its high resolution display and use of a relatively large number of graphic images it was possible to create a simple and intuitive setup procedure for displaying telemetric data.
The DUPLEX EX family of products have been equipped with an improved real-time telemetry system which can be viewed on the LCD transmitter display. The transmitter allows the setup of voice notifications, both preinstalled and user created, which can be related to telemetric values, user set alarms, or signals which have been assigned to conditions of various control elements.

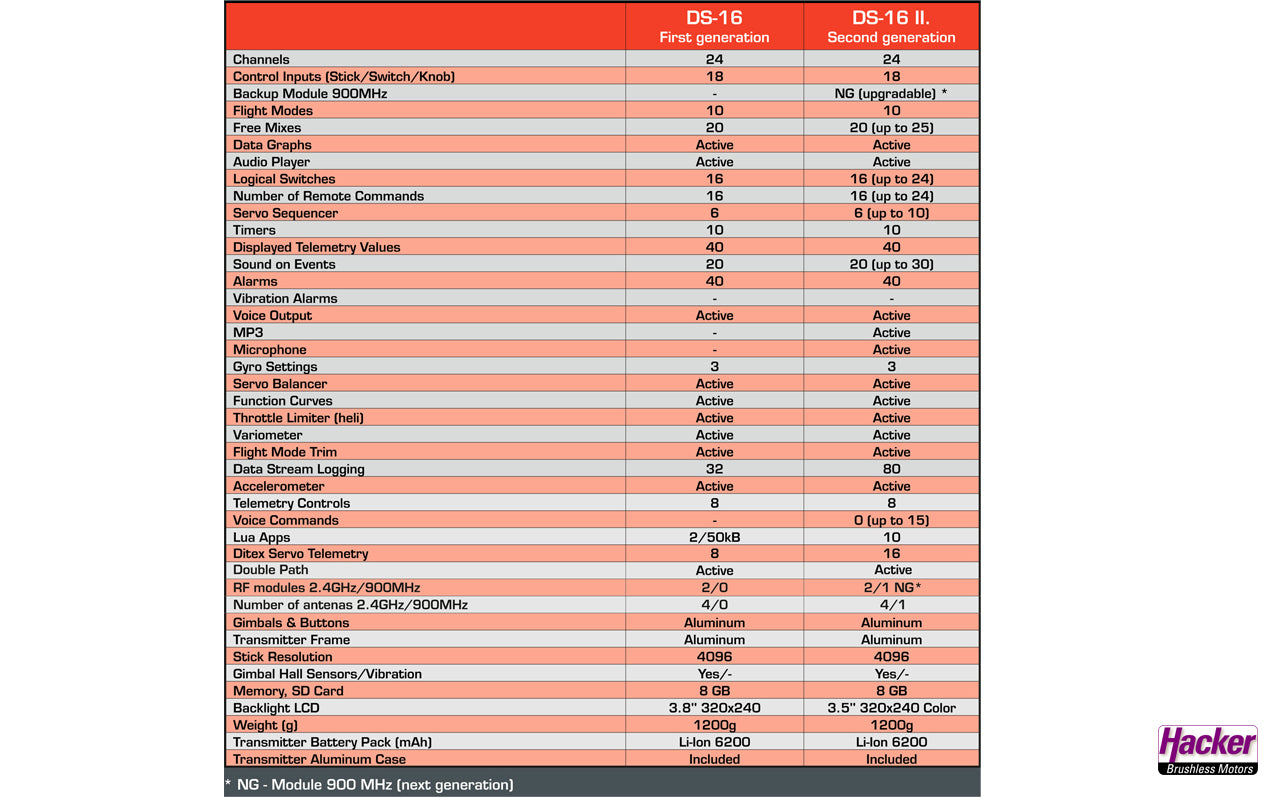

The second generation of the DS-16 transmitter A variant of the top RC transmitter from the JETI model.
A Color TFT LCD display placed on the top side of the transmitter offers perfect legibility at any lighting condition and a large surveillance angle. Thanks to the high display resolution and application of a relatively big ammount of graphic images it was possible to create a simple and intuitive setting procedure, especially for displaying telemetric data.
Duplex 2.4GHz – the DC/DS transmitters feature the Duplex 2.4GHz, frequency hopping, digital, data stream system, originally developed by JETI model in the Czech Republic. This system has been reliably used for many years.
Duplex 900MHz NG (Next Generation Optional) - the DC-16 II transmitters feature a backup wireless system for unmatched data transmission safety and reliability. t is an independent, second transmission system in a second frequency range. If this system is used, the model can continue to be controlled even if the 2.4GHz band is disturbed (e.g. by radio relay, during copter flights for television broadcasts, etc.). The 900MHz backup system only becomes active when this occurs. So it essentially serves to expand the safety in high-quality models. Of course, this backup system can be activated or deactivated separately for each model. It is always used together with the 2.4 GHz transmission system, not individually.
Built-in Telemetry – from the start, the DC/DS transmitters were designed and built with many attractive features and include the full integration of all Duplex telemetry sensors.
Transmitters - the DC/DS designs use premium quality materials and emphasize state-of-the-art appearance and user comfort.
Precise Gimbals – the transmitter gimbals are equipped with Hall sensors and ball bearings for precision movement with an almost unlimited lifespan.
LCD Display – color 3.5" TFT LCD display with 320 x 240 resolution which is highly visable under any light conditions.
Li-Ion Battery – provides a proven and reliable energy source with a high capacity (6200mAh) and a long service life.
Easy Charging – simply connect the wall power supply, optional car charger, or any 12v Dc power supply to the transmitters charge port. The DC/DS may also be charged through the USB to PC interface. The charging progress is shown on the DC/DS display.
Integrated Antenna – the antennas are located behind fully integrated covers in both the DC/DS cases for protection against mechanical damage.
Large Memory – Internal SD card for storing models, sounds, and telemetry data.
USB Connector – convenient connection to your PC. Fast firmware & sound upgrades, telemetry data downloads.
Fast Navigation – 3D wheel-style interface combined with function keys allow for speedy navigation within the DC/DS menu.
Digital Trims – fully programmable trims and a revolutionary automatic trimming function.

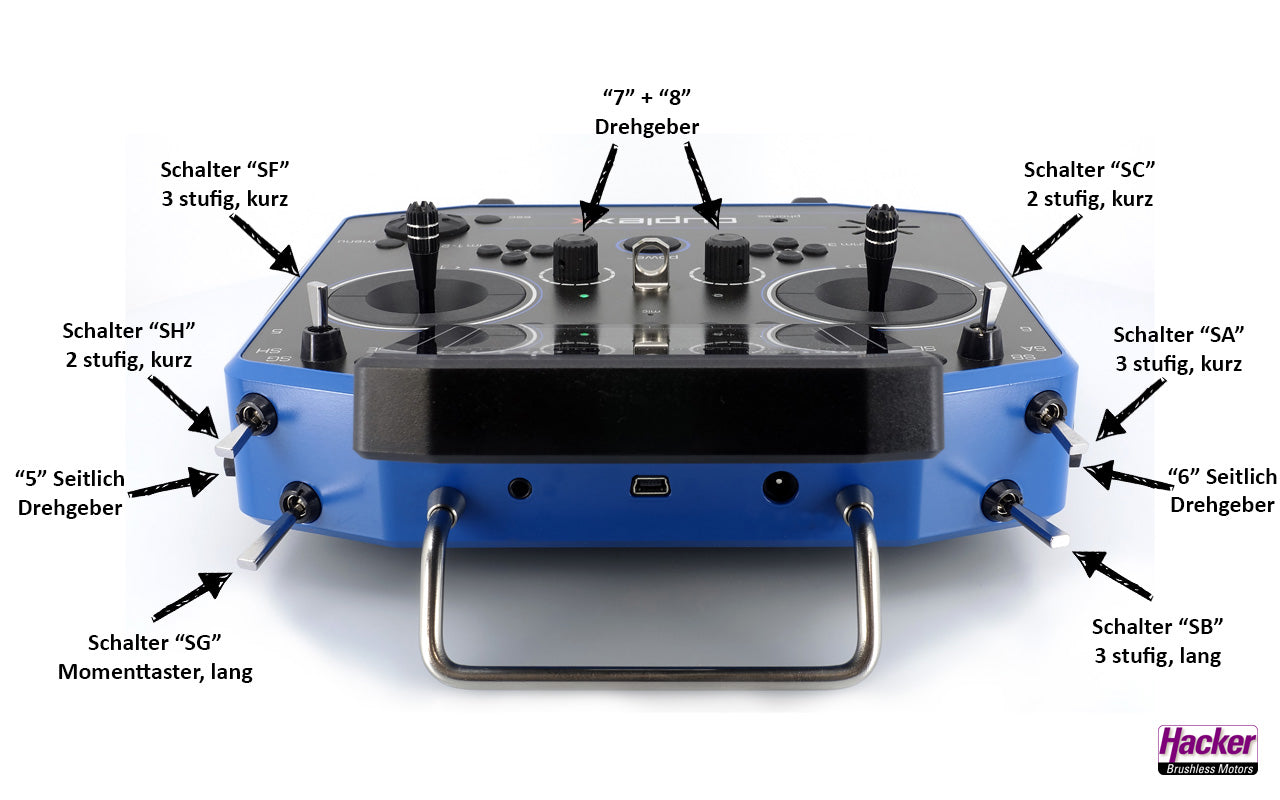

Swappable and Assignable Switches – all of the switches on the DC/DS transmitters (2- or 3-position) can be easily moved and assigned to create a custom configuration that works best for your application.
Programming – the logical and intuitive transmitter firmware is designed to be simple to use. Just follow the step-by-step screens. The creation of a new model can be accomplished with just a few easy steps.
Sounds/Alarms – the DC/DS transmitters are equipped with audible alarms and also allows the use of user-recordable alarms and sounds to keep you fully informed while also keeping distractions to a minimum.
Integrated microphone with voice recognition capability - using the integrated microphone you can easily prepare your own audio files. Furthermore, you can teach the transmitter to respond to several voice commands.
Delivery contents
JETI Handheld transmitter DS-16 II Carbon Line Black Multimode (delivery state mode 2, control mode very easy to change), receiver REX 10, transmitter battery installed, charger for transmitter battery, strap and stable carrying case.
