JETI DUPLEX 2.4EX Receiver R4H JDEX-R4H 80001245
Please Note: This receiver is not EX Capable so cannot be programmed.
Technical specifications:
Frequency band: 2.4GHz
Number of channels: 4
Telemetry: Jeti Basic telemetry (not EX, showing values on the JETI box / emulation)
Operating temperature: -10 ° C to + 85 ° C
Compatible protocols: Servo signal output only, no PPM / UDI / EX Bus

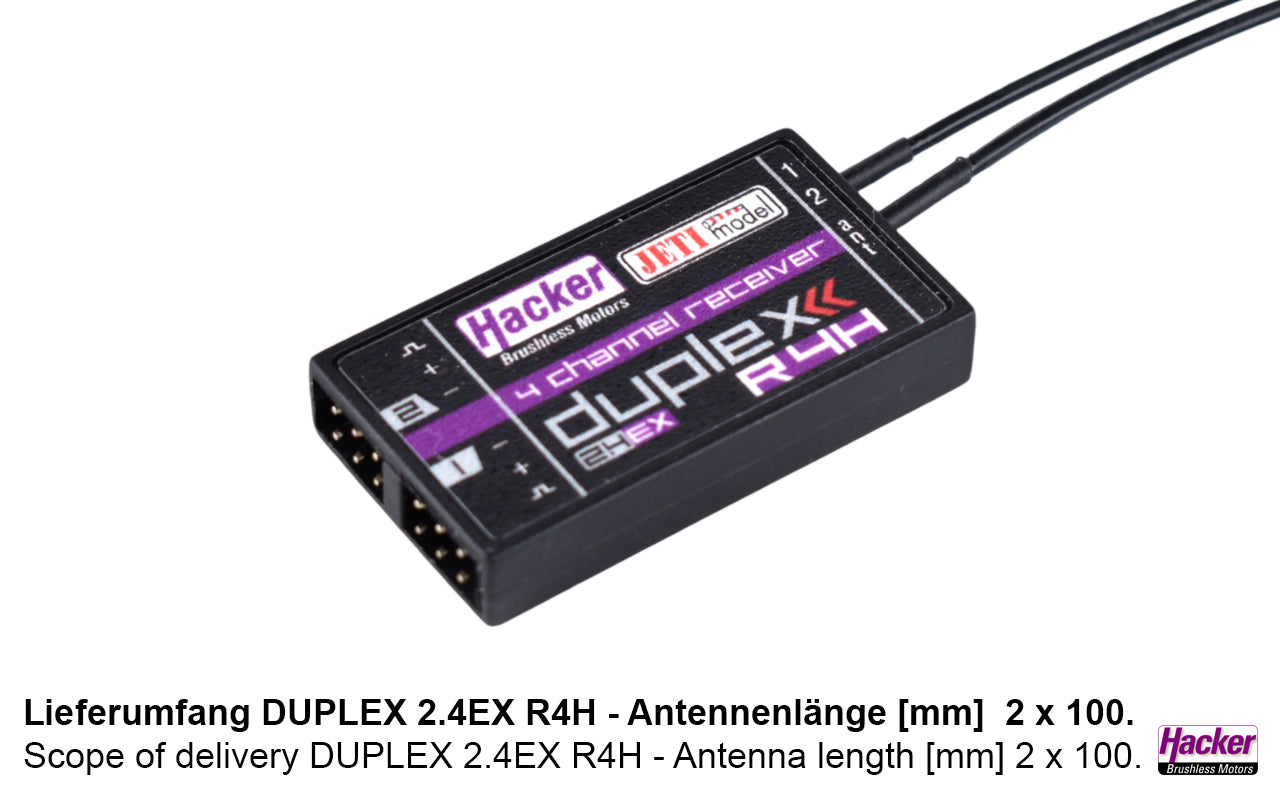

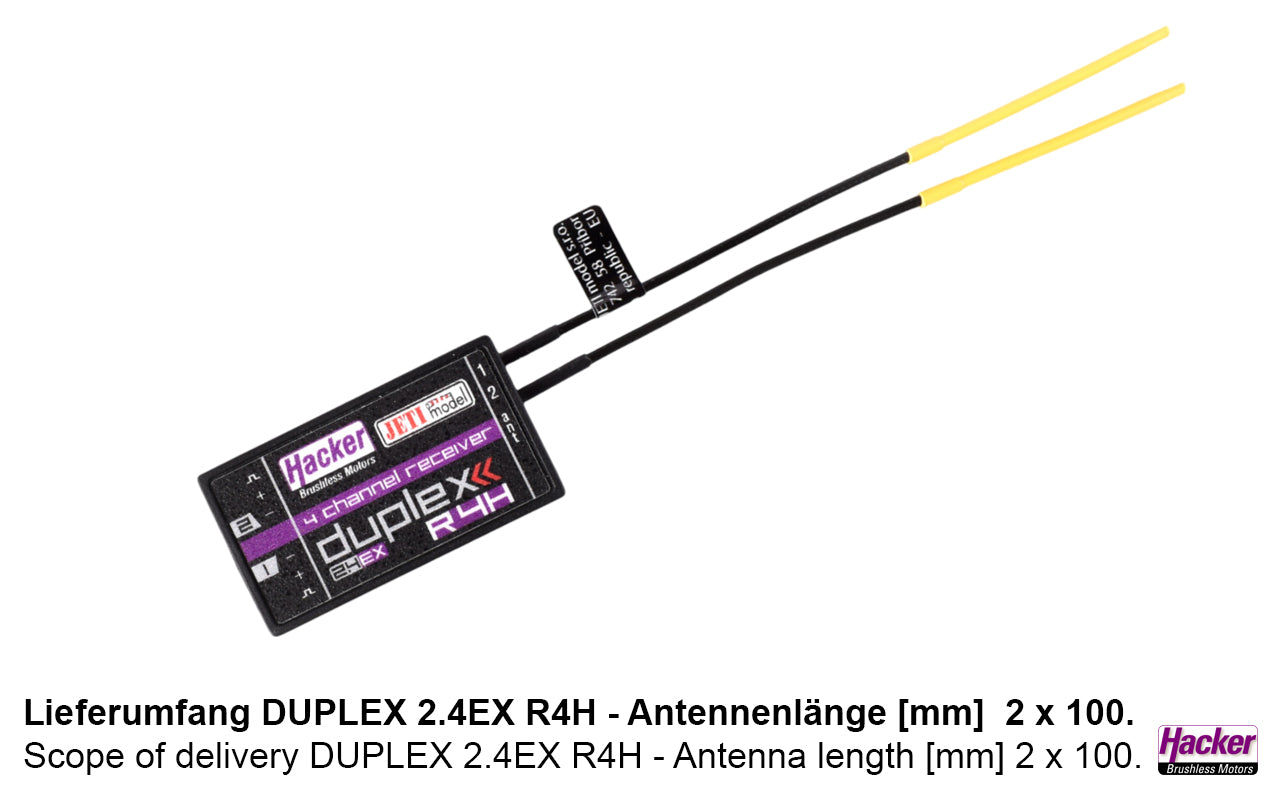

Antenna length: 2x100mm
Operating voltage: 3.2V - 8.4V Current
consumption: approx. 30mA
Satellite connection: No
Output power: 15 dBm
Sensitivity: -106 dBm
Dimensions: approx. 40x22x7mm
Weight: approx. 7.6g
