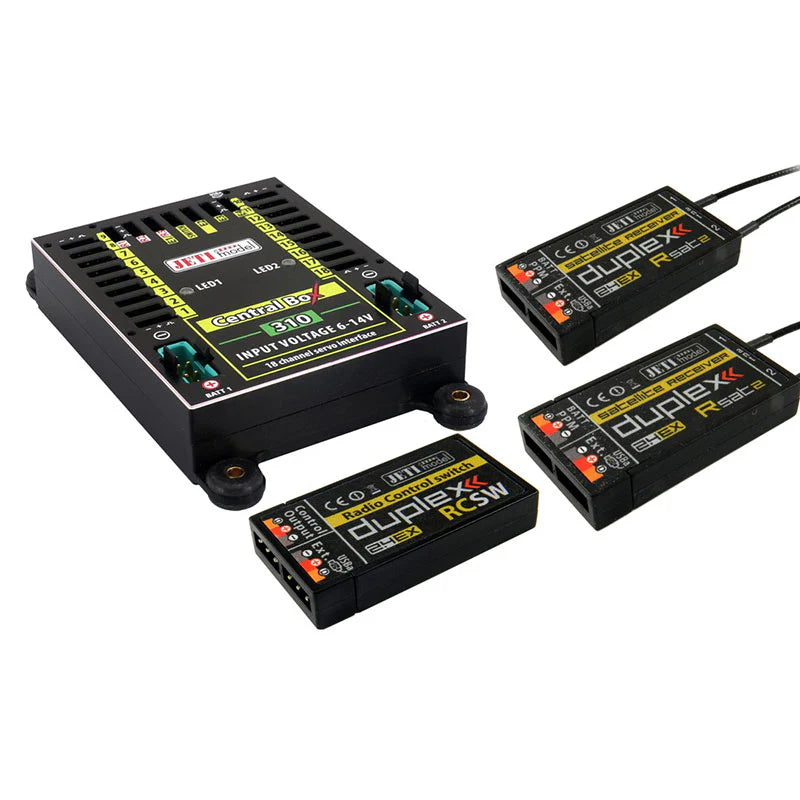

JETI Duplex 2.4EX Central Box 310 + 2 RSat2 + RC-Switch
Product description and features
Central box 310 has full unreduced power from the internal BEC on the servo outputs.
• Adjustable powerful BEC for voltage stabilization
(connection of standard or HV servos)
• DITEX servo telemetry support
• Possibility to connect up to 3 receivers with serial communication
• built-in Expander function with the possibility of independent connection
of up to four JETI EX sensors
• Input for magnetic switch or RC switch
• Power supply batteries connected via MPX connector
• 100Hz mode of servo outputs (10ms period)
• EX telemetry support (measurement of voltage, current, capacity, temperature, etc.)
• Easy settings changes via DC/DS transmitter („Device explorer“)
• Robust metal construction with mounting holes
Delivery contents
1 JETI Duplex 2.4EX Central Box 310, 2x Rsats2, 1x R/C switch
| Weight [g] |
135 |
| Dimensions [mm] |
66x107x21 |
| Sustained current [A] |
25 |
| Number of channels |
18 |
| Telemetry |
Yes |
| Operational temperature [°C] |
-20 up to 75 |
| Supply Voltage [V] |
4 up to 14 |
| Satellite receiver support |
Yes |
| Batteries LiXX |
1 -3 |
| Voltage BEC [V] |
5 up to 8.4 |
| Idle current [µA] |
80 |
| Number of battery inputs |
2 |
| Voltage stabilization |
Yes |
| Peak current (2s) [A] |
230 |
| Protected servo output |
No |
