Jeti DSM ESC J-DSM-ESC

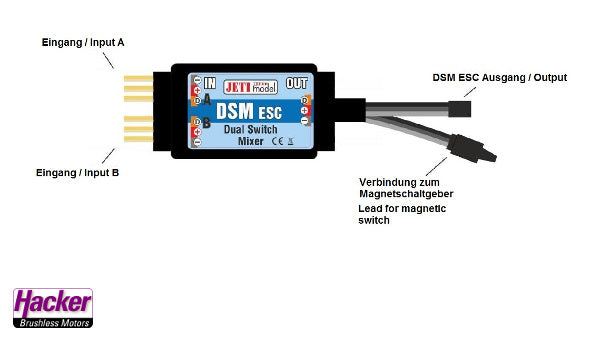

This electronic circuit is used to power the receiver and servos in the model. The DSM ESC BEC combines the power of two speed controller / controller or a combination of receiver battery (backup battery) and a BEC regulator to supply the Rx and the servos. ON / OFF switching is done here with the known magnetic switch actuator.
Technical Data
Input Voltage [V]: 5 - 8,4
Output current (duration) [A]: 10
Output current (impulse) [A]: 20
current in OFF-position [µA]: 130
Temperature [°C]: -10 bis +85
Weight [g]: 24
Dimensions [mm]: 38x20x7
