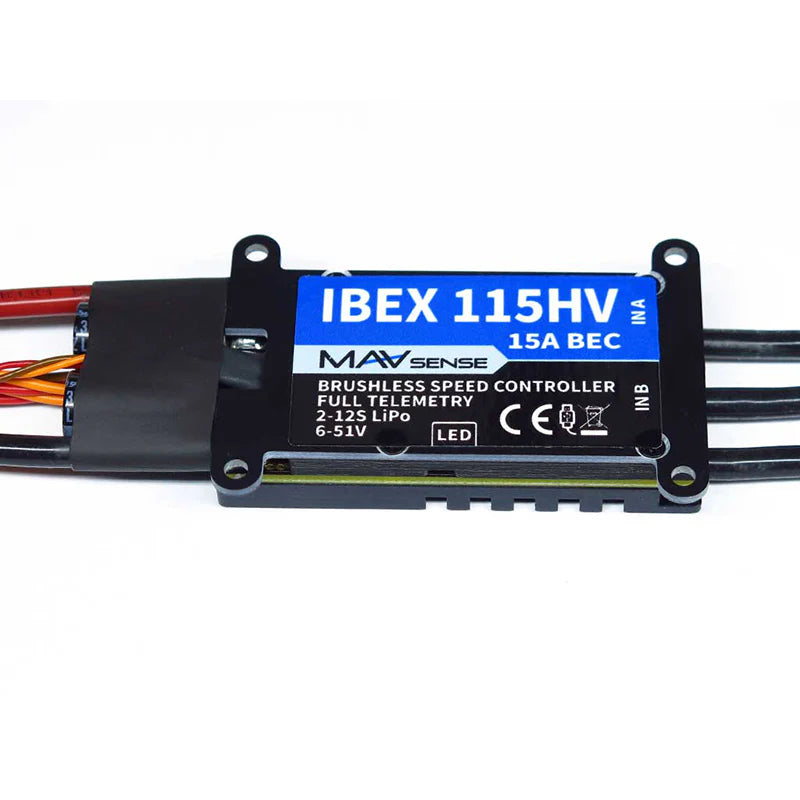

IBEX 115 HV 15A BEC Advanced Speed Controller With Integrated Telemetry
High power speed controller for BLDC motors offers continuous current up to 110A at a voltage of up to 51V (12S LiPo). It offers a high-quality stabilized voltage output (BEC) with a continuous current of up to 15A and the possibility of connecting an external shutdown switch.
The IBEX product line represents advanced speed controllers for use exclusively in RC airplane models. With integrated telemetry and various possibilities of optional user configuration, the controllers offer high efficiency, low weight and precise motor control.
Features
- Small dimensions combined with high power motor control.
- A powerful switching BEC that offers a continuous current of 15A (30A max). BEC circuit protection against overcurrent and overheating is included.
- BEC voltage setting in steps of 0.1V.
- Over- and undervoltage protection, overtemperature protection, motor-stall protection.
- Configurable current limiter.
- Safety shutdown when the throttle impulse is lost.
- Configurable acceleration, timing, electromagnetic brake etc.
- Low acoustic noise due to high frequency switching.
- Automatic telemetry detection: Duplex EX, Hott, MSB, S.Bus2. Alternative firmware with Spektrum SRXL2 telemetry support.
- Telemetry (RC system dependent): voltage, current, power, capacity, temperature, RPM, energy.
- Telemetry min/max values are logged.
- Configuration through the transmitter or external terminal (JETIBOX/SMART-BOX).
- Firmware updates via USB interface using the MAV Manager
- Languages: CZ/DE/EN/FR/IT.
Additional functions
- Option to activate the synchronous rectification (Active Freewheeling) for more accurate motor response and less heating of the controller during aerobatics.
- Flawless operation with high power multi-pole motors and the vast majority of all other motor types.
- Propeller positioning using a Hall sensor.
- Optional external motor identification chip combined with a temperature sensor.
