Description

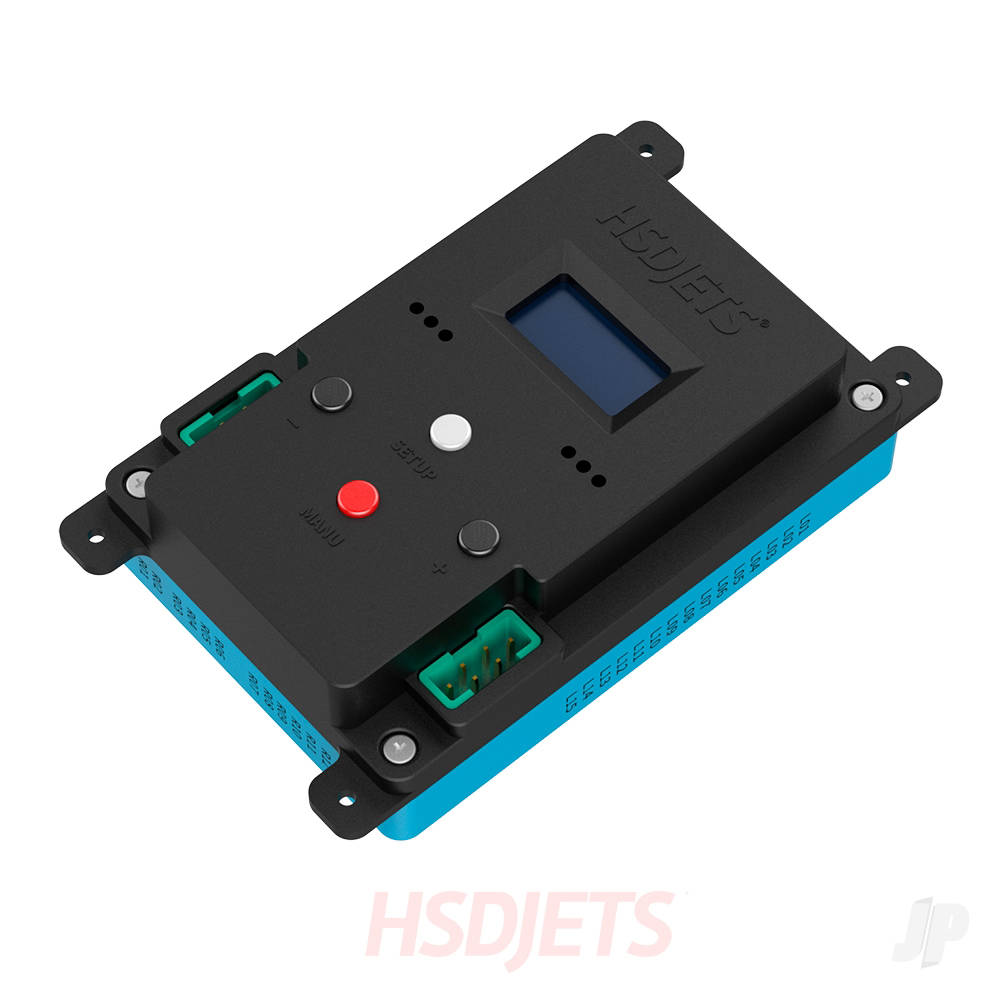

HSD Jets MFC-2085 Control Box DS Version HSD47010100F
Dual power management system. Electric pneumatic dual system. 13 channels supported. Supports S-BUS bus function. Dual reception.
Two-way power management system 2S, 7.4V input voltage design, single way 20A maximum electric current output, can meet the requirements of most aircraft in today's market and it has a function that the battery automatically and seamlessly switches.
0.96 inch OLED display screen with scroll menu preview internal settings. The main interface can display battery voltage value, power on time and other information.
The intelligent landing gear timing sequence system can adjust the operating current of the landing gear and can set one key to retractable cover plate and landing gear.
Electric / pneumatic brake control functions are cross-compatible with each other at the same time, which supports slow start brake and makes the aircraft slide more stable.
With lighting control system, it can be turned on and off through the setting of remote control system programming and five lighting flashing mode are arbitrarily called.
With landing gear control system, it can extend or shorten the closing or opening time of the cover plate, it can also set the secondary action of the cover plate, and it can also adjust the servo stroke of the cover plate.
Can set the positive and negative reversals of the servo, includes ailerons, elevator, directions, flaps and covers.
With the function of adjusting the neutral position of the servo. Includes ailerons, elevator, directions and flaps.
The stroke of ailerons, elevator, directions and flaps can be adjusted by the MFC-2085 multi-function flight controller.
With flight trajectory offset system. According to the characteristics of the aircraft, can set the elevator offset of the accelerator and flap to offset the curve and let it adjust arbitrarily.
supporting tail lighting system that can be adjusted with the accelerator to change the lighting effect.
Supporting dual S-BUS bus(lines) functions, arbitrarily set 8 function channels, one signal line to complete the required functions.

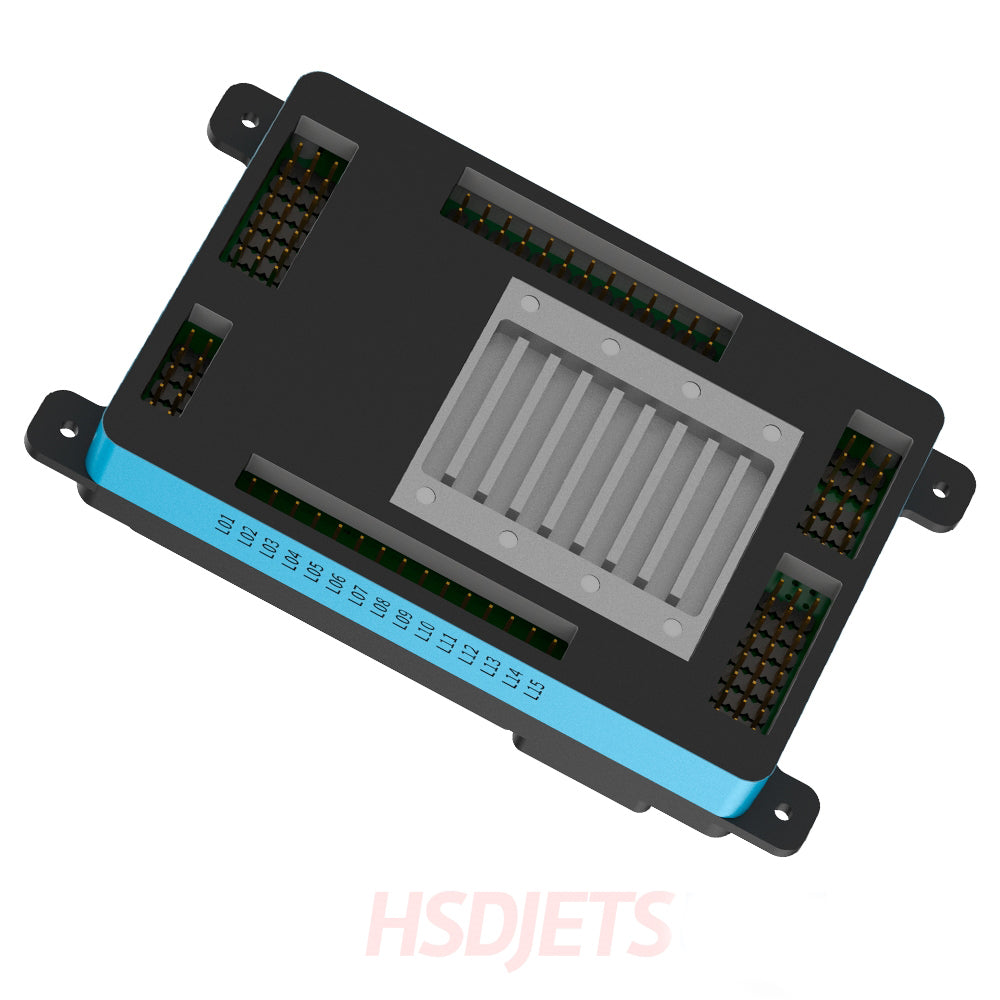

The back line design; The line from the bottom of the installation position, the upper surface only two UBEC power input socket, no see other signal lines in surface, easy to install, simple and beautiful.
The output voltage of the receiver can be adjusted by programming. Two types of voltage choices can be used. The receiver and the steering gear can adjust the voltage range separately.
Simultaneously compatible with electric landing gear system and pneumatic landing gear system.
Specification:
| Working Voltage | 7.4V, 2S for DC (Battery input) |
| Receiver Output Voltage | 6-7.4V adjustable |
| Servo Output Voltage | 6-7.4V adjustable |
| Electric Air Valve Voltage | 6V |
| Electric Landing Gear Voltage | 7.4V |
| Electromagnetic Brake Voltage | 7.4V |
