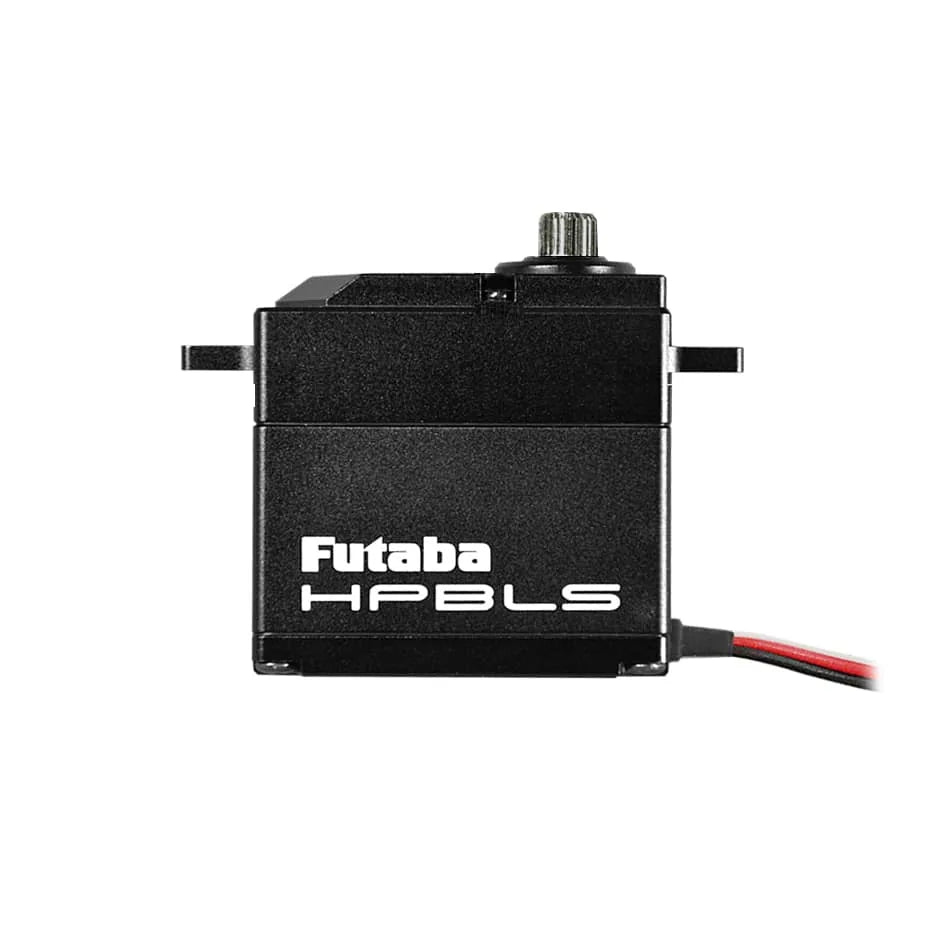

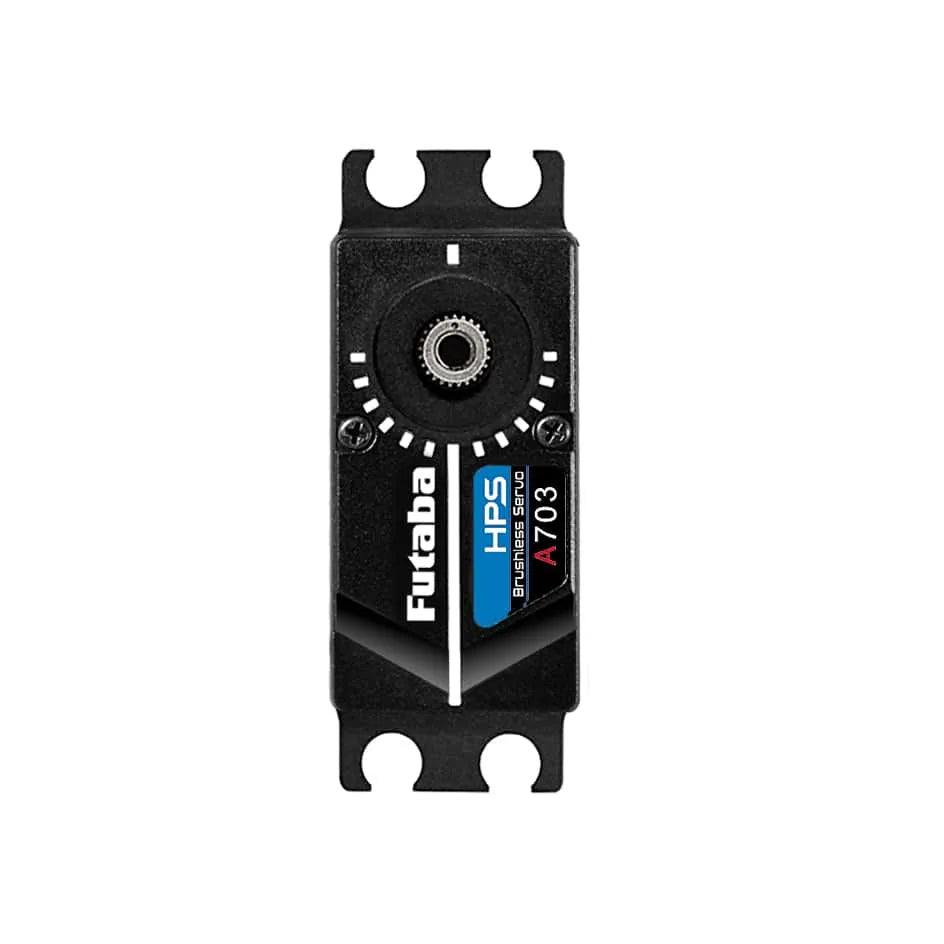

Futaba HPS-A703 Standard Brushless Servo PWM/S.Bus2 74.0kg 0.12s 4.8V - 7.4V FUT05102723-3
HPBLS series servo for large aircraft that achieves amazing torque and low power consumption. Supports S.BUS2
FEATURES:
– For all-purpose giant scale airplanes.
– Programmable/HV Brushless Servo.
– Custom New high power Brushless Motor.
– Suggested upgrade for BLS172SV/177SV
– Programmable and compatible with S.Bus and S.Bus2 systems.
– Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.
– Final gear material is Stainless Steel.
– Upper/middle/bottom: Aluminium Case
What's in the Box
- HPS-A703 Standard Brushless Servo
- Horns
- Mounting Hardware
SPEED:
0.13 sec/60°at 6.6V
0.12 sec/60° at 7.4V
TORQUE:
61.0 kgf/cm at 6.6V
847.17.4 ozf/in at 6.6V
66.0 kgf/cm at 7.4V
916.61 ozf/in at 7.4V

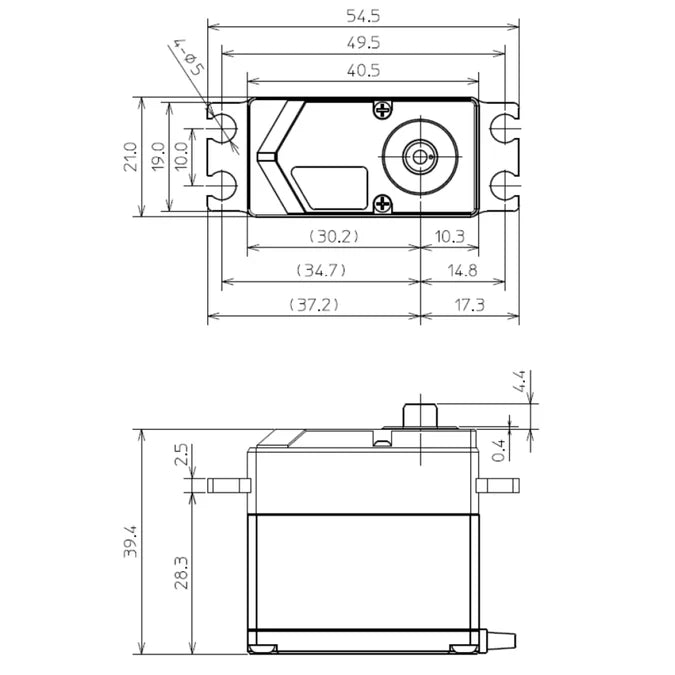

SIZE:
40.5 mm x 21 mm x 39.4 mm
1.59 in x 0.83 in x 1.55 in
WEIGHT:
82 g
2.89 oz
RATED VOLTAGE:
DC 6.0V-7.4V
OPERATING VOLTAGE:
DC 4.8-8.4V
NO DRY BATTERY OR BEC USE
