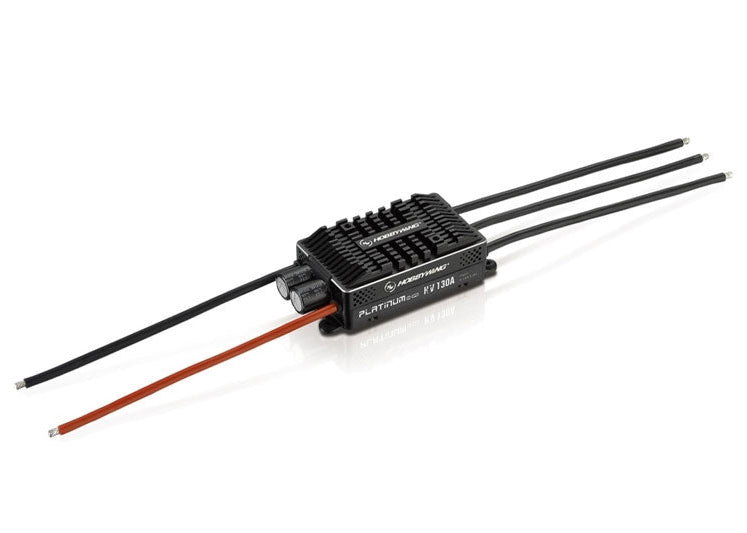

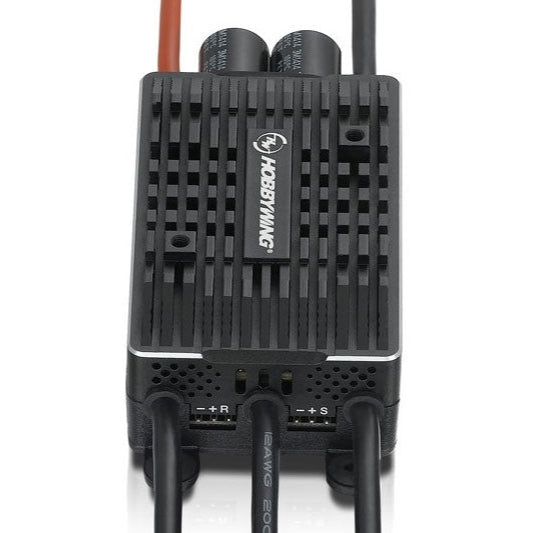

Hobbywing Platinum Pro 130A HV OPTO V4 Speed Controller HW30209201
Platinum V4 serial products allows the motor to start extremely smooth and avoids tail-drift issues that helicopters experience. The start-up time is adjustable from 8 to 25 seconds, this will definitely create a perfect starting point for every flight.
High-performance 32-bit processor with a running frequency of 72MHz combined with advanced algorithm optimizes the speed governing. Together with the adjustable governor parameters guarantee every pilot a precise control experience.
This Platinum V4 ESC has “Brake Disabled, Normal Brake, Proportional Brake and Reverse Brake” four brake modes. The brake amount is adjustable in normal brake mode; in proportional brake mode, the brake force will be automatically allotted based on the position of radio throttle stick; in reverse brake mode, the motor rotation can be changed via a spare transmitter channel.
Multiple protection features include ESC thermal, capacitor thermal (HOBBYWING-patented technology), ESC overload, throttle signal loss(or Fail Safe), and low voltage cut-off effectively prolongs the service life of the ESC. The Built-in Arc proof circuit effectively eliminates Arc/Spark produced at the “powering-on” moment and prolongs the connectors‘ lifespan.
HobbyWing Platinum HV 130A OPTO V4 Features:
- Super Soft Start-up
- Excellent Motor Speed Governing
- DEO Technology
- Built-in Spark-proof Circuit
- Four Brake Modes
- Multiple Protections
- Upgradeable ESC firmware
Spec Check:
- Brushed/Brushless: Brushless
- Cont./Peak Current: 130A/160A
- Input Voltage: 6-14S LiPo
- BEC Output: No
- Input Wires: Red-12AWG-150mm*1/Black-12AWG-150mm*1
- Output Wires: Black-12AWG-100mm*3
- Input Connectors: No
- Output Connectors: No
- LCD Program Box: Supported
- Wi-Fi Module: Supported
- Size: 101.0x45.5x27.0mm
- Weight: 154g
