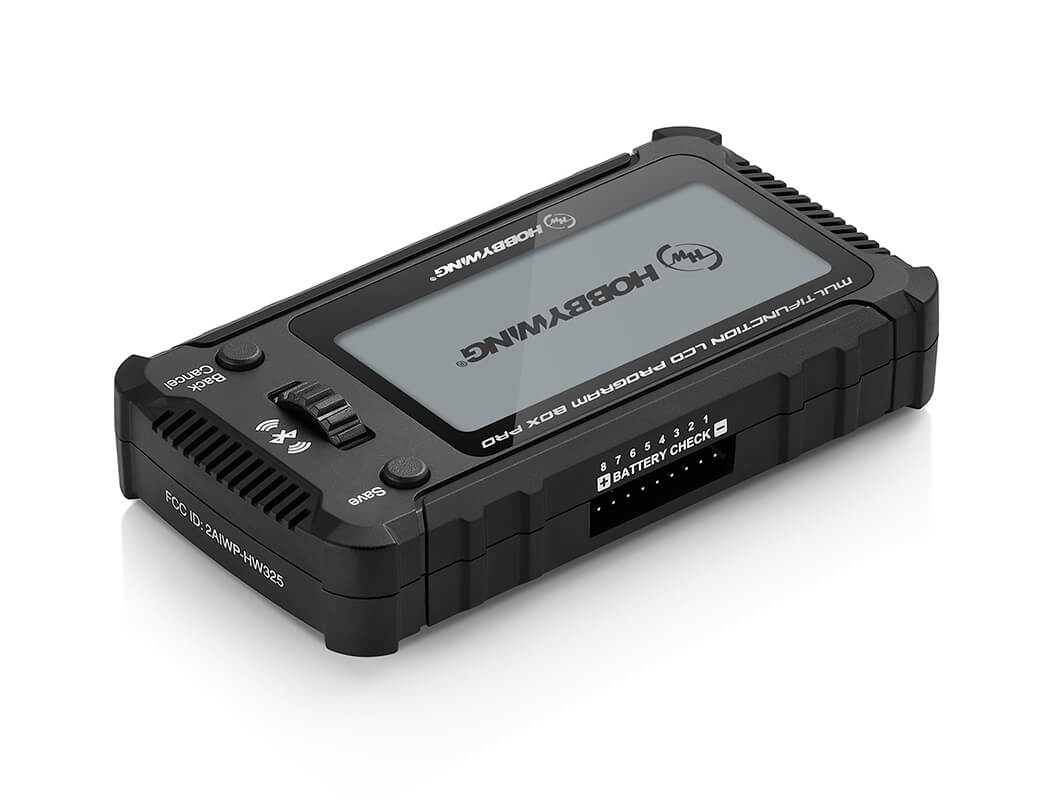

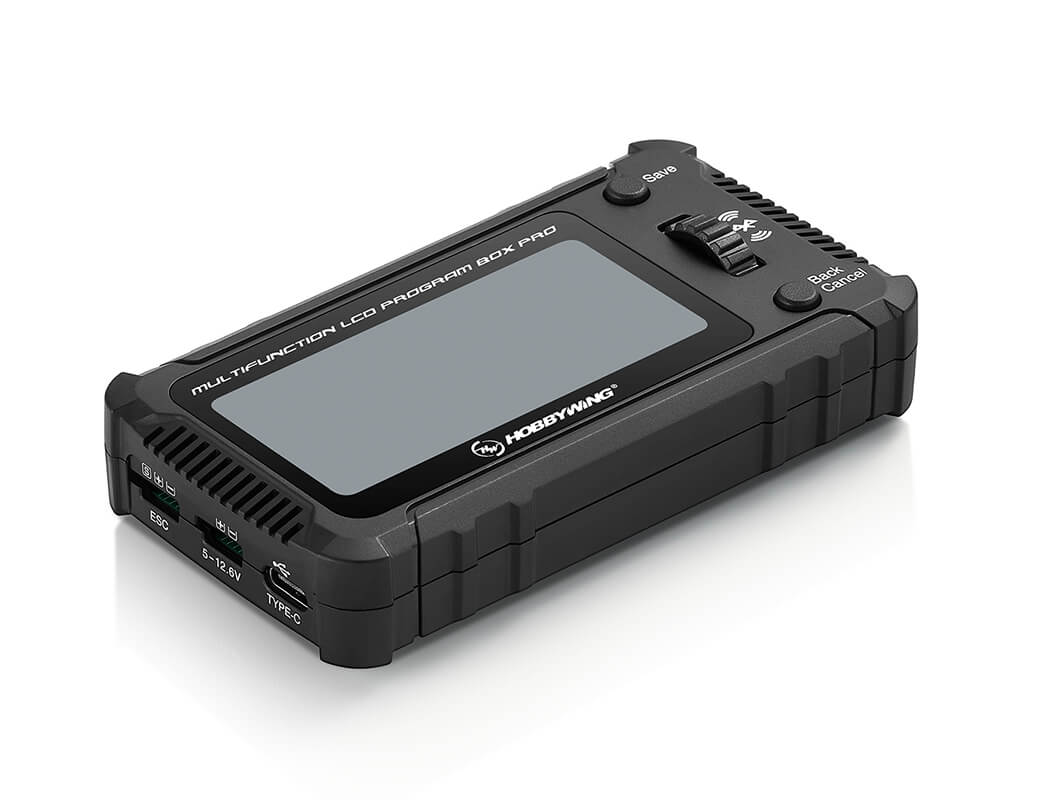

Hobbywing Multifunction LCD Program Box Pro 30502002
Features:
- As an independent parameter adjustment device, directly use the built-in LCD screen to display, set, and share ESC parameters (import).
- Connect the ESC to a computer using a USB adapter. Use the USB Link application software on the computer to upgrade the ESC firmware and set parameters.
- The OTA Bluetooth module: Using the mobile APP to set ESC parameters, upgrade firmware, and read data.
- Detect the overall voltage of the lithium battery and the individual voltage of each cell.
- The scope of application here can also be understood as all the ESCs that the old LCD G2 program box and OTA Bluetooth module can support.
Specifications:
Size (LxWxH): 105.6x59x24.4mm
Weight: 85g
Input Voltage: 5-12.6V (a separate battery is needed for powering this program box when ESC has no built-in/external BEC)
Interface: TYPE-C USB,ESC interface(Futaba plug), Power supply interface(Futaba plug)
Display Screen: LCD
