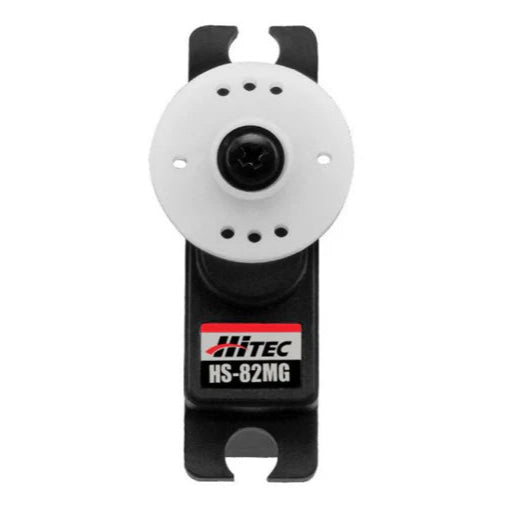

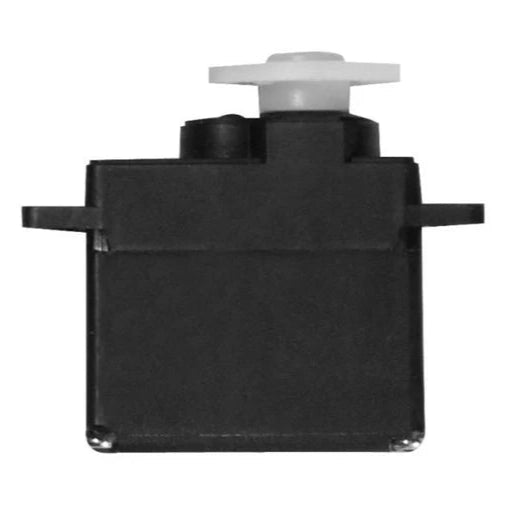

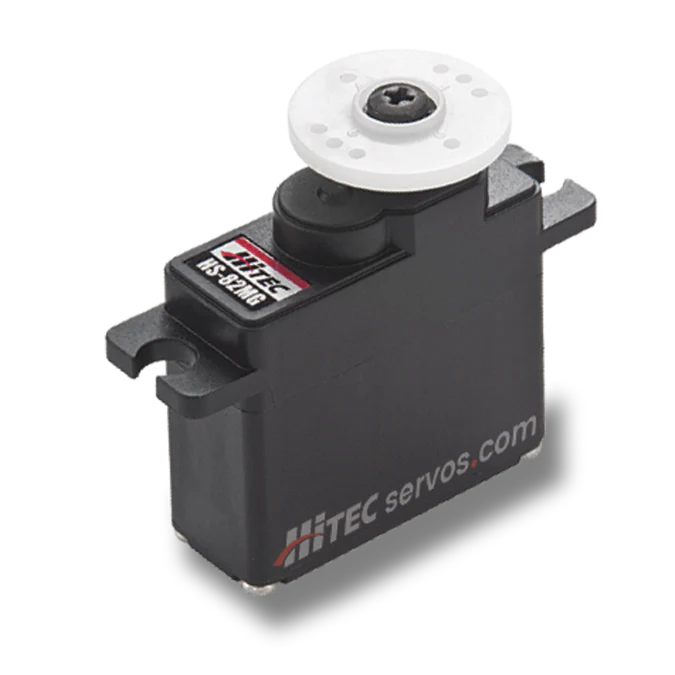

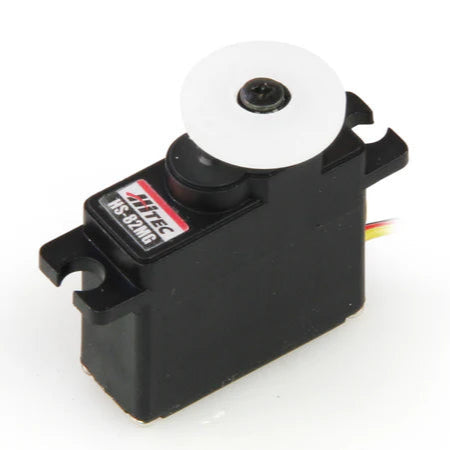

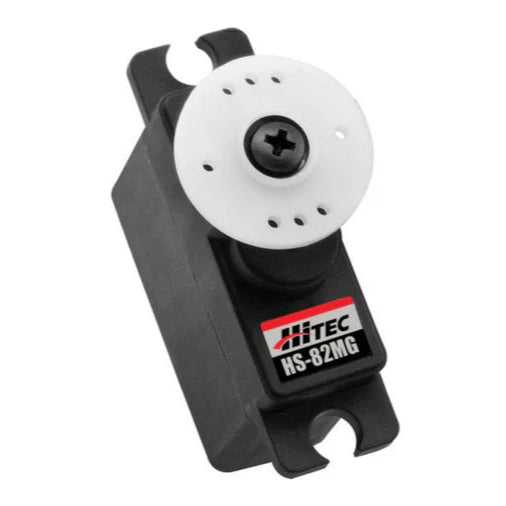

Hitec HS-82MG Micro Analogue Cored Servo 19g 3.4kg/0.1s 4.8V - 6.0V 2212150
We took one of our top selling servos and made it even better. Based on the ultra popular HS-81MG the HS-82MG gets a new stronger motor and updated electronics for more precise centring. The HS-82MG is perfect for smaller aircraft and helicopters where a durable geartrain is required.
Features:
- Top Selling Metal Gear Micro Servo
- Strong Three-Pole Ferrite Motor
- Rugged Metal Gears
Specifications:
Performance Specifications |
Operating Voltage Range (Volts DC) |
4.8V ~ 6.0V |
Speed (Second @ 60°) |
0.12 ~ 0.10 |
Maximum Torque Range oz. / in. |
39 ~ 47 |
Maximum Torque Range kg. / cm. |
2.8 ~ 3.4 |
Current Draw at Idle |
10 mA |
No Load Operating Current Draw |
280 mA |
Stall Current Draw |
1,800 mA |
Dead Band Width |
5 µs |
Physical Specifications |

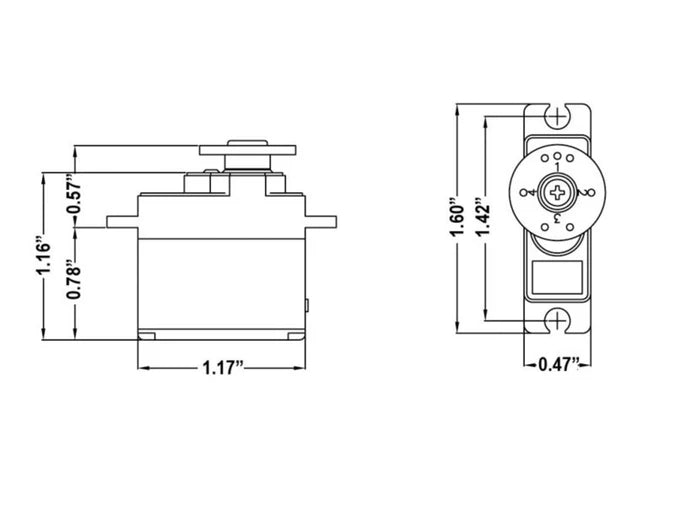

Dimensions (Inches) |
1.17 x 0.47 x 1.16 |

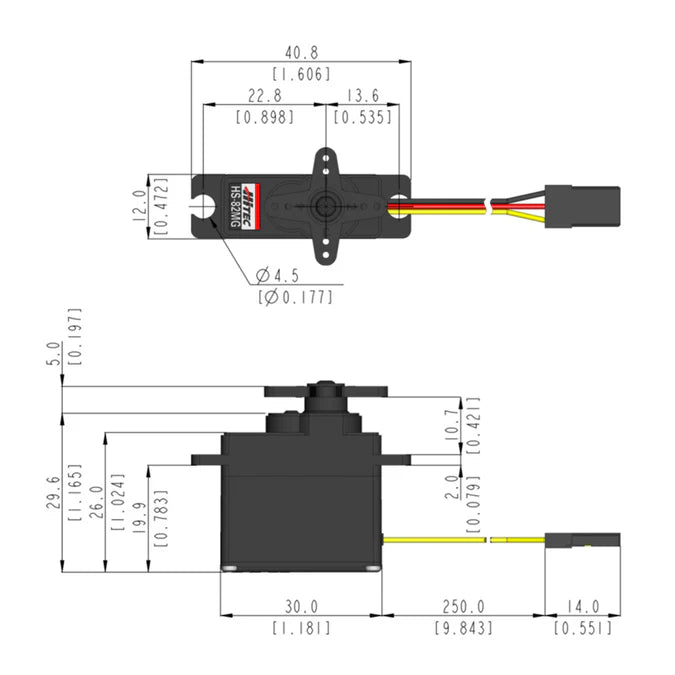

Dimensions (Metric) |
29.8 x 12.0 x 29.6 |
Weight (Ounces) |
0.66 |
Weight (Gram) |
19.0 |
Circuit Type |
HT7003 Analog SMT |
Motor Type |
3 Pole Metal Brush Ferrite |
Gear Material |
Metal |
Bearing Type |
None |
Output Shaft (type / Ømm) |
Standard 24 |
Case Material |
Plastic |
Dust / Water Resistance |
N / A |
Connector Gauge (AWG) / Strand Count |
28 / 20 |
