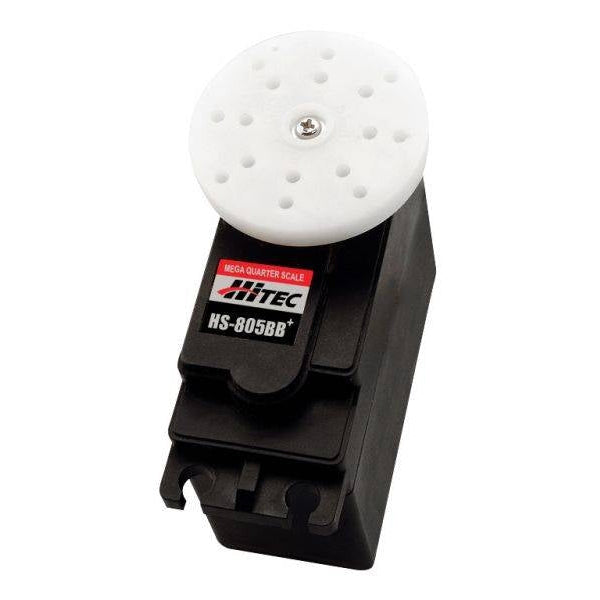

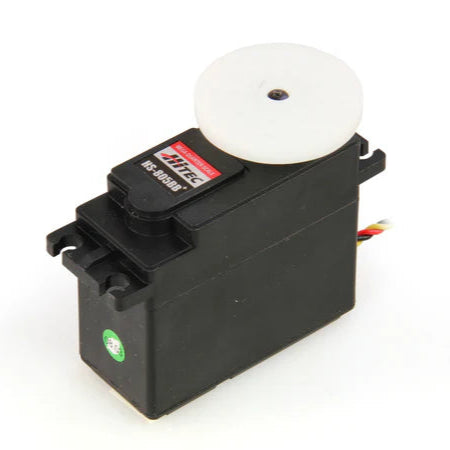

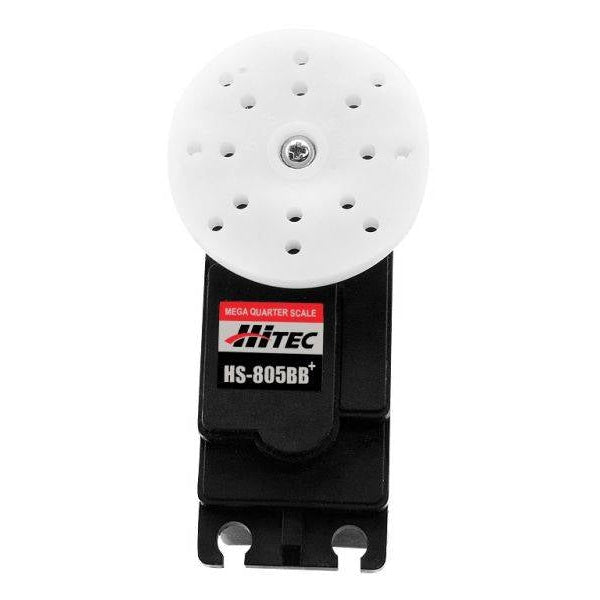

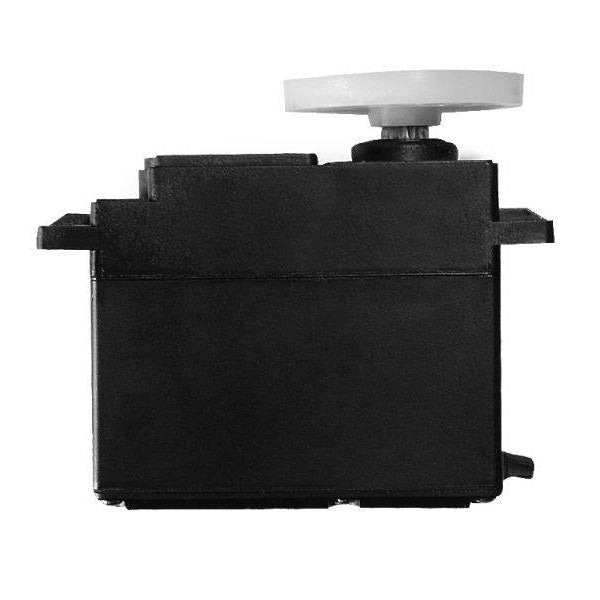

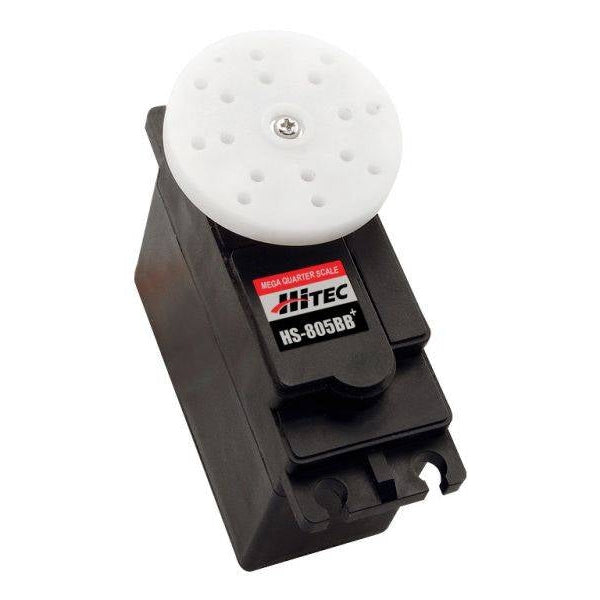

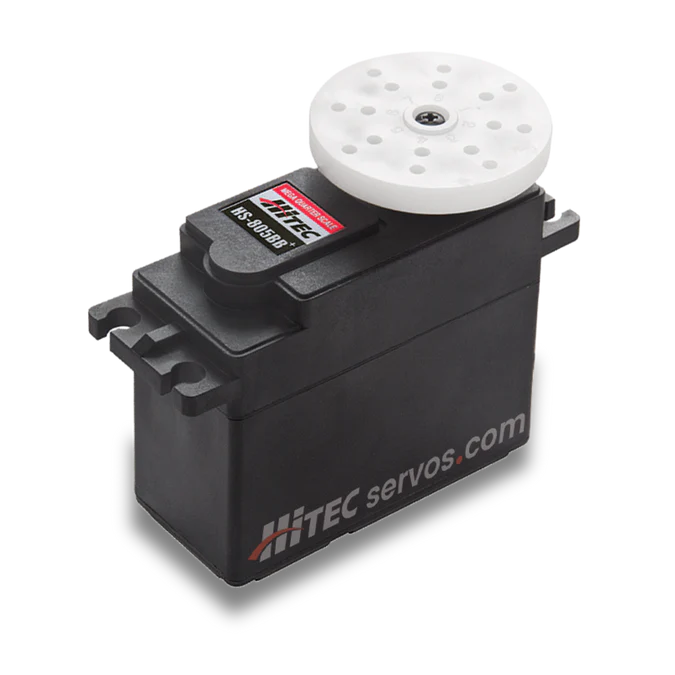

Hitec HS-805BB Giant Analogue Cored Servo 152g 24.7kg/0.14s 4.8V - 6.0V 2214530
Known as the “monster” servo, the HS-805BB uses a heavy duty nylon gear train and a strong 10mm, 15 tooth output shaft to generate 343 oz./in. of torque that will easily move just about any large plane, car, truck or boat!
Features:
- Economical Choice in a "Monster" Analog Servo
- Strong Three-Pole Ferrite Motor
- Heavy Duty, Nylon Gear Train
- Large 8mm Output Shaft with Dual Ball Bearings
- Solid Performance and Strong Gear Train
- Water and Dust-Resistant Case
Specifications:
| Performance Specifications |
| Operating Voltage Range (Volts DC) |
4.8V ~ 6.0V |
| Speed (Second @ 60°) |
0.19 ~ 0.14 |
| Maximum Torque Range oz. / in. |
275 ~ 343 |
| Maximum Torque Range kg. / cm. |
19.8 ~ 24.7 |
| Current Draw at Idle |
8 mA |
| No Load Operating Current Draw |
520 mA |
| Stall Current Draw |
6,000 mA |
| Dead Band Width |
8 µs |
| Physical Specifications |

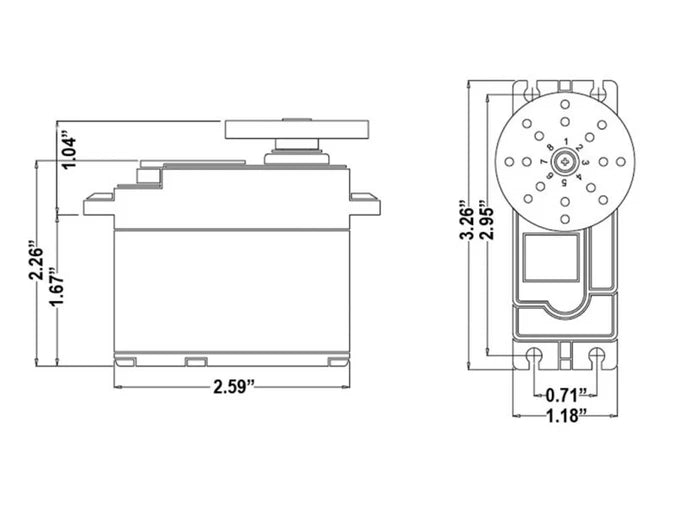

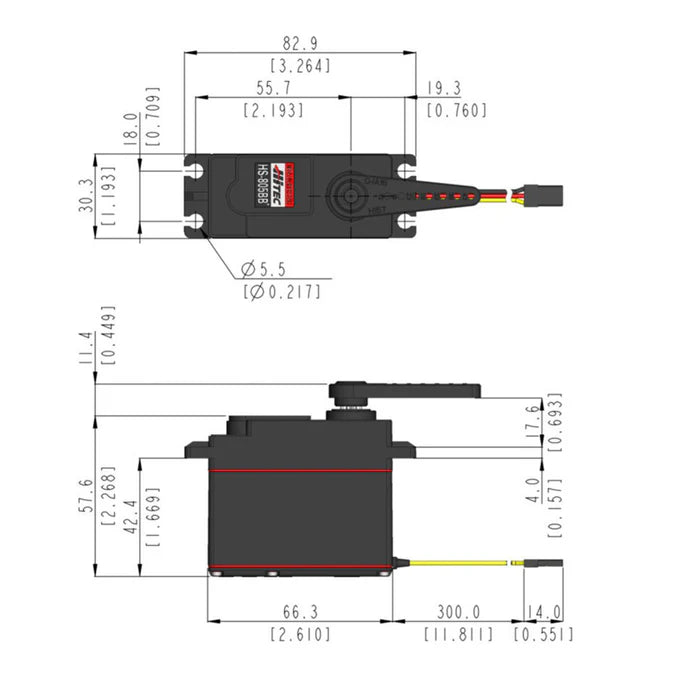

| Dimensions (Inches) |
2.59 x 1.18 x 2.26 |
| Dimensions (Metric) |
66.0 x 30.0 x 57.6 |
| Weight (Ounces) |
5.36 |
| Weight (Gram) |
152.0 |
| Circuit Type |
HT7003 Analog MosFet |
| Motor Type |
3 Pole Carbon Brush Ferrite |
| Gear Material |
Nylon |
| Bearing Type |
Dual Ball Bearing |
| Output Shaft (type / Ømm) |
Mega 15 |
| Case Material |
Plastic |
| Dust / Water Resistance |
Splash Proof |
| Connector Gauge (AWG) / Strand Count |
22 / 60 |
