Hitec HS-7955TG Standard Digital Coreless Servo 65g 24kg/0.15s 4.8V - 6.0V 2218510
Hitec's best servo just got better. Based on the powerhouse HS-5955TG servo the HS-7955TG has the added benefit of our G2 second generation programmable digital circuit. This new circuit has twice the resolution of our original circuit while adding programmable overload protection. The HS-7955TG has been designed for the most demanding hobby applications including the largest aircraft and monster trucks. Featuring a titanic 333 oz./in. of torque at 6.0 volts, all this power is harnessed by incorporating the industries first Titanium gears for incredible wear resistance and two strong hardened steel gear pins and axial brass bushing in the servo case.
Features:
- G2 Digital Circuit
- Coreless Motor
- Dual Ball Bearing Supported Output Shaft
- Titanium Gear Train (MK first gear)
Programming Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
-
Speed (Slower)
- Data Save / Load
- Program Reset
Programmable Features Include:
- - Dead Band Width
- - Direction of Rotation
- - Speed of Rotation (slower)
- - End Points
- - Neutral Points
- - Fail Safe On/Off
- - Fail Safe Point
- - Resolution* (default is high resolution)
- - Overload Protection
- * (default is off) *These features are only programmable with the HFP-20 field programmer.
Specifications:
| Performance Specifications |
| Operating Voltage Range (Volts DC) |
4.8V ~ 6.0V |
| Speed (Second @ 60°) |
0.19 ~ 0.15 |
| Maximum Torque Range oz. / in. |
250 ~ 333 |
| Maximum Torque Range kg. / cm. |
18.0 ~ 24.0 |
| Current Draw at Idle |
9 mA |
| No Load Operating Current Draw |
300 mA |
| Stall Current Draw |
4,200 mA |
| Dead Band Width |
1 µs |
| Physical Specifications |

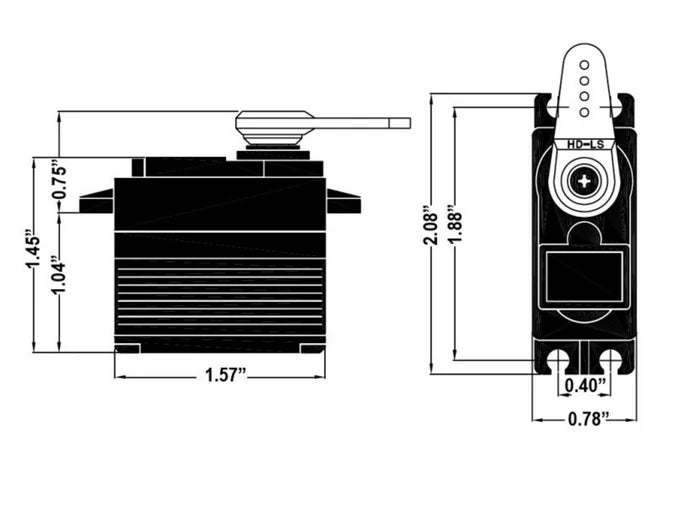

| Dimensions (Inches) |
1.57 x 0.78 x 1.45 |

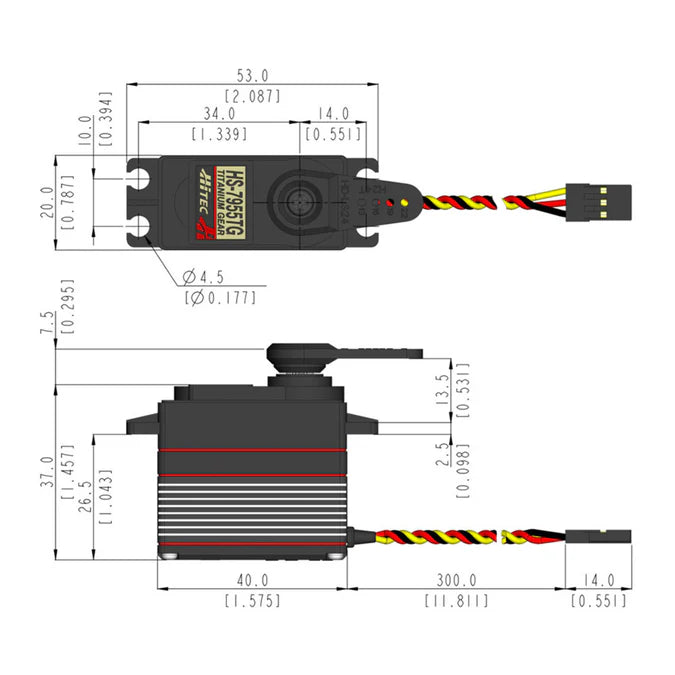

| Dimensions (Metric) |
40.0 x 20.0 x 37.0 |
| Weight (Ounces) |
2.29 |
| Weight (Gram) |
65.0 |
| Circuit Type |
G2 Programable Digital |
| Motor Type |
Coreless Metal Brush |
| Gear Material |
Titanium |
| Bearing Type |
Dual Ball Bearing |
| Output Shaft (type / Ømm) |
Standard 24 |
| Case Material |
Plastic / Aluminium |
| Dust / Water Resistance |
Splash Proof |
| Connector Gauge (AWG) / Strand Count |
22 / 60 |
