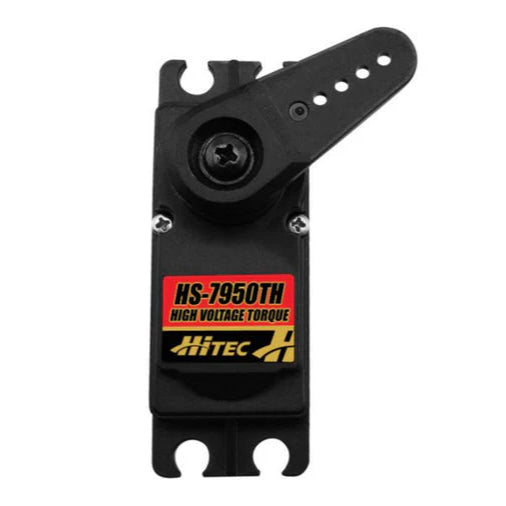

Hitec HS-7950TH Standard Digital Coreless Servo 65g 35kg/0.14s 6.0V - 7.4V 2220530

Save 19%
HitecSKU: 2220530-

Price:
Sale price£104.99 Regular price£129.99
Stock:
Only 2 units left
 More payment options

Description

Hitec HS-7950TH Standard Digital Coreless Servo 65g 35kg/0.14s 6.0V - 7.4V 2220530

Hitec's strongest servo period, the "Ultra Torque" HS-7950TH is designed to operate on a two cell LiPo Pack. Featuring our high resolution "G2" second generation programmable digital circuit and our indestructible Titanium gears, the HS-7950TH has the performance and durability you've come to expect from a Hitec servo. Other features in the HS-7950TH include a 7.4V optimized coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by axial brass bushing.

The HS-7950TH has been designed for the most demanding hobby applications including the largest aircraft and monster trucks. Featuring a titanic 403 oz./in. of torque at 6.0 volts, while still maintaining a respectable 0.15 second transit time.

Features:

  • G2 Digital Circuit
  • Titanium Gear Train (MK first gear)
  • Ultra Performance Coreless Motor
  • Heatsink Case
  • (8) O-Rings for Water/Dust/Fuel protection
  • Dual Ball Bearing Supported Output Shaft

Programmable Functions:

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Overload Protection
  • Resolution
  • Data Save / Load
  • Program Reset

*These features are only programmable with the HFP-20, HPP-20 or HPP-21 programmers.

Specifications:

Performance Specifications
Operating Voltage Range (Volts DC) 6.0V ~ 7.4V
Speed (Second @ 60°) 0.17 ~ 0.14
Maximum Torque Range oz. / in. 403 ~ 486
Maximum Torque Range kg. / cm. 29.0 ~ 35.0
Current Draw at Idle 10 mA
No Load Operating Current Draw 440 mA
Stall Current Draw 9,000 mA
Dead Band Width 2 µs



Physical Specifications
Dimensions (Inches) 1.57 x 0.79 x 1.50
Dimensions (Metric) 40.0 x 20.0 x 38.0
Weight (Ounces) 2.29
Weight (Gram) 65.0
Circuit Type G2 Programable Digital
Motor Type Coreless Metal Brush
Gear Material Titanium
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic / Aluminium
Dust / Water Resistance Splash Proof
Connector Gauge (AWG) / Strand Count 22 / 60
Performance Specifications
Operating Voltage Range (Volts DC) 6.0V ~ 7.4V
Speed (Second @ 60°) 0.17 ~ 0.14
Maximum Torque Range oz. / in. 403 ~ 486
Maximum Torque Range kg. / cm. 29.0 ~ 35.0
Current Draw at Idle 10 mA
No Load Operating Current Draw 440 mA
Stall Current Draw 9,000 mA
Dead Band Width 2 µs



Physical Specifications
Dimensions (Inches) 1.57 x 0.79 x 1.50
Dimensions (Metric) 40.0 x 20.0 x 38.0
Weight (Ounces) 2.29
Weight (Gram) 65.0
Circuit Type G2 Programable Digital
Motor Type Coreless Metal Brush
Gear Material Titanium
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic / Aluminium
Dust / Water Resistance Splash Proof
Connector Gauge (AWG) / Strand Count 22 / 60
  • Series - 7000-Series
  • Size - Standard
  • Dimensions - 40×20×38mm
  • Command Protocol - PWM
  • Circuit - Digital
  • Weight - 65 g
  • Voltage Range - 6.0V - 7.4V
  • Max Torque (kg/cm) - 35
  • Max Speed (sec/60°) - 0.14
  • Spline - 24T (Ø6mm)
  • Motor - Coreless
  • Gears - Titanium
  • Programmable - Yes
  • Dust/Water Resistance - Splashproof
  • Case - Plastic / Aluminium
  • Bearings - Dual Ball Bearing
  • Circuit Detail - G2 Programable Digital
  • Motor Detail - Coreless Metal Brush
  • Gear Detail - 1x Metal-Plastic, 3x Titanium Alloy
  • Compatible Horns - Micro Horn [M-I, M-X, M-O, R-O, R-X, R-I, R-D, R-C] & Heavy Duty Horn [HD-IL, HD-IM, HD-IS, HD-LS, HD-IG, HD-LL, HD-LG, HD-OS] & Metal Horn [R-ML] & Quarter Scale Horn [Q-O, Q-I, Q-X] & Super Horn [R-XA] & Spool Drum Horn & Sail Arm Horn
