Hitec HS785HB Quarter Scale Winch Servo Karbonite 2215510

Hitec HS-785HB Giant Analogue Cored Servo 110g 13.2kg/1.38s 4.8V - 6.0V 2215510

Roll over image to zoom in Click on image to zoom

Hitec HS785HB Giant Analogue Cored Servo 110g 13.2kg/1.38s 4.8V - 6.0V 2215510

Name: Hitec HS785HB Giant Analogue Cored Servo 110g 13.2kg/1.38s 4.8V - 6.0V 2215510
Brand: Hitec
SKU: 2215510
Price: 34.5 GBP
Availability: InStock

Save £4.25

HitecSKU: 2215510

Price:

£34.50 £38.75

Stock:

In stock at supplier warehouse. Lead time: 2-3 days

Quantity:

Hitec HS-785HB Giant Analogue Cored Servo 110g 13.2kg/1.38s 4.8V - 6.0V 2215510

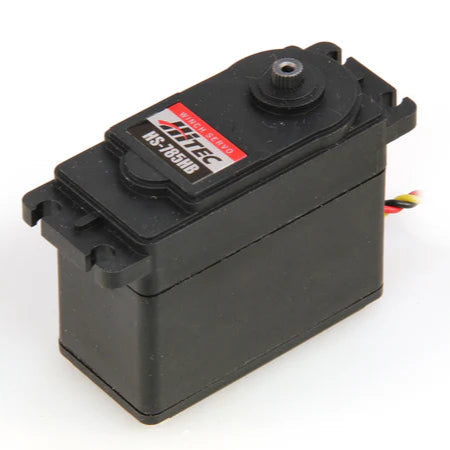

The HS-785HB sail winch servo with its large drum wheel has 3 1/2 revolutions of travel for hauling in even the largest of sails. With its dual ball bearing supported output shaft the HS-785HB will provide years of reliable service.

The HS-785HB is a specialized analog sail winch servo from Hitec, engineered to provide precise and reliable control for radio-controlled (R/C) sailboats. Its design focuses on managing large sails with efficiency and durability.

Spline: 24 Tooth

Series - Boat
Size - Giant

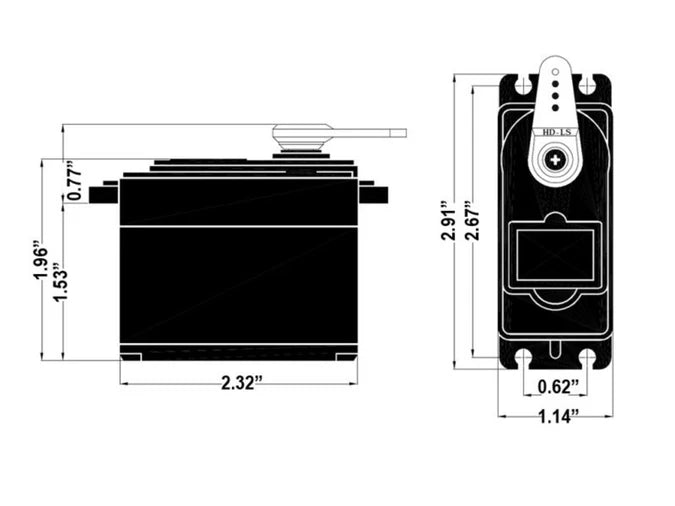

Dimensions - 59×29×50mm
Command Protocol - PWM
Circuit - Analogue
Weight - 110 g
Voltage Range - 4.8V - 6.0V
Max Torque (kg/cm) - 13.2
Max Speed (sec/60°) - 1.38
Spline - 24T (Ø6mm)
Motor - Cored
Gears - Karbonite
Dust/Water Resistance - IP-54 Rated
Case - Engineering Plastic
Bearings - Dual Ball Bearing
Circuit Detail - HT7003 Analog MosFet
Motor Detail - 3 Pole Metal Brush Ferrite
Gear Detail - Heavy Duty Resin
Compatible Horns - Micro Horn [M-I, M-X, M-O, R-O, R-X, R-I, R-D, R-C] & Heavy Duty Horn [HD-IL, HD-IM, HD-IS, HD-LS, HD-IG, HD-LL, HD-LG, HD-OS] & Metal Horn [R-ML] & Quarter Scale Horn [Q-O, Q-I, Q-X] & Super Horn [R-XA] & Spool Drum Horn & Sail Arm Horn

Data Sheet
