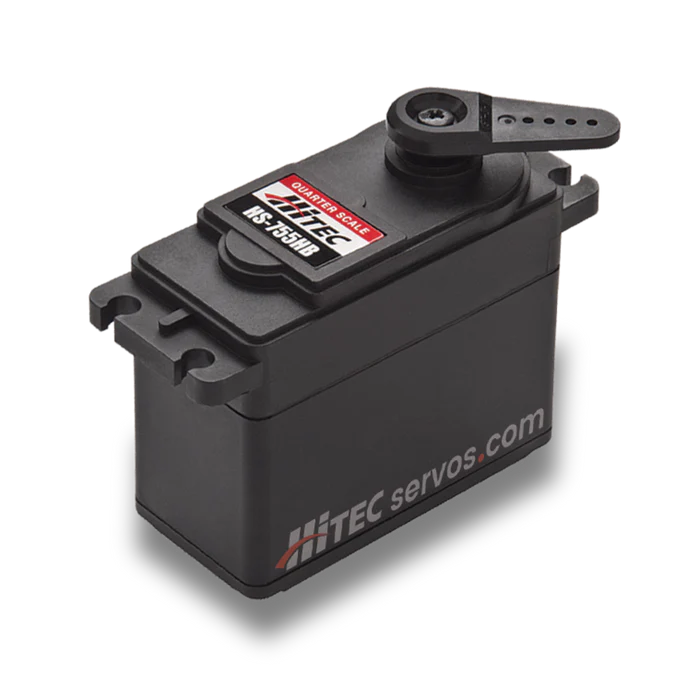

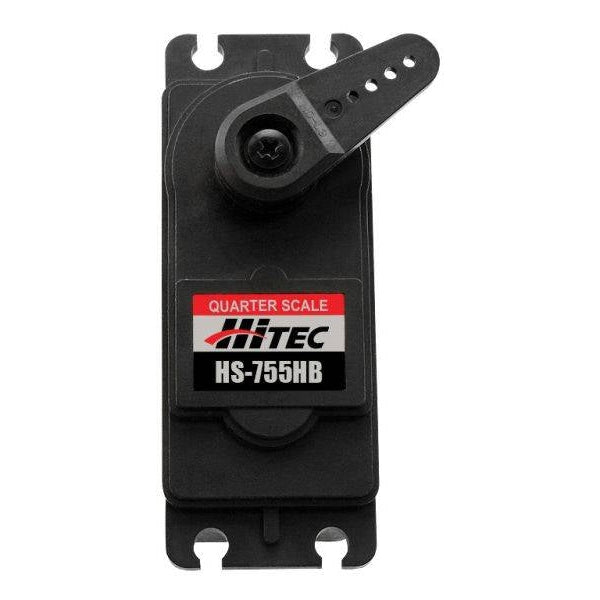

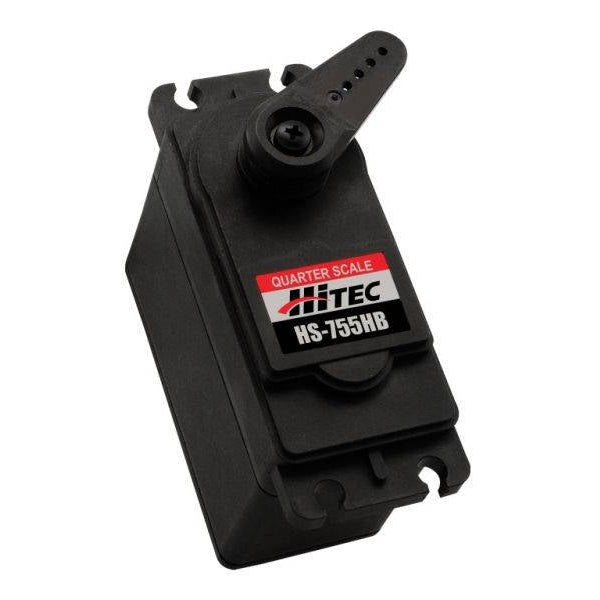

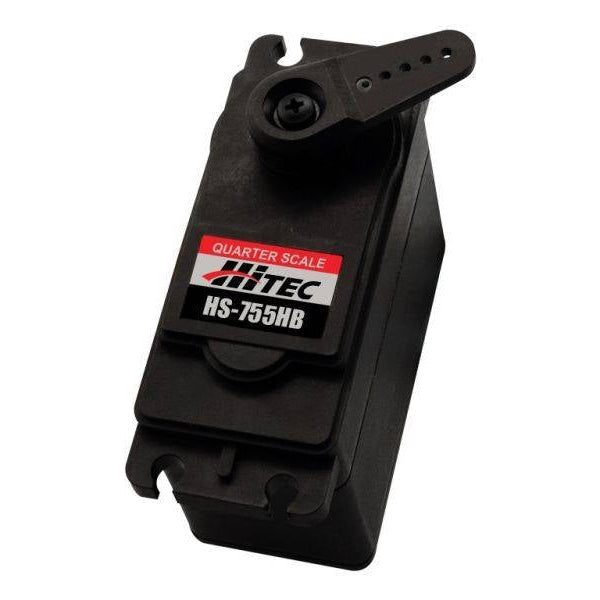

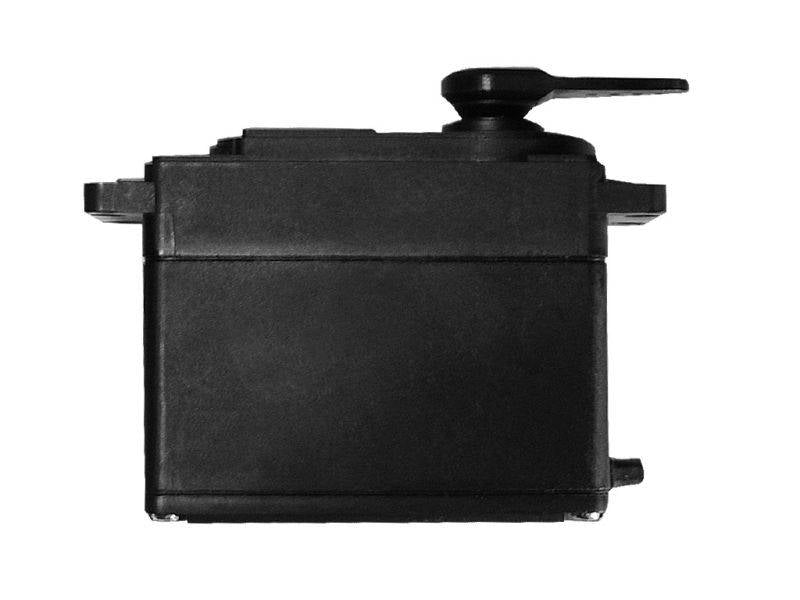

Hitec HS755HB Quarter Scale Karbonite Servo
Roll over image to zoom in Click on image to zoom
Hitec HS755HB Quarter Scale Karbonite ServoHitec HS755HB Quarter Scale Karbonite ServoHitec HS-755HB Giant Analogue Cored Servo 110g 13.2kg/0.23s 4.8V - 6.0V 2214500Hitec HS755HB Quarter Scale Karbonite ServoHitec HS755HB Quarter Scale Karbonite ServoHitec HS755HB Quarter Scale Karbonite ServoHitec HS-755HB Giant Analogue Cored Servo 110g 13.2kg/0.23s 4.8V - 6.0V 2214500Hitec HS-755HB Giant Analogue Cored Servo 110g 13.2kg/0.23s 4.8V - 6.0V 2214500Hitec HS755HB Quarter Scale Karbonite ServoHitec HS-755HB Giant Analogue Cored Servo 110g 13.2kg/0.23s 4.8V - 6.0V 2214500Hitec HS-755HB Giant Analogue Cored Servo 110g 13.2kg/0.23s 4.8V - 6.0V 2214500Hitec HS-755HB Giant Analogue Cored Servo 110g 13.2kg/0.23s 4.8V - 6.0V 2214500

Hitec HS-755HB Giant Analogue Cored Servo 110g 13.2kg/0.23s 4.8V - 6.0V 2214500

Save 13%
HitecSKU: 2214500
Price:
£31.52 £36.25
Stock:
In stock at supplier warehouse.  Lead time: 2-3 days

Description

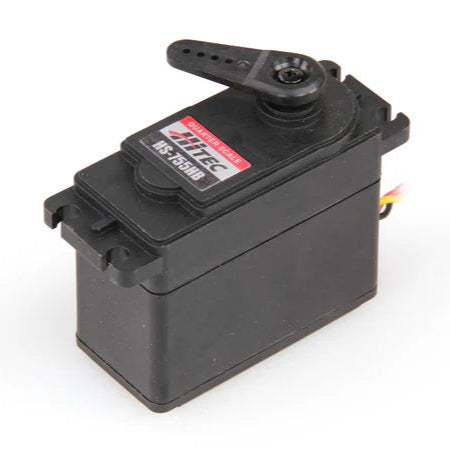

Hitec HS-755HB Giant Analogue Cored Servo 110g 13.2kg/0.23s 4.8V - 6.0V 2214500

Hitec’s expansive line-up of servos include the HS-755HB and HS-755MG “giant scale” servos offered with either the revolutionary Karbonite™ gears or metal gears. Both are perfect for larger R/C applications and feature dual ball bearings with a water and dust resistant case. The powerful HS-755MG delivers a whopping 200 oz./in. of torque and the HS-755HB delivers 183 oz./in. of torque at 6 volts.

Features:

  • Economical Choice in a Giant, Analog Servo
  • Tough Karbonite Gears
  • Dual Ball Bearing-Supported Output Shaft
  • Water and Dust Resistant Case

Specifications:

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.28 ~ 0.23
Maximum Torque Range oz. / in. 153 ~ 183
Maximum Torque Range kg. / cm. 11.0 ~ 13.2
Current Draw at Idle 8 mA
No Load Operating Current Draw 250 mA
Stall Current Draw 1,800 mA
Dead Band Width 5 µs



Physical Specifications

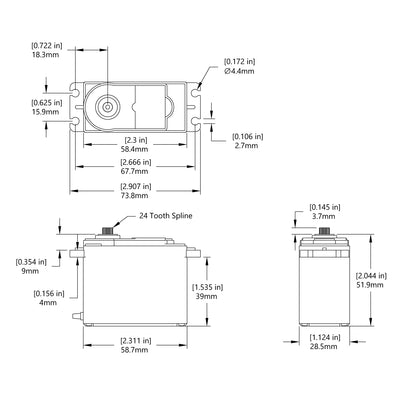

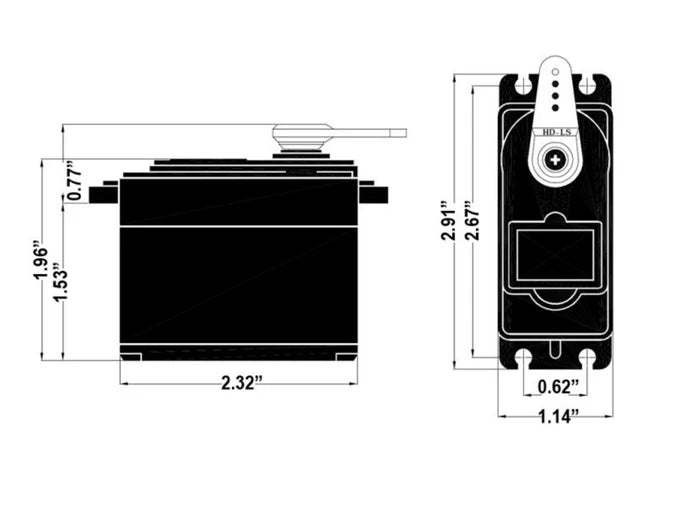

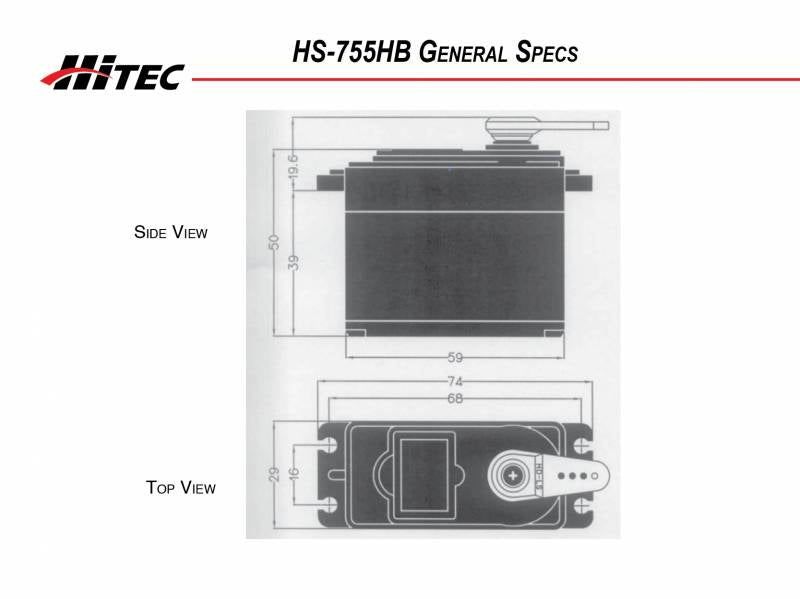

Dimensions (Inches) 2.32 x 1.14 x 1.96
Dimensions (Metric) 59.0 x 29.0 x 50.0
Weight (Ounces) 3.88
Weight (Gram) 110.0
Circuit Type HT7003 Analog MosFet
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Karbonite
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance Splash Proof
Connector Gauge (AWG) / Strand Count 22 / 60
  • Size - Giant
  • Dimensions - 59×29×50mm
  • Command Protocol - PWM
  • Circuit - Analogue
  • Weight - 110 g
  • Voltage Range - 4.8V - 6.0V
  • Max Torque (kg/cm) - 13.2
  • Max Speed (sec/60°) - 0.23
  • Spline - 24T (Ø6mm)
  • Motor - Cored
  • Gears - Karbonite
  • Dust/Water Resistance - IP-54 Rated
  • Case - Engineering Plastic
  • Bearings - Dual Ball Bearing
  • Circuit Detail - HT7003 Analog MosFet
  • Motor Detail - 3 Pole Metal Brush Ferrite
  • Gear Detail - Heavy Duty Resin

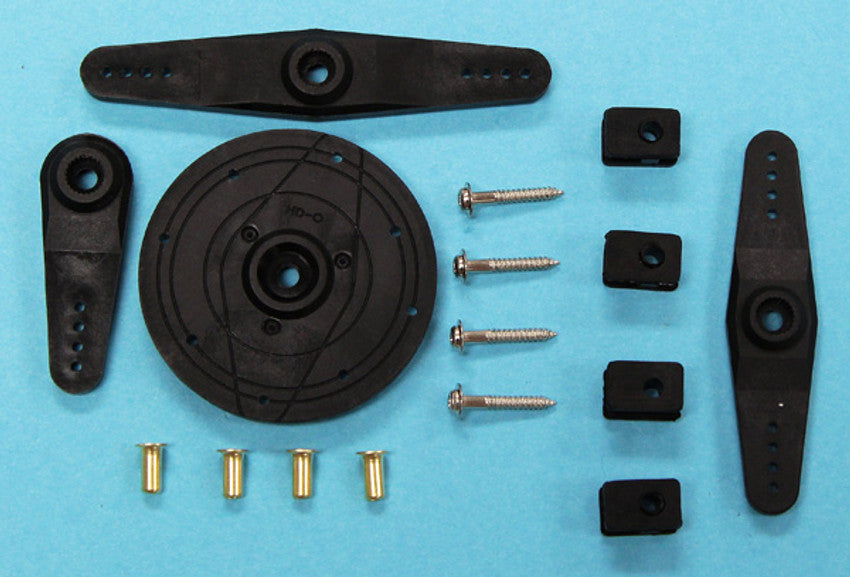

  • Compatible Horns - Micro Horn [M-I, M-X, M-O, R-O, R-X, R-I, R-D, R-C] & Heavy Duty Horn [HD-IL, HD-IM, HD-IS, HD-LS, HD-IG, HD-LL, HD-LG, HD-OS] & Metal Horn [R-ML] & Quarter Scale Horn [Q-O, Q-I, Q-X] & Super Horn [R-XA] & Spool Drum Horn & Sail Arm Horn
Data Sheet
