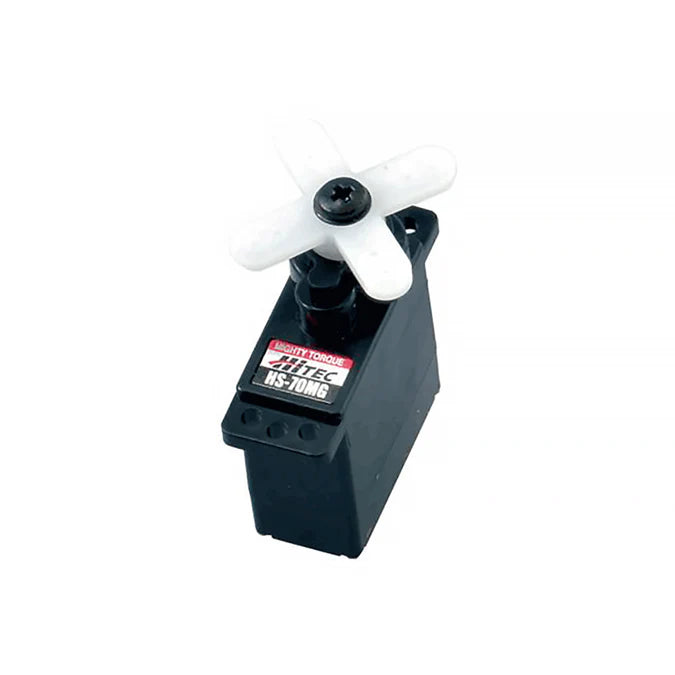

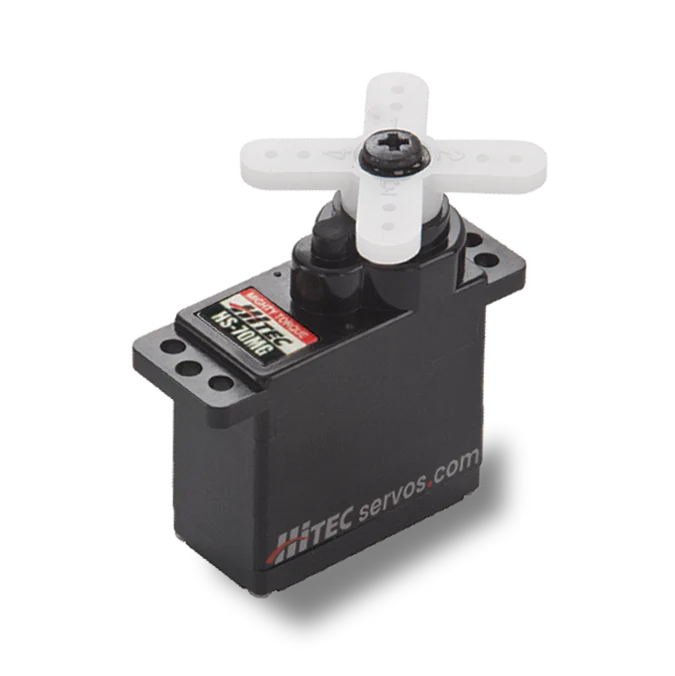

Hitec HS-70MG Ultra Micro Analogue Cored Servo 14.2g 3kg/0.14s 4.8V - 6.0V 2212122
Our strong and speedy analog HS-70MG possess the performance qualities necessary for the new class of 42-48 inch performance 3D aircraft and 450-size helicopters. Featuring Hitec’s durable metal gears, cored motors, top ball bearings and Generation 1 circuitry, these new additions to our vast servo family will have all your planes and helis flying with remarkable precision and power. Fast, forceful, fantastic! We Are Hitec!
Specifications:
| Performance Specifications |
| Operating Voltage Range (Volts DC) |
4.8V ~ 6.0V |
| Speed (Second @ 60°) |
0.17 ~ 0.14 |
| Maximum Torque Range oz. / in. |
33 ~ 42 |
| Maximum Torque Range kg. / cm. |
2.4 ~ 3.0 |
| Current Draw at Idle |
8 mA |
| No Load Operating Current Draw |
160 mA |
| Stall Current Draw |
1,250 mA |
| Dead Band Width |
5 µs |
| Physical Specifications |

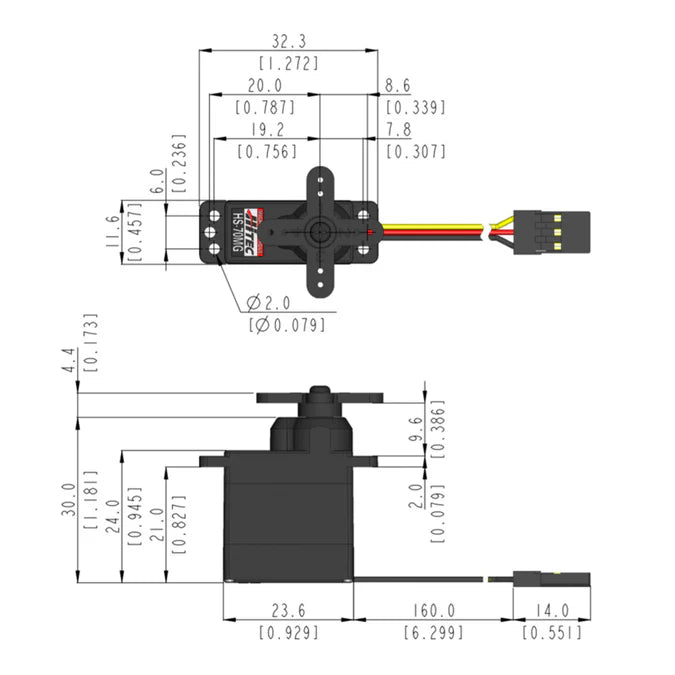

| Dimensions (Inches) |
0.92 x 0.45 x 1.14 |
| Dimensions (Metric) |
23.6 x 11.6 x 28.1 |
| Weight (Ounces) |
0.50 |
| Weight (Gram) |
14.2 |
| Circuit Type |
HT7003 Analog SMT |
| Motor Type |
3 Pole Metal Brush Neodymium |
| Gear Material |
Metal |
| Bearing Type |
Top Ball Bearing |
| Output Shaft (type / Ømm) |
Micro 23 |
| Case Material |
Plastic |
| Dust / Water Resistance |
N / A |
| Connector Gauge (AWG) / Strand Count |
28 / 20 |
