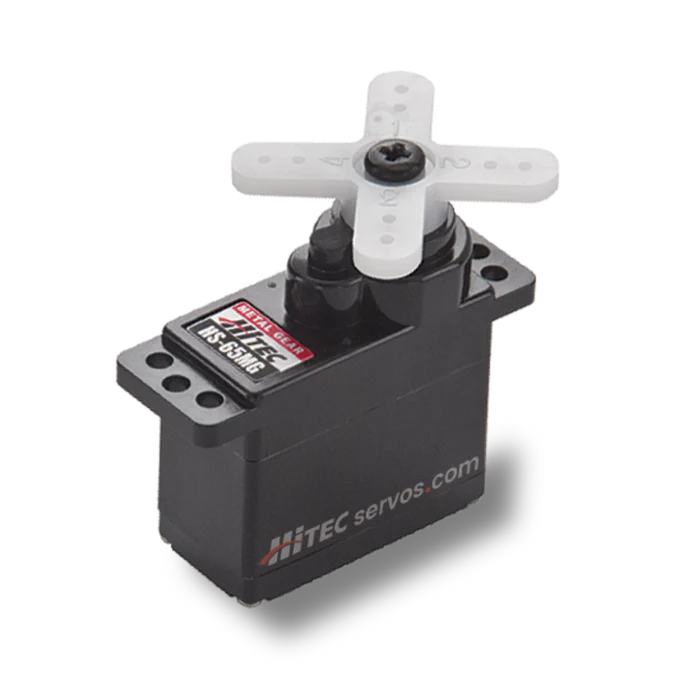

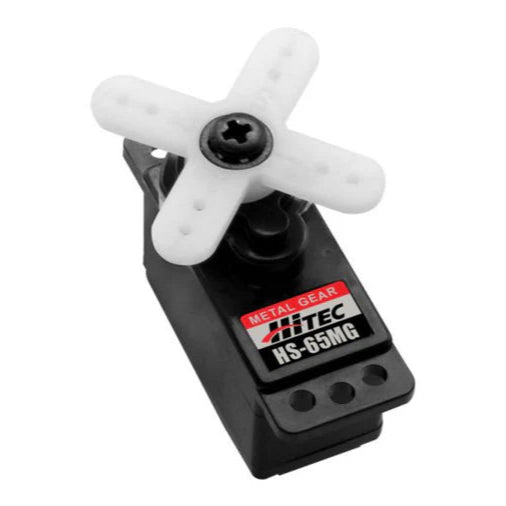

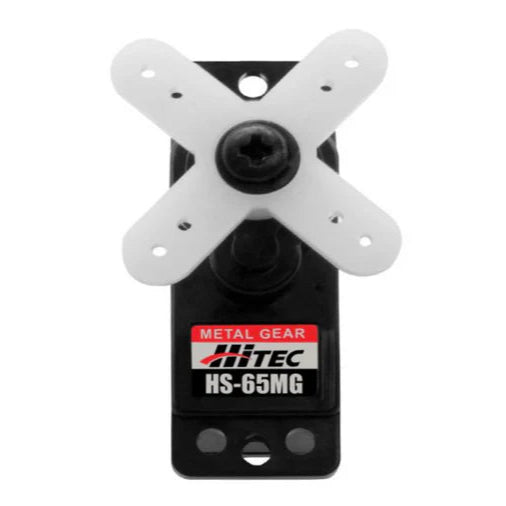

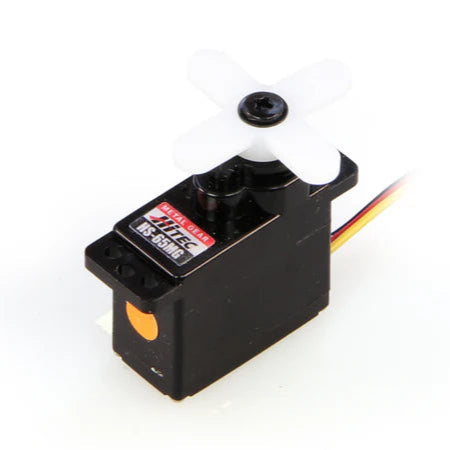

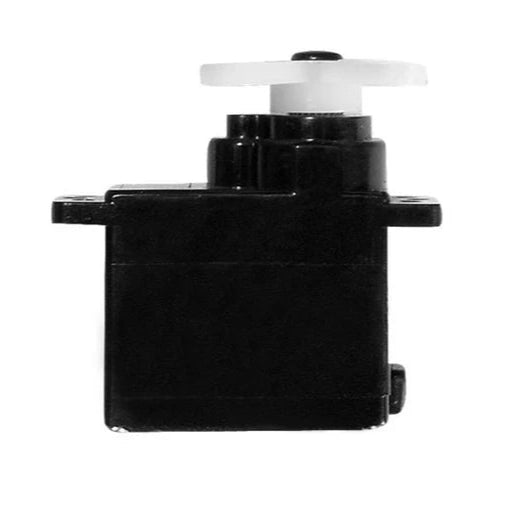

Hitec HS-65MG Ultra Micro Analogue Cored Servo 11.9g 2.2kg/0.11s 4.8V - 6.0V 2212110
Considered one of the most powerful servos in the micro class, the HS-65 is offered with a choice of “shock resistant” Metal or “zero wear” Karbonite gears. The 65 series features a top-ball bearing for long life and positive centring, 31 ounces/inches of power at 6 volts and is an excellent choice for higher performance micro helicopters, electric park flyers, and 1/18 scale cars.
Features:
- Top Selling Metal Gear Feather Servo
- High Performance Three-Pole Motor
- Rugged Metal Gear for Added Durability
- Ball Bearing-Supported Output Shaft
- Four metal gears with one ball bearing
- High efficiency Nd magnet motor
Specifications:
| Performance Specifications |
| Operating Voltage Range (Volts DC) |
4.8V ~ 6.0V |
| Speed (Second @ 60°) |
0.14 ~ 0.11 |
| Maximum Torque Range oz. / in. |
25 ~ 31 |
| Maximum Torque Range kg. / cm. |
1.8 ~ 2.2 |
| Current Draw at Idle |
8 mAh |
| No Load Operating Current Draw |
220 mAh |
| Stall Current Draw |
1200 mAh |
| Dead Band Width |
5 µs |
| Physical Specifications |

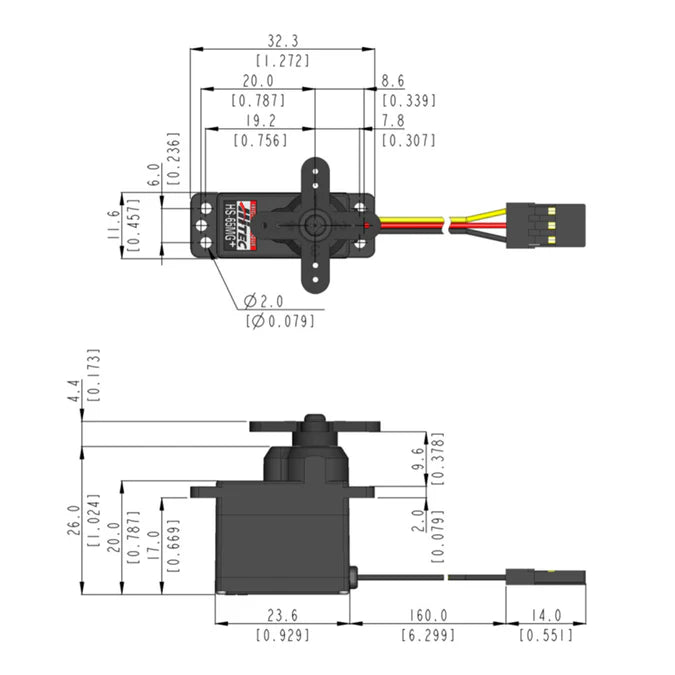

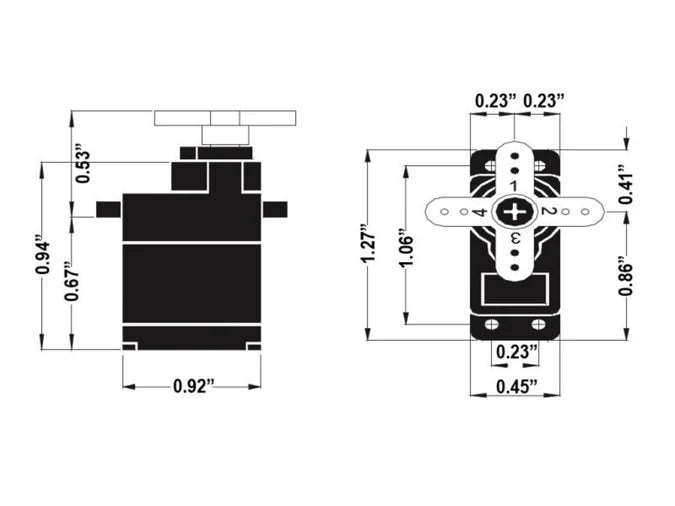

| Dimensions (Inches) |
0.92 x 0.45 x 0.94 |
| Dimensions (Metric) |
23.6 x 11.6 x 24.0 |
| Weight (Ounces) |
0.42 |
| Weight (Gram) |
11.9 |
| Circuit Type |
HT7003 Analog SMT |
| Motor Type |
3 Pole Metal Brush Neodymium |
| Gear Material |
Metal |
| Bearing Type |
Top Ball Bearing |
| Output Shaft (type / Ømm) |
Micro 23 |
| Case Material |
Plastic |
| Dust / Water Resistance |
N / A |
| Connector Gauge (AWG) / Strand Count |
28 / 20 |
