Name: Hitec HS65HB Ultra Micro Analogue Cored Servo 11.2g 1.9kg/0.13s 4.8V - 6.0V 2212090
Brand: Hitec
SKU: 2212090
Price: 21.99 GBP
Availability: InStock

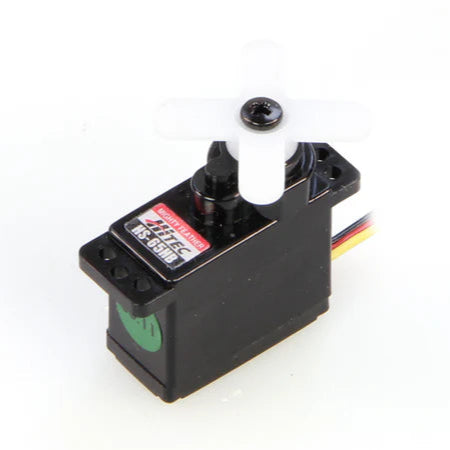

Hitec HS65HB+ Mighty Feather 11.2g Karbonite Gear/BB

Hitec HS-65HB Ultra Micro Analogue Cored Servo 11.2g 1.9kg/0.13s 4.8V - 6.0V 2212090

Roll over image to zoom in Click on image to zoom

Hitec HS-65HB Ultra Micro Analogue Cored Servo 11.2g 1.9kg/0.13s 4.8V - 6.0V 2212090

Considered one of the most powerful servos in the micro class, the HS-65 is offered with a choice of “shock resistant” Metal or “zero wear” Karbonite gears. The 65 series features a top-ball bearing for long life and positive centering, 31 ounces/inches of power at 6 volts and is an excellent choice for higher performance micro helicopters, electric park flyers, and 1/18 scale cars.

Features:

Premium Feather Servo
Strong Karbonite Gears
Ball Bearing-Supported Output Shaft
High Torque and High Speed
Heavy duty resin gears with ball bearing
High efficiency Nd magnet motor

Size - Ultra Micro
Dimensions - 23.6×11.6×24mm
Command Protocol - PWM
Circuit - Analogue
Weight - 11.2 g
Voltage Range - 4.8V - 6.0V
Max Torque (kg/cm) - 1.9
Max Speed (sec/60°) - 0.13
Spline - 25T (Ø5mm)
Motor - Cored
Gears - Karbonite
Case - Engineering Plastic
Bearings - Top Ball Bearing
Circuit Detail - HT7003 Analog SMT
Motor Detail - 3 Pole Metal Brush Neodymium
Gear Detail - 1x Heavy Duty Resin
Compatible Horns - Micro Horn [MS-I, MS-L, MS-X] & Micro Metal Horn [MS-ML]

Data Sheet

Hitec HS65HB Ultra Micro Analogue Cored Servo 11.2g 1.9kg/0.13s 4.8V - 6.0V 2212090

Description

Hitec HS-65HB Ultra Micro Analogue Cored Servo 11.2g 1.9kg/0.13s 4.8V - 6.0V 2212090

Features:
