Hitec HS625MG High Torque/Speed All Metal Gear
Roll over image to zoom in Click on image to zoom
Hitec HS625MG High Torque/Speed All Metal GearHitec HS625MG High Torque/Speed All Metal GearHitec HS625MG High Torque/Speed All Metal GearHitec HS-625MG Standard Analogue Cored Servo 55.2g 6.8kg/0.15s 4.8V - 6.0V 2214250Hitec HS-625MG Standard Analogue Cored Servo 55.2g 6.8kg/0.15s 4.8V - 6.0V 2214250Hitec HS-625MG Standard Analogue Cored Servo 55.2g 6.8kg/0.15s 4.8V - 6.0V 2214250Hitec HS-625MG Standard Analogue Cored Servo 55.2g 6.8kg/0.15s 4.8V - 6.0V 2214250Hitec HS-625MG Standard Analogue Cored Servo 55.2g 6.8kg/0.15s 4.8V - 6.0V 2214250Hitec HS-625MG Standard Analogue Cored Servo 55.2g 6.8kg/0.15s 4.8V - 6.0V 2214250Hitec HS-625MG Standard Analogue Cored Servo 55.2g 6.8kg/0.15s 4.8V - 6.0V 2214250

Hitec HS-625MG Standard Analogue Cored Servo 55.2g 6.8kg/0.15s 4.8V - 6.0V 2214250

Save 15%
HitecSKU: 2214250
Price:
£32.75 £38.50
Stock:
Only 2 units left
 More payment options

Description

Hitec HS-625MG Standard Analogue Cored Servo 55.2g 6.8kg/0.15s 4.8V - 6.0V 2214250

Product Description
The powerful high speed HS-625MG is a perfect choice for those applications requiring a fast and strong standard size servo. Utilizing our M/P and metal gear train technology, the HS-625MG is a fantastic sport servo for larger planes and 10th scale sport vehicles.

Features:

  • Affordable high speed metal gear servo
  • Strong three-pole ferrite motor
  • Heavy duty metal gear (3) train and one resin metal gear
  • Revolutionary metal/plastic first gear (MP Gear)
  • Dual ball bearing-supported output shaft
  • Hybrid IC
  • Series - Premium Sport
  • Size - Standard

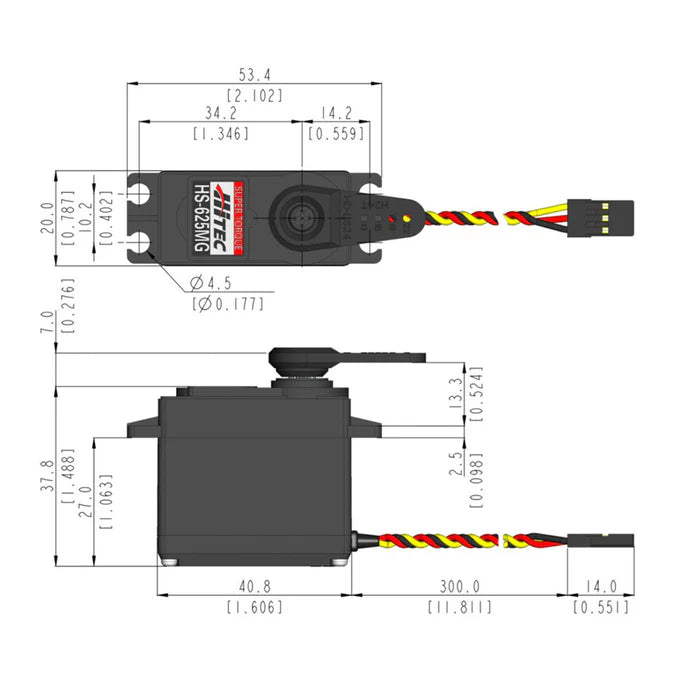

  • Dimensions - 40.6×19.8×37.8mm
  • Command Protocol - PWM
  • Circuit - Analogue
  • Weight - 55.2 g
  • Voltage Range - 4.8V - 6.0V
  • Max Torque (kg/cm) - 6.8
  • Max Speed (sec/60°) - 0.15
  • Spline - 24T (Ø6mm)
  • Motor - Cored
  • Gears - Metal
  • Case - Engineering Plastic
  • Bearings - Dual Ball Bearing
  • Circuit Detail - HT7003 Analog SMT
  • Motor Detail - 3 Pole Metal Brush Ferrite
  • Gear Detail - 1x Metal-Resin, 3x Metal
  • Compatible Horns - Micro Horn [M-I, M-X, M-O, R-O, R-X, R-I, R-D, R-C] & Heavy Duty Horn [HD-IL, HD-IM, HD-IS, HD-LS, HD-IG, HD-LL, HD-LG, HD-OS] & Metal Horn [R-ML] & Quarter Scale Horn [Q-O, Q-I, Q-X] & Super Horn [R-XA] & Spool Drum Horn & Sail Arm Horn
Data Sheet
