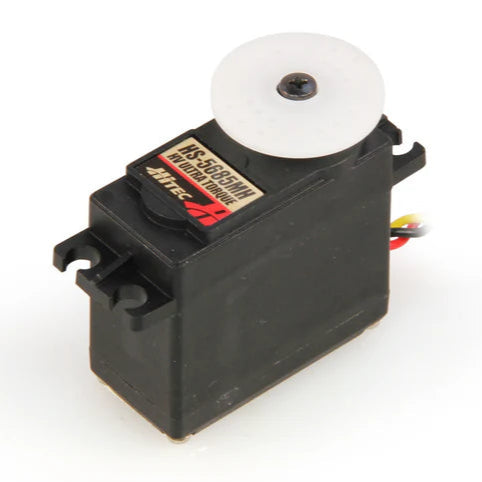

Hitec HS-5685MH Standard Digital Cored Servo 57g 12.9kg/0.17s 6.0V - 7.4V 2217640
An affordable yet powerful programmable digital sport servo
The HS-5685MH High Torque HV Metal Gear servo was designed to run on a 2-cell 7.4V LiPo battery to give you extra torque and speed. Featuring a heavy-duty metal gear train and our exclusive programmable digital circuit for reliable, durable performance, these servos can be used in a wide range of applications.
Our affordable digital sport servos are the perfect companion for 1/10th to 1/8th scale on- and off-road vehicles, as well as larger sport helicopters and large scale aerobatic aircraft up to 25-percent.
The upgraded version of this servo is now available : D645MW
Features:
- Alloy servo arm included.
- Programmable digital circuit heavy-duty metal gear train (MK first gear).
- Dual ball bearing supported output shaft.
- Programmable features include: dead band width, direction of rotation, speed of rotation (slower), end points, neutral points, fail-safe on / off, fail-safe point.
- Spline: 24 Tooth
Programming Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Data Save / Load
- Program Reset
Specifications:
| Performance Specifications |
| Operating Voltage Range (Volts DC) |
6.0V ~ 7.4V |
| Speed (Second @ 60°) |
0.20 ~ 0.17 |
| Maximum Torque Range oz. / in. |
157 ~ 179 |
| Maximum Torque Range kg. / cm. |
11.3 ~ 12.9 |
| Current Draw at Idle |
7 mA |
| No Load Operating Current Draw |
350 mA |
| Stall Current Draw |
2,600 mA |
| Dead Band Width |
4 µs |
| Physical Specifications |
| Dimensions (Inches) |
1.59 x 0.77 x 1.48 |
| Dimensions (Metric) |
40.6 x 19.8 x 37.8 |
| Weight (Ounces) |
2.01 |
| Weight (Gram) |
57.0 |
| Circuit Type |
G1 Programable Digital |
| Motor Type |
3 Pole Metal Brush Ferrite |
| Gear Material |
Metal |
| Bearing Type |
Dual Ball Bearing |
| Output Shaft (type / Ømm) |
Standard 24 |
| Case Material |
Plastic |
| Dust / Water Resistance |
N / A |
| Connector Gauge (AWG) / Strand Count |
22 / 60 |
