Hitec HS-5496MH Standard Digital Cored Servo 52g 7.5kg/0.15s 6.0V - 7.4V 2217600

Save 13%
HitecSKU: 2217600

Price:
Sale price£31.96 Regular price£36.75
Stock:
Only 2 units left
 More payment options

Description

Hitec HS-5496MH Standard Digital Cored Servo 52g 7.5kg/0.15s 6.0V - 7.4V 2217600

Digital Performance at an Analog Price

At Hitec, we believe in developing the highest quality servos in the market at an affordable price. That philosophy stands true with the economical HS-5496MH metal gear digital sport servo. Based on the popular HS-5485HB, the HS-5496MH is the perfect match for match for sport airplanes up to 25% scale as well as sport cars and trucks. With 7.4 volt, 2-cell LiPo battery capability, The HS-5496MH delivers the power you need at a price you can feel good about! Trust your hobby to Hitec.

Features

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Data Save / Load
  • Program Reset

Programmable Features Include:

  • Dead Band Width
  • Direction of Rotation
  • Speed of Rotation (slower)
  • End Points
  • Neutral Points
  • Fail Safe On/Off
  • Fail Safe Point

Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 6.0V ~ 7.4V
Speed (Second @ 60°) 0.17 ~ 0.15
Maximum Torque Range oz. / in. 89 ~ 104
Maximum Torque Range kg. / cm. 6.4 ~ 7.5
Current Draw at Idle 12 mA
No Load Operating Current Draw 190 mA
Stall Current Draw 1,400 mA
Dead Band Width 4 µs

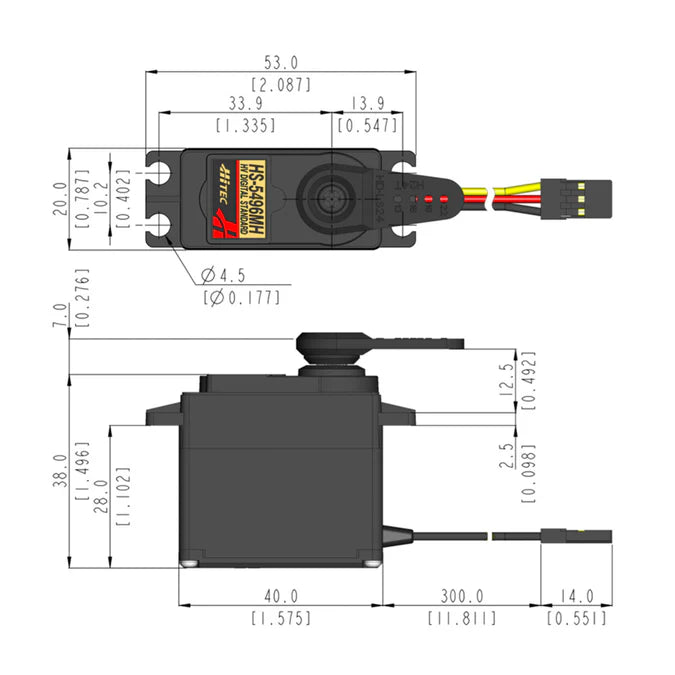

Physical Specifications
Dimensions (Inches) 1.57 x 0.78 x 1.49
Dimensions (Metric) 39.8 x 19.8 x 38.0
Weight (Ounces) 1.84
Weight (Gram) 52.0
Circuit Type G1 Programable Digital
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type Top Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40
Performance Specifications
Operating Voltage Range (Volts DC) 6.0V ~ 7.4V
Speed (Second @ 60°) 0.17 ~ 0.15
Maximum Torque Range oz. / in. 89 ~ 104
Maximum Torque Range kg. / cm. 6.4 ~ 7.5
Current Draw at Idle 12 mA
No Load Operating Current Draw 190 mA
Stall Current Draw 1,400 mA
Dead Band Width 4 µs



Physical Specifications
Dimensions (Inches) 1.57 x 0.78 x 1.49
Dimensions (Metric) 39.8 x 19.8 x 38.0
Weight (Ounces) 1.84
Weight (Gram) 52.0
Circuit Type G1 Programable Digital
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type Top Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40
  • Series - 5000-Series
  • Size - Standard
  • Dimensions - 39.8×19.8×38mm
  • Command Protocol - PWM
  • Circuit - Digital
  • Weight - 52 g
  • Voltage Range - 6.0V - 7.4V
  • Max Torque (kg/cm) - 7.5
  • Max Speed (sec/60°) - 0.15
  • Spline - 24T (Ø6mm)
  • Motor - Cored
  • Gears - Metal
  • Programmable - Yes
  • Case - Engineering Plastic
  • Bearings - Top Ball Bearing
  • Circuit Detail - G1 Programable Digital
  • Motor Detail - 3 Pole Metal Brush Ferrite
  • Gear Detail - Metal
  • Compatible Horns - Micro Horn [M-I, M-X, M-O, R-O, R-X, R-I, R-D, R-C] & Heavy Duty Horn [HD-IL, HD-IM, HD-IS, HD-LS, HD-IG, HD-LL, HD-LG, HD-OS] & Metal Horn [R-ML] & Quarter Scale Horn [Q-O, Q-I, Q-X] & Super Horn [R-XA] & Spool Drum Horn & Sail Arm Horn
