Hitec HS-5087MH Micro Digital Cored Servo 21.9g 4.3kg/0.13s 6.0V - 7.4V 2216555
The HS-5087MH digital, metal gear micro servo is the high voltage version of our ever popular HS-5085MG. Built with a 3-pole ferrite motor and heavy-duty metal gears, this servo will bring maximum performance to your hobby and deliver extra power with a 2-cell 7.4V LiPo battery. Whether you are a beginner or an expert in the RC field, our HS-5087MH will provide the strength and capability you need and want in a micro servo. Drivers will find it the perfect steering servo for their 1/16th scale vehicles. Pilots with .15 to .40-size glow and electric aircraft will relish in its power and reliability. Its precision and performance also make it perfect for 500-size helicopters.
Features:
- Our Smallest 7.4v 2-Cell LiPo Capable Servo
- Rugged Metal Gears
- Ball Bearing-Supported Output Shaft
- Standard Programmable Digital Circuit for More Holding Power
- Standard Servo Performance in a Micro Package
- Spline: 24 Tooth
Programmable Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Data Save / Load
- Program Reset
Specifications:
| Performance Specifications: |
| Operating Voltage Range (Volts DC) |
6.0V ~ 7.4V |
| Speed (Second @ 60°) |
0.17 ~ 0.13 |
| Maximum Torque Range oz. / in. |
50 ~ 60 |
| Maximum Torque Range kg. / cm. |
3.6 ~ 4.3 |
| Current Draw at Idle |
3 mA |
| No Load Operating Current Draw |
200 mA |
| Stall Current Draw |
1,750 mA |
| Dead Band Width |
2 µs |
| Physical Specifications: |

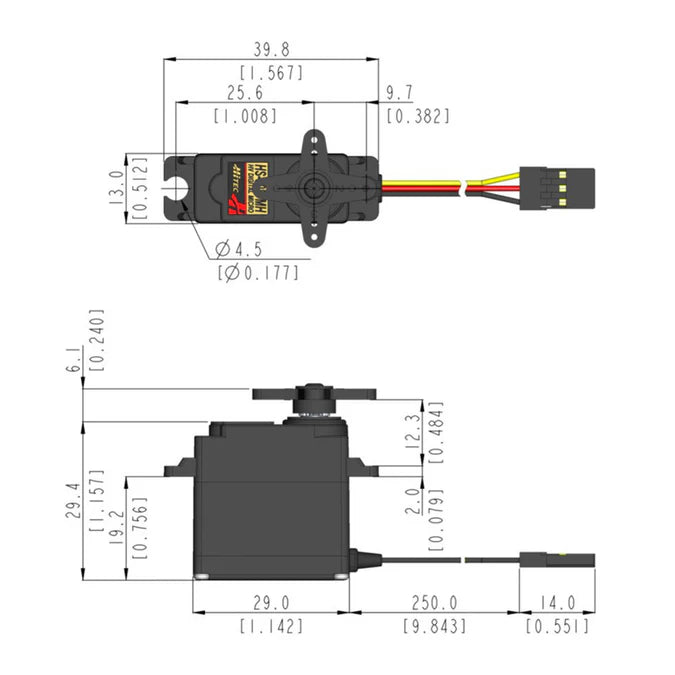

| Dimensions (Inches) |
1.14 x 0.51 x 1.18 |
| Dimensions (Metric) |
29.0 x 13.0 x 30.0 |
| Weight (Ounces) |
0.77 |
| Weight (Gram) |
21.9 |
| Circuit Type |
G1 Programable Digital |
| Motor Type |
3 Pole Metal Brush Ferrite |
| Gear Material |
Metal |
| Bearing Type |
Top Ball Bearing |
| Output Shaft (type / Ømm) |
Standard 24 |
| Case Material |
Plastic |
| Dust / Water Resistance |
N / A |
| Connector Gauge (AWG) / Strand Count |
28 / 20 |
