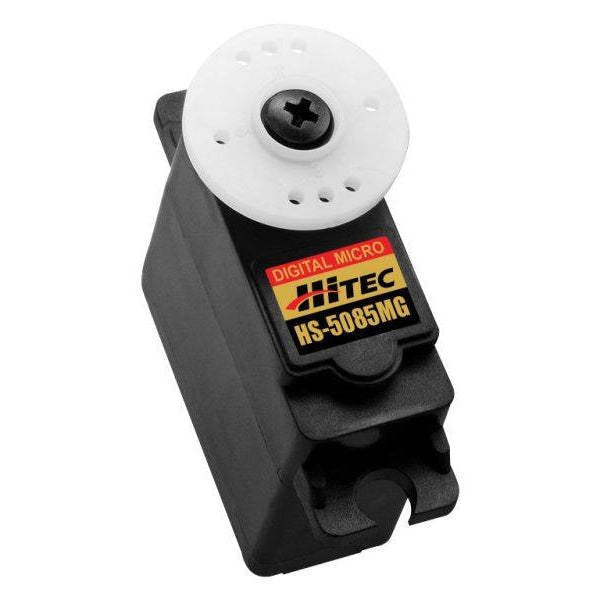

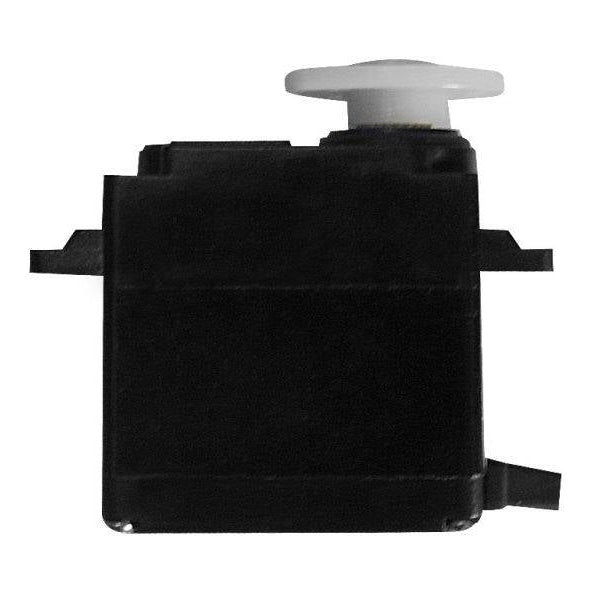

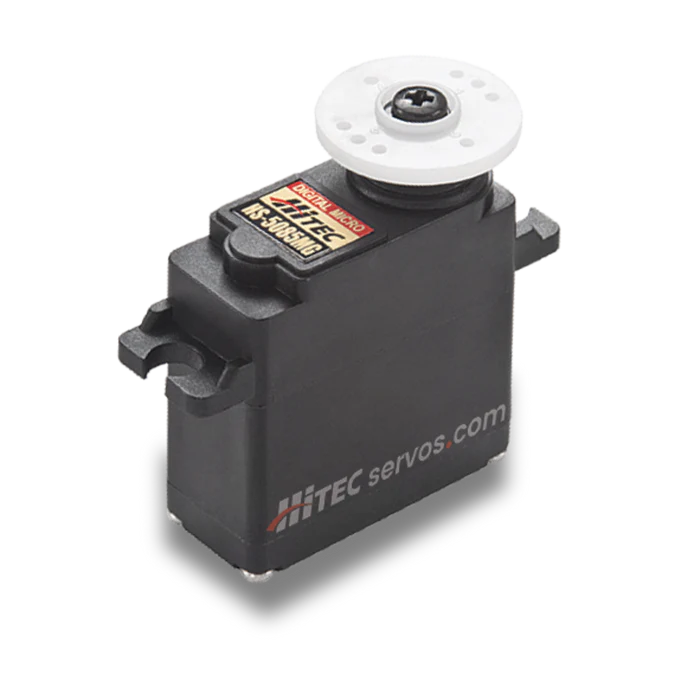

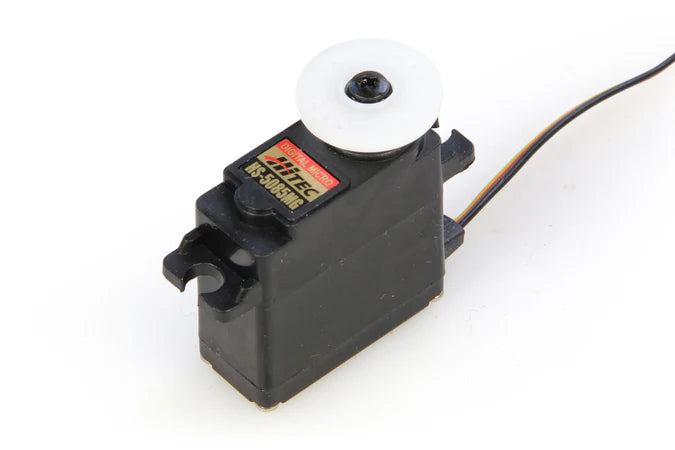

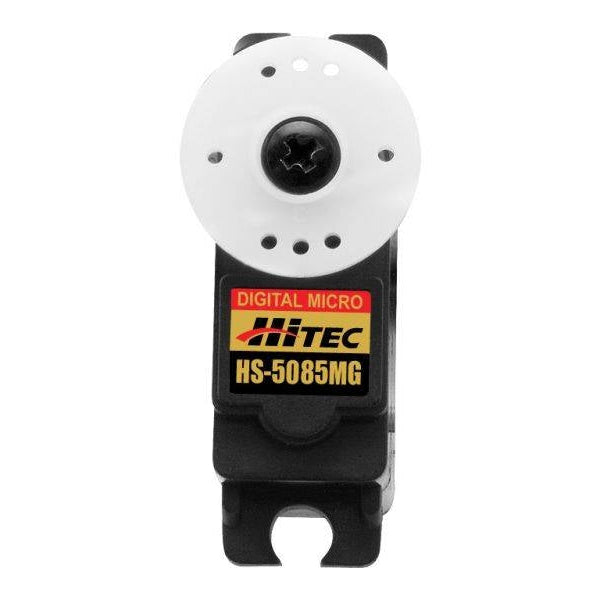

Hitec HS-5085MG Micro Digital Cored Servo 21.9g 4.3kg/0.13s 4.8V - 6.0V 2216550
A digital version of one of Hitec’s most popular micro servos the HS-5085MG offers excellent centring, resolution and durability for those looking to save weight without sacrificing performance. A popular servo for smaller airplanes, heli’s, boats, cars and trucks, the HS-5085MG offers a fine balance between speed and torque.
Features:
- Standard Servo Performance from a Micro Servo
- Rugged Metal Gears
- Ball Bearing-Supported Output Shaft
- Standard Programmable Digital Circuit
- Stronger Holding Power than the Analog Version
- High performance digital amplifier.
- Lightweight metal gears with ball bearing.
Programmable Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Data Save / Load
- Program Reset
Specifications
| Performance Specifications |
| Operating Voltage Range (Volts DC) |
4.8V ~ 6.0V |
| Speed (Second @ 60°) |
0.17 ~ 0.13 |
| Maximum Torque Range oz. / in. |
50 ~ 60 |
| Maximum Torque Range kg. / cm. |
3.6 ~ 4.3 |
| Current Draw at Idle |
3 mA |
| No Load Operating Current Draw |
290 mA |
| Stall Current Draw |
2150 mA |
| Dead Band Width |
2 µs |
| Physical Specifications |

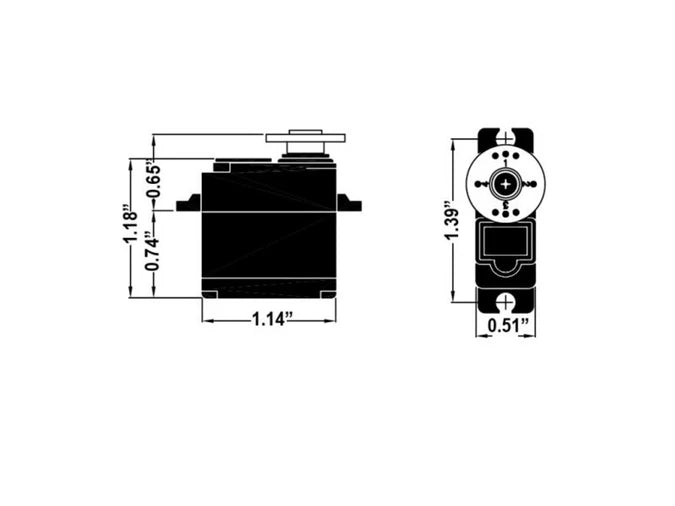

| Dimensions (Inches) |
1.14 x 0.51 x 1.18 |

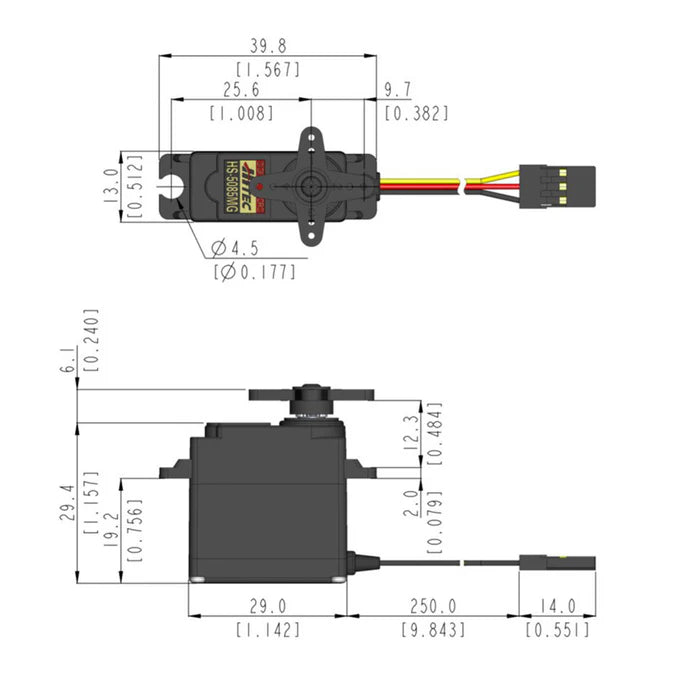

| Dimensions (Metric) |
29.0 x 13.0 x 30.0 |
| Weight (Ounces) |
0.77 |
| Weight (Gram) |
21.9 |
| Circuit Type |
G1 Programable Digital |
| Motor Type |
3 Pole Metal Brush Ferrite |
| Gear Material |
Metal |
| Bearing Type |
Top Ball Bearing |
| Output Shaft (type / Ømm) |
Standard 24 |
| Case Material |
Plastic |
| Dust / Water Resistance |
N / A |
| Connector Gauge (AWG) / Strand Count |
28 / 20 |
