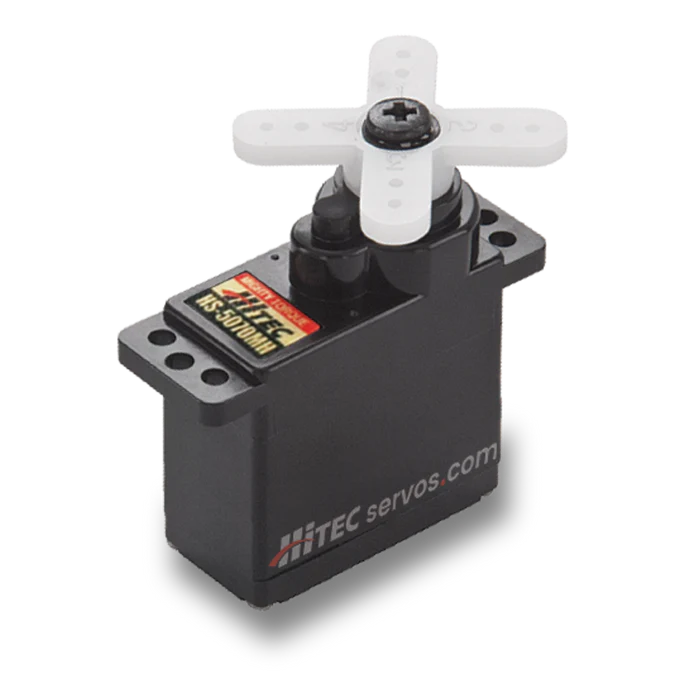

Hitec HS-5070MH Ultra Micro Digital Cored Servo 14.2g 3.7kg/0.12s 6.0V - 7.4V 2216545
Our new strong and speedy digital HS-5070MH possess the performance qualities necessary for the new class of 42-48 inch performance 3D aircraft and 450-size helicopters. Featuring Hitec’s durable metal gears, cored motors, top ball bearings and Generation 1 circuitry, these new additions to our vast servo family will have all your planes and helis flying with remarkable precision and power. The programmable HS-5070MH delivers an impressive 53 oz.-in. of torque at 7.4 volts. Fast, forceful, fantastic! We Are Hitec!
Features:
- Programmable with metal gears
- Three-poled cored motors
- Top ball bearings
Programmable Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Data Save / Load
- Program Reset
Specifications
| Performance Specifications |
| Operating Voltage Range (Volts DC) |
6.0V ~ 7.4V |
| Speed (Second @ 60°) |
0.14 ~ 0.12 |
| Maximum Torque Range oz. / in. |
42 ~ 52 |
| Maximum Torque Range kg. / cm. |
3.0 ~ 3.7 |
| Current Draw at Idle |
3 mA |
| No Load Operating Current Draw |
240 mA |
| Stall Current Draw |
1,300 mA |
| Dead Band Width |
2 µs |
| Physical Specifications |

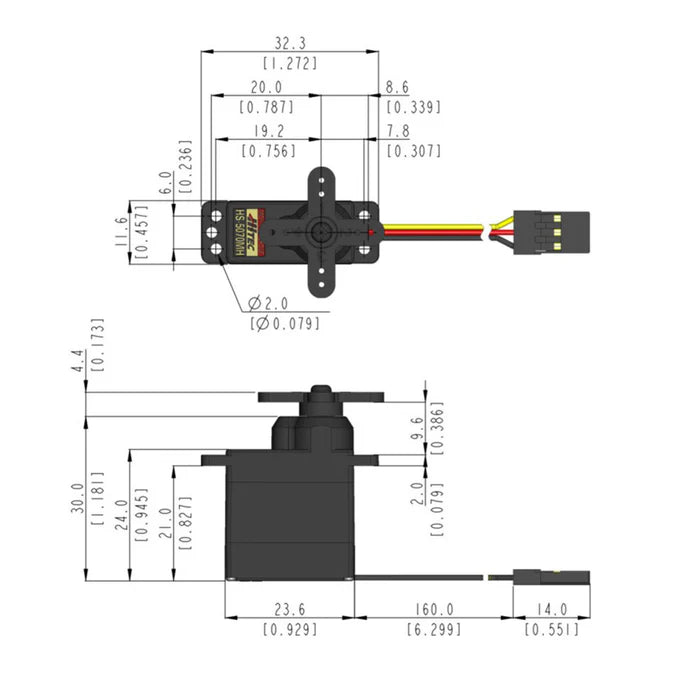

| Dimensions (Inches) |
0.92 x 0.45 x 1.14 |
| Dimensions (Metric) |
23.6 x 11.6 x 28.1 |
| Weight (Ounces) |
0.50 |
| Weight (Gram) |
14.2 |
| Circuit Type |
G1 Programable Digital |
| Motor Type |
3 Pole Metal Brush Neodymium |
| Gear Material |
Metal |
| Bearing Type |
Top Ball Bearing |
| Case Material |
Plastic |
| Dust / Water Resistance |
N / A |
| Connector Gauge (AWG) / Strand Count |
28 / 20 |
