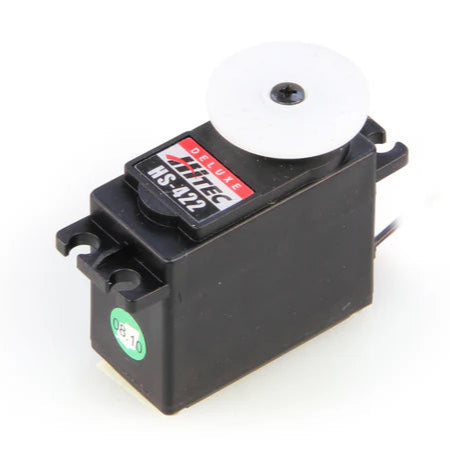

Hitec HS422 Standard Analogue Cored Servo 45.5g 4.1kg/0.16s 4.8V - 6.0V 2213240

Save £1.72
HitecSKU: 2213240
Price:
£15.53 £17.25
Stock:
In stock at supplier warehouse.  Lead time: 2-3 days

Description

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.21 ~ 0.16
Maximum Torque Range oz. / in. 46 ~ 57
Maximum Torque Range kg. / cm. 3.3 ~ 4.1
Current Draw at Idle 8 mA
No Load Operating Current Draw 150 mA
Stall Current Draw 800 mA
Dead Band Width 8 µs



Physical Specifications

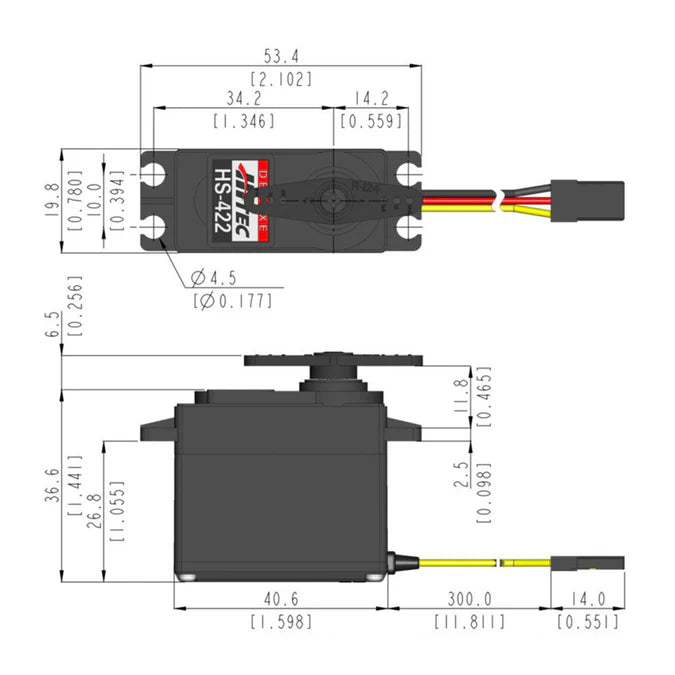

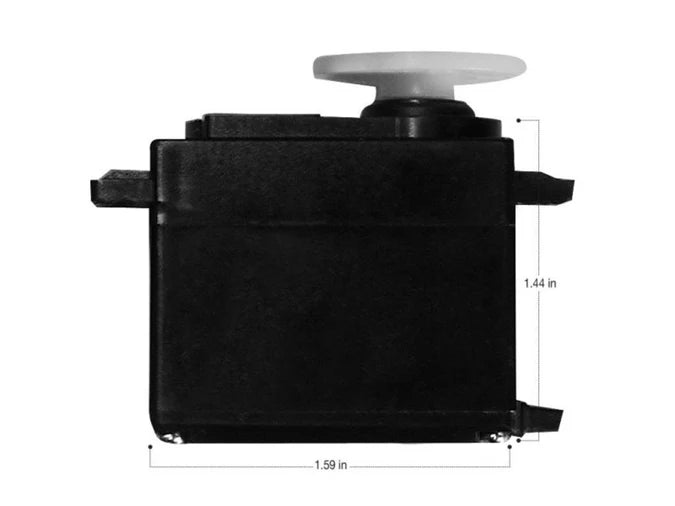

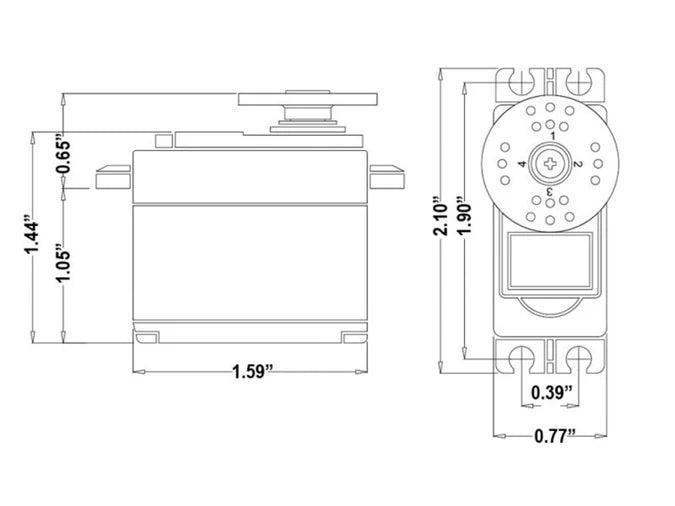

Dimensions (Inches) 1.59 x 0.77 x 1.44
Dimensions (Metric) 40.6 x 19.8 x 36.6
Weight (Ounces) 1.60
Weight (Gram) 45.5
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Nylon
Bearing Type Dual Oilite
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40
  • Series - Sport
  • Size - Standard
  • Dimensions - 40.6×19.8×36.6mm
  • Command Protocol - PWM
  • Circuit - Analogue
  • Weight - 45.5 g
  • Voltage Range - 4.8V - 6.0V
  • Max Torque (kg/cm) - 4.1
  • Max Speed (sec/60°) - 0.16
  • Spline - 24T (Ø6mm)
  • Motor - Cored
  • Gears - Nylon
  • Case - Engineering Plastic
  • Bearings - Dual Oilite
  • Circuit Detail - HT7003 Analog SMT
  • Motor Detail - 3 Pole Metal Brush Ferrite
  • Gear Detail - All POM Resin
  • Compatible Horns - Micro Horn [M-I, M-X, M-O, R-O, R-X, R-I, R-D, R-C] & Heavy Duty Horn [HD-IL, HD-IM, HD-IS, HD-LS, HD-IG, HD-LL, HD-LG, HD-OS] & Metal Horn [R-ML] & Quarter Scale Horn [Q-O, Q-I, Q-X] & Super Horn [R-XA] & Spool Drum Horn & Sail Arm Horn
