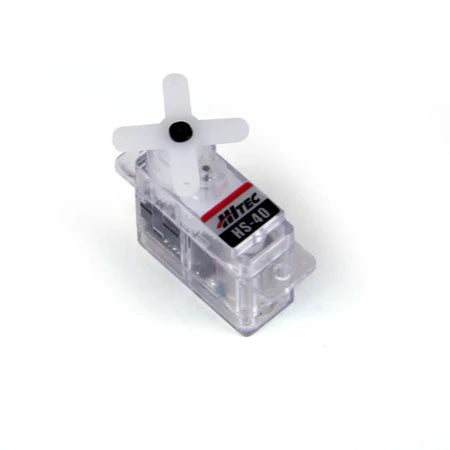

Hitec HS40 Ultra Nano Super Light Servo
Roll over image to zoom in Click on image to zoom
Hitec HS40 Ultra Nano Super Light ServoHitec HS40 Ultra Nano Super Light ServoHitec HS-40 Ultra Micro Analogue Cored Servo 4.8g 0.8kg/0.1s 4.8V - 6.0V 2212035Hitec HS-40 Ultra Micro Analogue Cored Servo 4.8g 0.8kg/0.1s 4.8V - 6.0V 2212035Hitec HS-40 Ultra Micro Analogue Cored Servo 4.8g 0.8kg/0.1s 4.8V - 6.0V 2212035Hitec HS-40 Ultra Micro Analogue Cored Servo 4.8g 0.8kg/0.1s 4.8V - 6.0V 2212035Hitec HS-40 Ultra Micro Analogue Cored Servo 4.8g 0.8kg/0.1s 4.8V - 6.0V 2212035

Hitec HS-40 Ultra Micro Analogue Cored Servo 4.8g 0.8kg/0.1s 4.8V - 6.0V 2212035

Save 18%
HitecSKU: 2212035
Price:
£12.87 £15.75
Stock:
Only 5 units left
 More payment options

Description

Hitec HS-40 Ultra Micro Analogue Cored Servo 4.8g 0.8kg/0.1s 4.8V - 6.0V 2212035

Our research department and engineers work tirelessly at developing economical servo technology that outperforms the competition and the new HS-40 nano analog servo delivers just that. With a three-pole cored motor and resilient nylon gears, this affordable servo is a dream come true for micro aircraft, sailplane and helicopter pilots. Slightly larger than the popular HS-35HD with an operating range of 4.8 to 6.0 volts, the HS-40 is a solid performer that is easy on your wallet!

Features:

  • Nylon Gears
  • Three-Pole Motor
  • 4.8 & 6.0V Operation
  • Economically Priced
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.12 ~ 0.10
Maximum Torque Range oz. / in. 8.4 ~ 10.5
Maximum Torque Range kg. / cm. 0.6 ~ 0.75
Current Draw at Idle 8 mA
No Load Operating Current Draw 60 mA
Stall Current Draw 460 mA
Dead Band Width 5 µs



Physical Specifications
Dimensions (Inches) 0.79 x 0.34 x 0.67
Dimensions (Metric) 20.0 x 8.6 x 17.0
Weight (Ounces) 0.17
Weight (Gram) 4.8
Circuit Type HT7003 Analog SMT
Motor Type Cored Metal Brush
Gear Material Nylon
Bearing Type None
Output Shaft (type / Ømm) Feather 15 / 8
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 28 / 20
  • Series - Economy
  • Size - Ultra Micro
  • Dimensions - 20×8.6×17mm
  • Command Protocol - PWM
  • Circuit - Analogue
  • Weight - 4.8 g
  • Voltage Range - 4.8V - 6.0V
  • Max Torque (kg/cm) - 0.8
  • Max Speed (sec/60°) - 0.1
  • Spline - 15T (Ø4mm)
  • Motor - Cored
  • Gears - Nylon
  • Case - Engineering Plastic
  • Bearings - None
  • Circuit Detail - HT7003 Analog SMT
  • Motor Detail - Cored Metal Brush
  • Gear Detail - Nylon
  • Compatible Horns - Feather Horn [FS-IL, FS-IS, FS-X, HD-M15-L, FS-IXL]
Data Sheet
