Hitec HS311 Standard Servo (High Impact Gears)
Roll over image to zoom in Click on image to zoom
Hitec HS311 Standard Servo (High Impact Gears)Hitec HS-311 Standard Servo (High Impact Gears)Hitec HS-311 Standard Servo (High Impact Gears)Hitec HS311 Standard Servo (High Impact Gears)Hitec HS-311 Standard Analogue Cored Servo 43g 3.5kg/0.15s 4.8V - 6.0V 2213190Hitec HS-311 Standard Analogue Cored Servo 43g 3.5kg/0.15s 4.8V - 6.0V 2213190Hitec HS311 Standard Servo (High Impact Gears)Hitec HS311 Standard Servo (High Impact Gears)Hitec HS311 Standard Servo (High Impact Gears)Hitec HS311 Standard Servo (High Impact Gears)Hitec HS311 Standard Servo (High Impact Gears)Hitec HS311 Standard Servo (High Impact Gears)Hitec HS311 Standard Servo (High Impact Gears)

Hitec HS-311 Standard Analogue Cored Servo 43g 3.5kg/0.15s 4.8V - 6.0V UnBoxed Bulk Version

Save 23%
HitecSKU: 2213200
Price:
£9.99 £12.95
Stock:
Only 1 unit left
 More payment options

Description

Hitec HS-311 Standard Analogue Cored Servo 43g 3.5kg/0.15s 4.8V - 6.0V (High Impact Gears) UnBoxed Bulk Version 2213200

Hitec's go-to economy-priced standard-sized workhorse.

The HS-311 sport servo provides the novice modeler all the performance and reliability you would expect to find in a more expensive servo. Combined with precise resin gears and SMT circuitry, the HS-311 represents a remarkable value in today's R/C market.

Features

  • Hitec's low cost standard-sized servo
  • Reliable three-pole ferrite motor
  • Durable resin gears
  • Top resin bushing
  • long life potentiometer
  • Popular selling servo
Performance Specifications:
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.19 ~ 0.15
Maximum Torque Range oz. / in. 42 ~ 49
Maximum Torque Range kg. / cm. 3.0 ~ 3.5
Current Draw at Idle 7.7 mA
No Load Operating Current Draw 180 mA
Stall Current Draw 800 mA
Dead Band Width 5 µs



Physical Specifications:

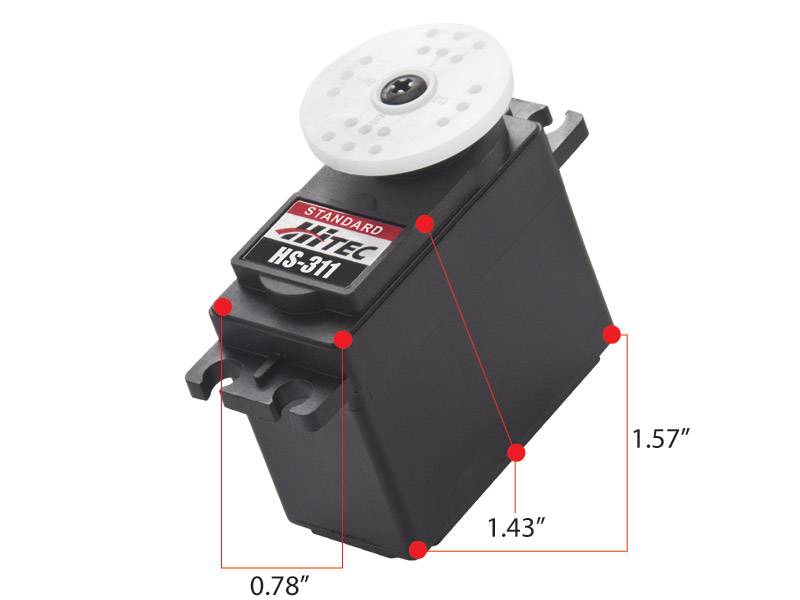

Dimensions (Inches) 1.57 x 0.78 x 1.43
Dimensions (Metric) 40.0 x 20.0 x 36.5
Weight (Ounces) 1.51
Weight (Gram) 43.0
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Nylon
Bearing Type None
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40
  • Series - Sport
  • Size - Standard
  • Dimensions - 40×20×36.5mm
  • Command Protocol - PWM
  • Circuit - Analogue
  • Weight - 34.3 g
  • Voltage Range - 4.8V - 6.0V
  • Max Torque (kg/cm) - 3.5
  • Max Speed (sec/60°) - 0.15
  • Spline -24T (Ø6mm)
  • Motor - Cored
  • Gears - Nylon
  • Case - Engineering Plastic
  • Bearings - None
  • Circuit Detail - HT7003 Analog SMT
  • Motor Detail - 3 Pole Metal Brush Ferrite
  • Gear Detail - 4x Resin
  • Compatible Horns - Micro Horn [M-I, M-X, M-O, R-O, R-X, R-I, R-D, R-C] & Heavy Duty Horn [HD-IL, HD-IM, HD-IS, HD-LS, HD-IG, HD-LL, HD-LG, HD-OS] & Metal Horn [R-ML] & Quarter Scale Horn [Q-O, Q-I, Q-X] & Super Horn [R-XA] & Spool Drum Horn & Sail Arm Horn
