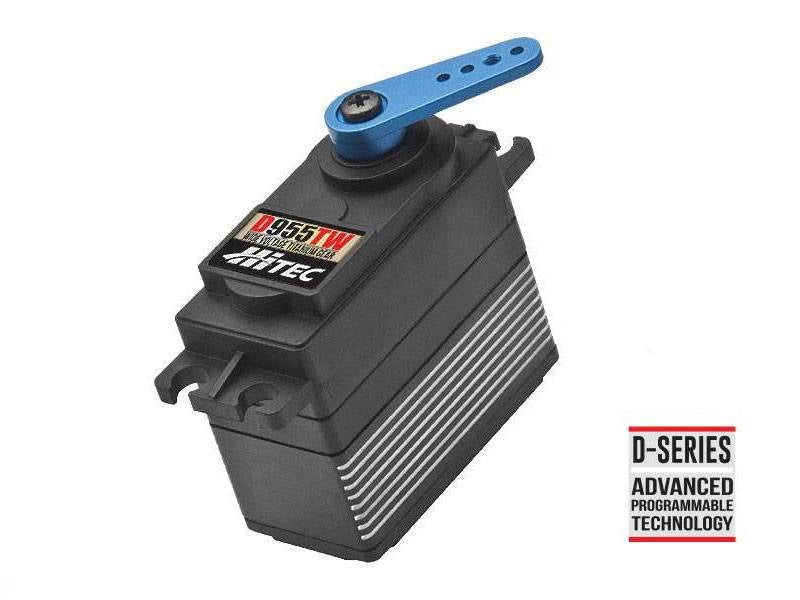

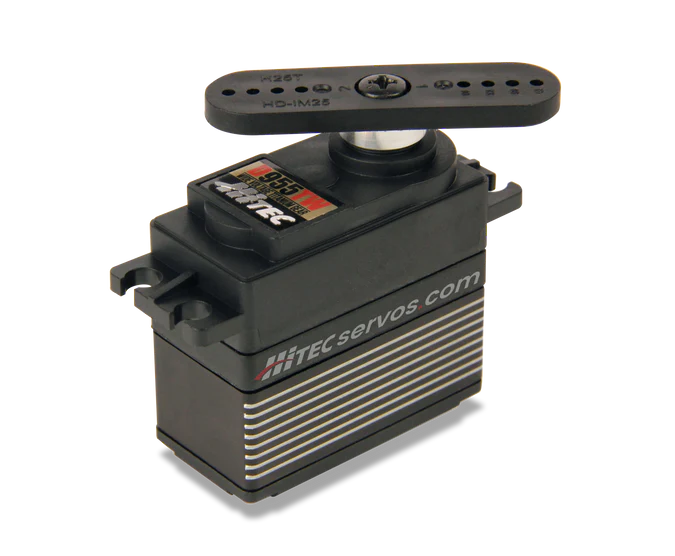

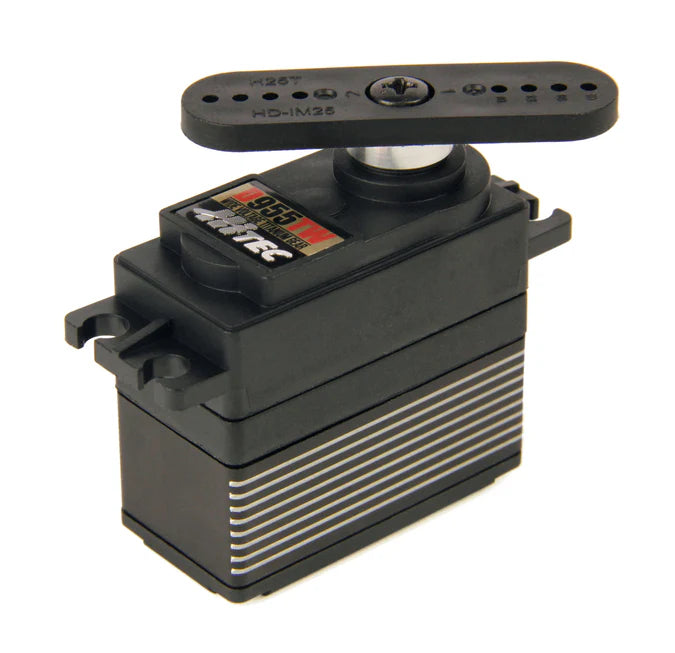

Hitec D955TW Wide Voltage Ultra Torque 2221019
Roll over image to zoom in Click on image to zoom
Hitec D955TW Wide Voltage Ultra Torque 2221019Hitec D955TW Wide Voltage Ultra Torque 2221019Hitec D955TW Wide Voltage Ultra Torque 2221019Hitec D955TW Standard Digital Coreless Servo 66g 29kg/0.12s 4.8V - 7.4V 2221019Hitec D955TW Standard Digital Coreless Servo 66g 29kg/0.12s 4.8V - 7.4V 2221019Hitec D955TW Standard Digital Coreless Servo 66g 29kg/0.12s 4.8V - 7.4V 2221019

Hitec D955TW Standard Digital Coreless Servo 66g 29kg/0.12s 4.8V - 7.4V 2221019

Save 12%
HitecSKU: 2221019
Price:
£104.99 £118.99
Stock:
Only 2 units left
 More payment options

Description

Hitec D955TW Standard Digital Coreless Servo 66g 29kg/0.12s 4.8V - 7.4V 2221019

Key Features:
Programmable high response digital amplifier with MOSFET drive
Durable steel gears with dual ball bearings
Ultra hardness gear shaft with 3 axial metal bushing
Water and Dust Resistant Case
Heat sink for motor
Servo Technical Specifications

Programmable Functions:
End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Soft Start Rate
Overload Protection
Data Save / Load
Program Reset

  • Series - D-Series
  • Size - Standard

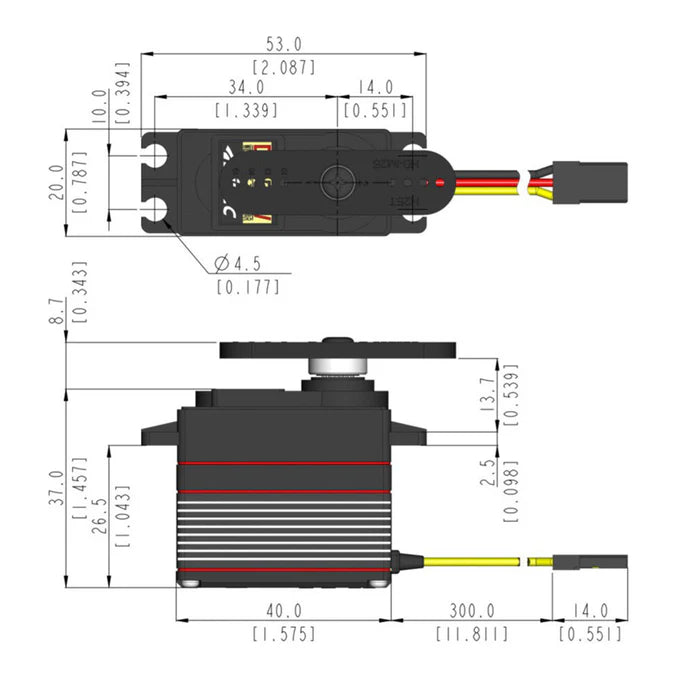

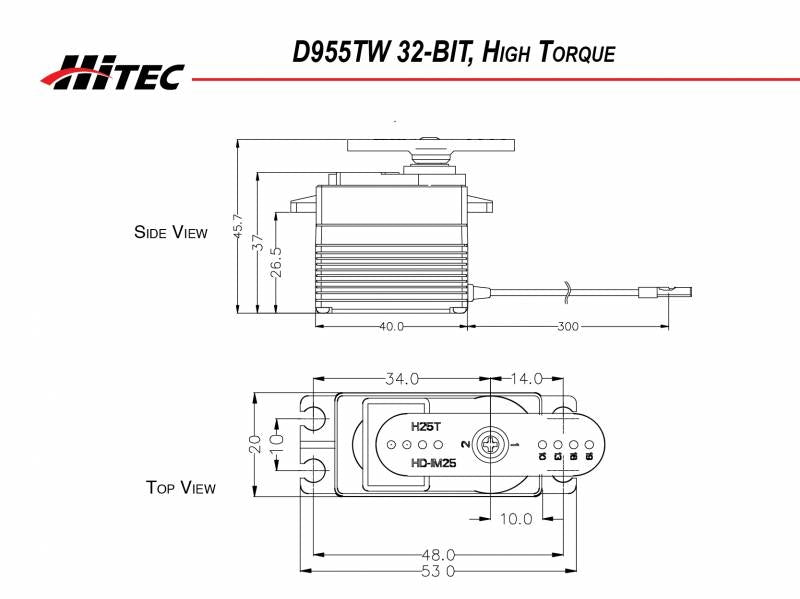

  • Dimensions - 40×20×37mm
  • Command Protocol - PWM
  • Circuit - Digital
  • Weight - 66 g
  • Voltage Range - 4.8V - 7.4V
  • Max Torque (kg/cm) - 29
  • Max Speed (sec/60°) - 0.12
  • Spline - 25T (Ø6mm)
  • Motor - Coreless
  • Gears - Metal
  • Programmable - Yes
  • Dust/Water Resistance - IP-54 Rated
  • Case - Engineering Plastic / Aluminium
  • Bearings - Dual Ball Bearing
  • Circuit Detail - 32bit Programmable Digital
  • Motor Detail - Coreless Metal Brush
  • Gear Detail - 1x Metal-Plastic, 3x Titanium Alloy
  • Compatible Horns - HT Horn [HD-IM, HD-LS, HD-OS, HD-XS, HD-IL, HD-LL, HD-IG, HD-LG] & HT Micro Horn [M-O, M-I, M-X] & HT Metal Horn [R-ML]
Data Sheet
