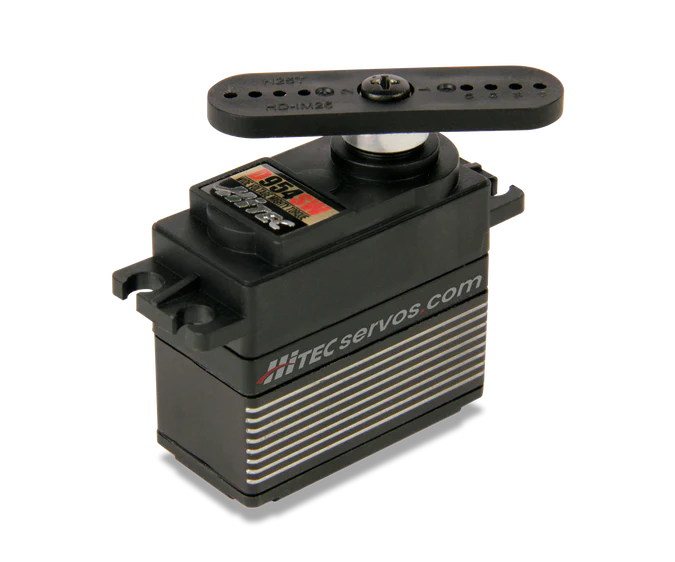

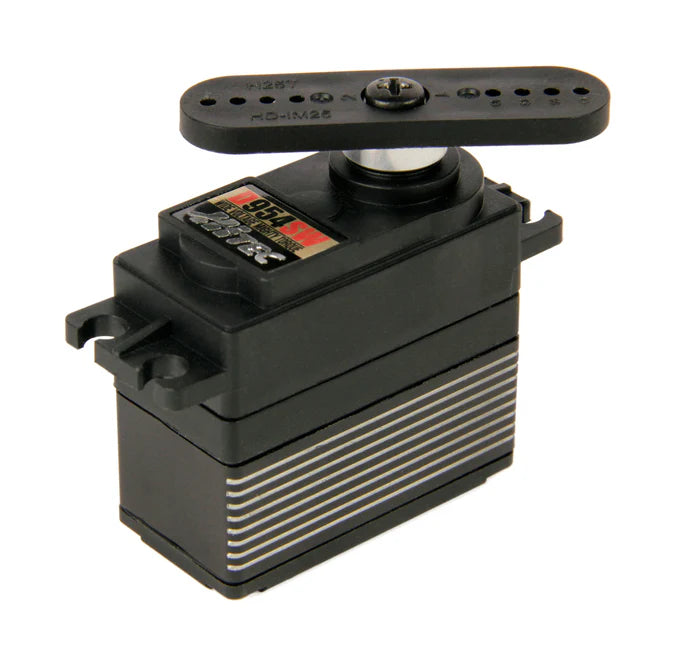

Name: Hitec D954SW Standard Digital Coreless Servo 68g 29kg/0.12s 4.8V - 7.4V 2221018
Brand: Hitec
SKU: 2221018
Price: 89.99 GBP
Availability: InStock

Hitec D954SW Wide Voltage Multi Purpose 2221018

Hitec D954SW Standard Digital Coreless Servo 68g 29kg/0.12s 4.8V - 7.4V 2221018

Roll over image to zoom in Click on image to zoom

Hitec D954SW Standard Digital Coreless Servo 68g 29kg/0.12s 4.8V - 7.4V 2221018

Hitecs tradition of ever-advancing servo technology continues with our new 32-bit D Series. Faster and more precise than ever before, these programmable servos are compatible with a wider voltage range and promise to solve all your control system needs.

Key Features:

Wide voltage, high response
Programmable 32-bit circuitry
Steel gears with H25T spline
Splashproof

Programming Functions:

End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Soft Start Rate
Overload Protection
Data Save / Load

Product Description

Model	D954SW
Name	WV Multipurpose MG BB
Product Type	D-Series

Circuit	Digital
Size	Standard
Best Speed	0.12 secs/60°
Best Torque	29 kg.cm
Voltage	4.8 Volts, 6.0 Volts, 7.4 Volts

Height	37 mm
Width	20mm
Length	40 mm
Weight	66g
Voltage Range	Wide
Speed @ 4.8V	0.19 sec/60°
Speed @ 6.0V	0.15 sec/60°
Speed @ 7.4V	0.12 sec/60°
	-
Torque @ 4.8V	18 kg.cm
Torque @ 6.0V	24 kg.cm
Torque @ 7.4V	29 kg.cm
	-
Gears	Metal gears
Gear Description	1x Metal-Plastic, 3x Steel
Spline	25T
Bearings	Dual Ball Bearing
Motor Type	undefined Motor
Programmable	Programmable
Waterproofing	Splashproof
Resolution Digital Circuit	32bit

Series - D-Series
Size - Standard

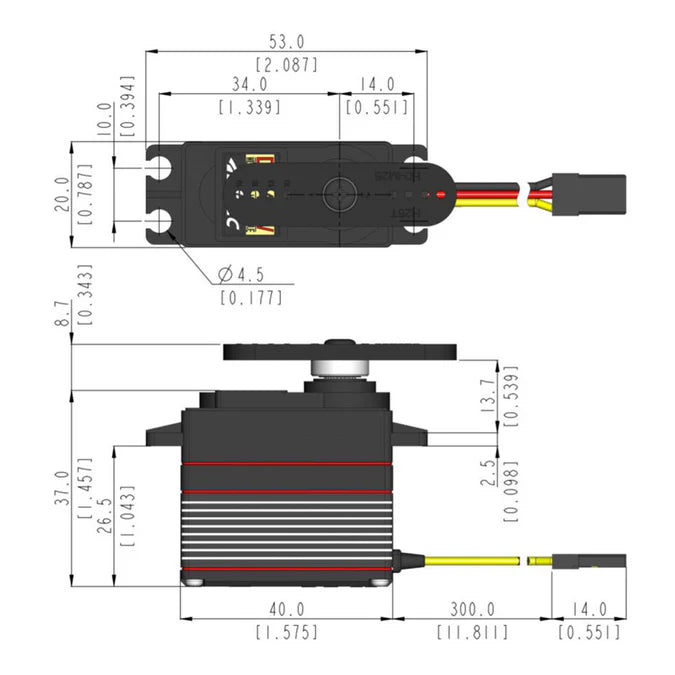

Dimensions - 40×20×37mm
Command Protocol - PWM
Circuit - Digital
Weight - 66 g
Voltage Range - 4.8V - 7.4V
Max Torque (kg/cm) - 29
Max Speed (sec/60°) - 0.12
Spline - 25T (Ø6mm)
Motor - Coreless
Gears - Metal
Programmable - Yes
Dust/Water Resistance - IP-54 Rated
Case - Engineering Plastic / Aluminium
Bearings - Dual Ball Bearing
Circuit Detail - 32bit Programmable Digital
Motor Detail - Coreless Metal Brush
Gear Detail - 1x Metal-Plastic, 3x Steel
Compatible Horns - HT Horn [HD-IM, HD-LS, HD-OS, HD-XS, HD-IL, HD-LL, HD-IG, HD-LG] & HT Micro Horn [M-O, M-I, M-X] & HT Metal Horn [R-ML]

Data Sheet
