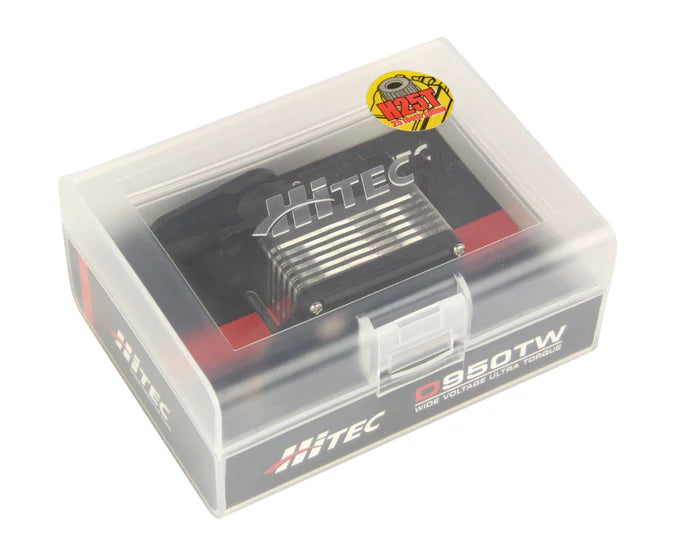

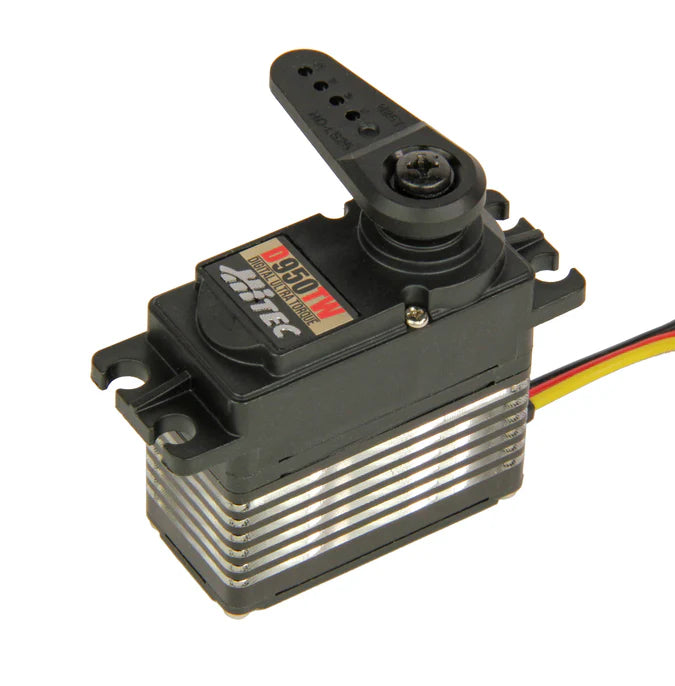

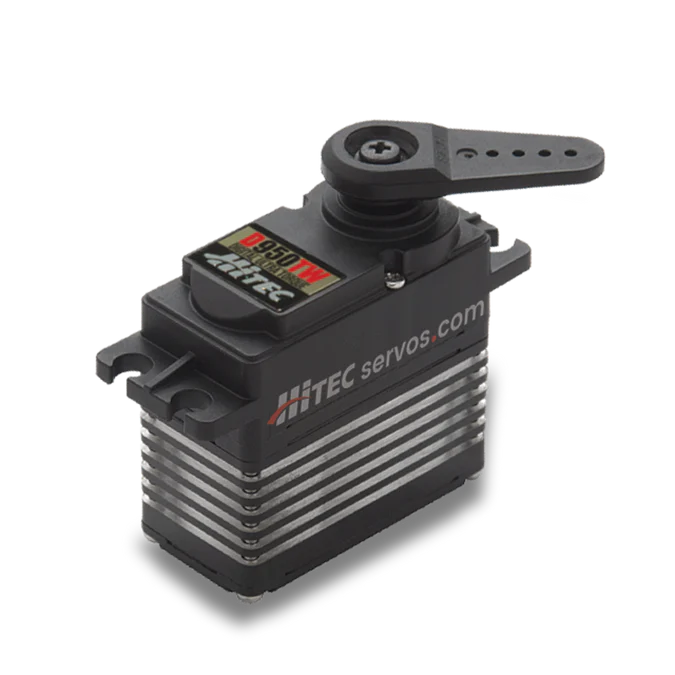

Hitec D950TW Wide Voltage Ultra Torque 35kg Servo 2221015
The titanium D-950TW is part of our D-Series servo line. All Hitec D-Series servos have been designed using our brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.
Key Features
- Programmable PWM Digital Amplifier
- 32-Bit MCU with 12-Bit ADC Circuitry
- 4096 Resolution
- 1M Cycle Long Life Potentiometer
- Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
- Dual Ball Bearing Supported Output Shaft
- 25-Tooth Output Spline
- Coreless Metal Brush Motors
- Nylon Reinforced Plastic Upper and Lower Case
- Diamond Cut Aluminum Heat Sink Center Case
-
Dust Resistant and Splash Proof Case
Programmable Functions
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Overload Protection
- Data Save / Load
- Program Reset
D950TW Servo Specifications
| Performance Specifications |
| Operating Voltage Range (Volts DC) |
4.8V ~ 6.0V ~ 7.4V |
| Speed (Second @ 60°) |
0.23 ~ 0.17 ~ 0.14 |
| Maximum Torque Range oz. / in. |
292 ~ 403 ~ 486 |
| Maximum Torque Range kg. / cm. |
21.0 ~ 29.0 ~ 35.0 |
| Current Draw at Idle |
30 mA |
| No Load Operating Current Draw |
500 mA |
| Stall Current Draw |
6,200 mA |
| Dead Band Width |
1 µs |
| Physical Specifications |

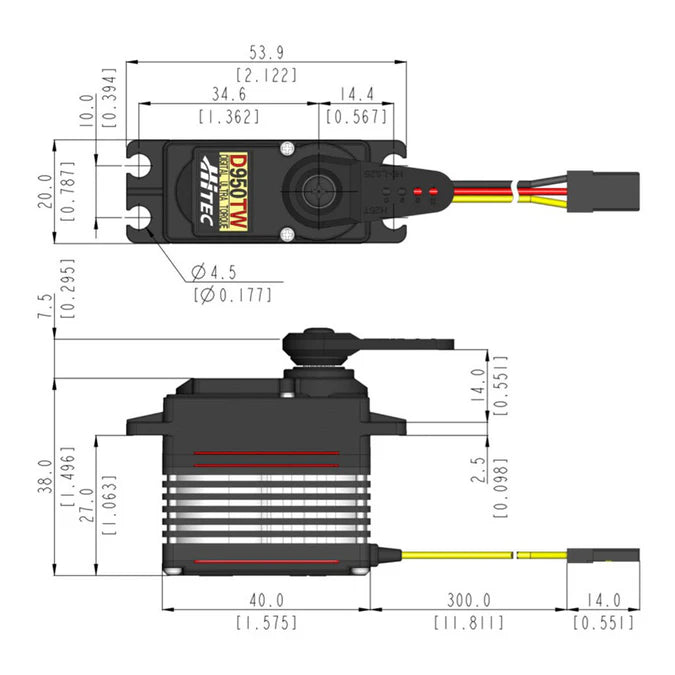

| Dimensions (Inches) |
1.57 x 0.79 x 1.50 |
| Dimensions (Metric) |
40.0 x 20.0 x 38.0 |
| Weight (Ounces) |
2.4 |
| Weight (Gram) |
68.0 |
| Circuit Type |
32bit Programable Digital |
| Motor Type |
Coreless Metal Brush |
| Gear Material |
Titanium |
| Bearing Type |
Dual Ball Bearing |
| Output Shaft (type / Ømm) |
H25T |
| Case Material |
Plastic / Aluminum |
| Dust / Water Resistance |
Splash Proof |
| Connector Gauge (AWG) / Strand Count |
20 / 80
|
