| Performance Specifications |
| Operating Voltage Range (Volts DC) |
4.8V ~ 7.4V |
| Speed (Second @ 60°) |
0.17 ~ 0.11 |
| Maximum Torque Range oz. / in. |
74 ~ 118 |
| Maximum Torque Range kg. / cm. |
5.3 ~ 8.5 |
| Current Draw at Idle |
30 mA |
| No Load Operating Current Draw |
300 mA |
| Stall Current Draw |
2,900 mA |
| Dead Band Width |
N / A |
| Physical Specifications |

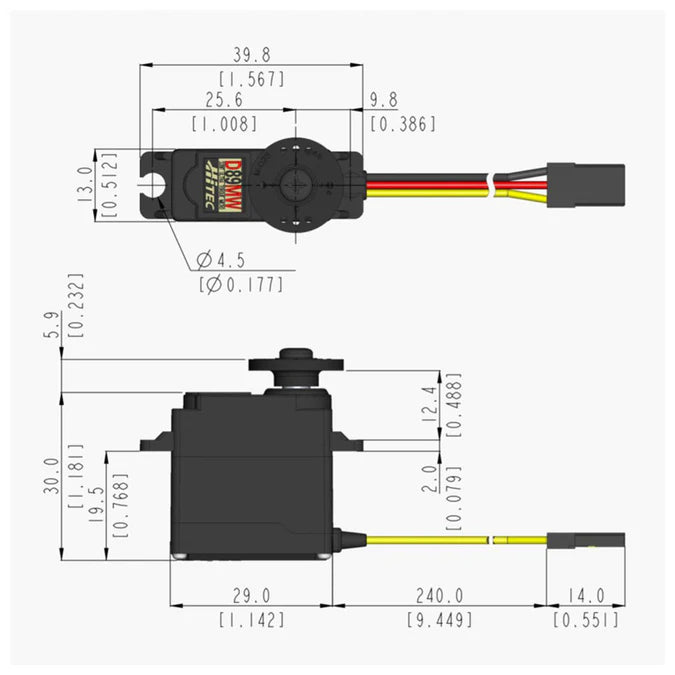

| Dimensions (Inches) |
1.14 x 0.51 x 1.18 |
| Dimensions (Metric) |
29.0 x 13.0 x 30.0 |
| Weight (Ounces) |
0.88 |
| Weight (Gram) |
25.0 |
| Circuit Type |
32bit Programmable Digital |
| Motor Type |
Coreless Metal Brush |
| Gear Material |
5 Metal Gears |
| Bearing Type |
Dual Ball Bearing |
| Output Shaft (type / Ømm) |
25 / 6 |
| Case Material |
Plastic |
