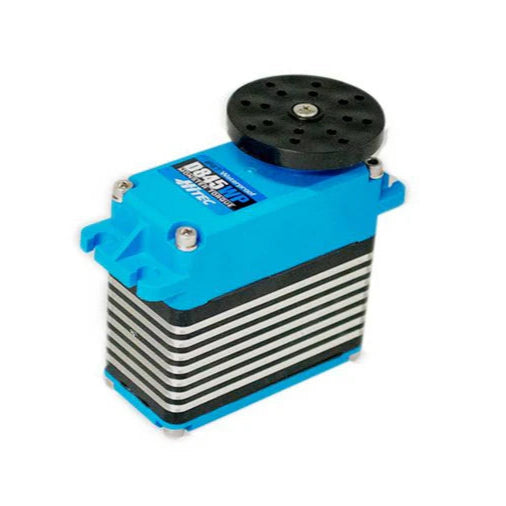

Hitec D845WP Giant Digital Cored Servo 227g 50kg/0.17s 4.8V - 7.4V 2221305
A programmable, 32-bit, monster torque, waterproof, steel gear, mega scale servo
Part of Hitec's D-Series servo range, the steel gear D-845WP features industry leading high-resolution, state-of-the-art ultra-response technology, a 32-bit MCU and a 12-bit ADC for unprecedented programmability and flexibility. The result is a significantly smoother movement and a 4.8 - 8.4 volt range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec's 15 tooth HD output spline with 3mm hex screw, each D-Series servo offers true value for money with the promise of durability, quality and a monster performance.
Features:
- Programmable high response digital amplifier with MOSFET drive.
- Durable steel gears with dual ball bearings.
- Dust resistance (IP67).
- Heat sink for motor.
- Waterproof.
- Speed at 4.8V (sec/60 ): 0.26.
- Speed at 8.4V (sec/60 ): 0.17.
- Torque at 4.8V (kg.cm): 32.5.
- Torque at 8.4V (kg.cm): 50.0.
- Resolution: 4096.

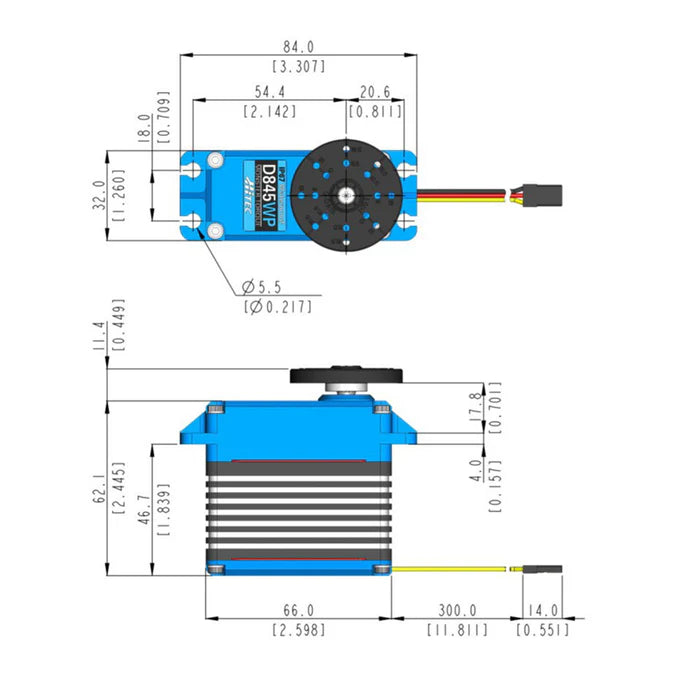

- Size (LxWxH): 84.0 x 32.0 x 73.5.
Programming Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Overload Protection
- Data Save / Load
