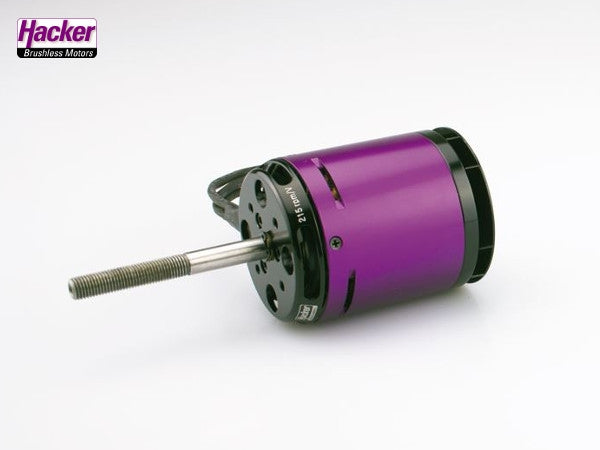

Hacker A60-20 M V4 170kv 33726631
With the new V4 version we bring our popular A60 motors to a new level.
A new designed cooling-fan for better cooling, and new larger ball bearings make the
A60 Outrunner motors more efficient and robust in daily operation.

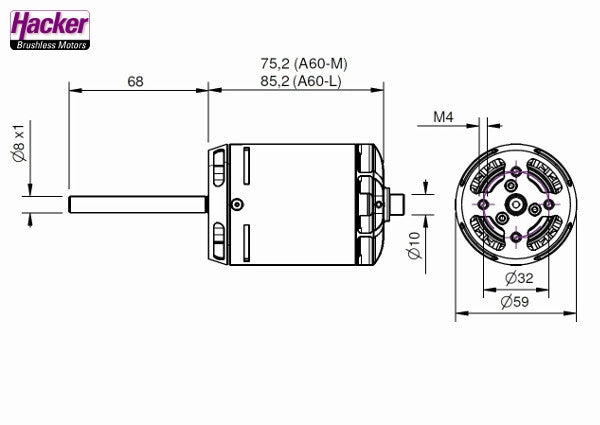

The A60-XS and A60-S series are designed only for Backmount Assembly. The A60-M and A60-L series
can built in as a front mount, or with the optional motormount and a supportbearing the motors can
also be backmounted.

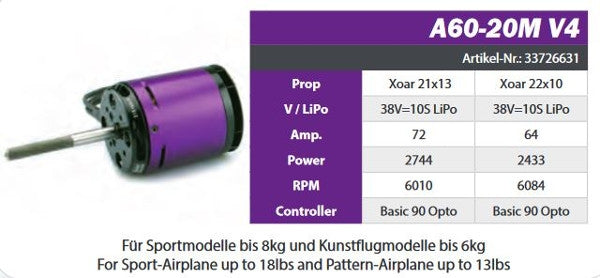

Specfications
| Powerange |
|
max. 2200W (15 sec.) |
| Idle Current @ 8,4V |
|
1,7A |
| Resistance (Ri) |
|
0,032 Ohm |
| RPM/Volt (kv) |
|
170 U/min-1 |
| Weight |
|
760g |
| Diameter |
|
59 mm |
| Length |
|
74,3 mm |
| recom. Speedcontroler |
|
77A to 90A Brushless |
| recom. Timing |
|
20° - 25° |
