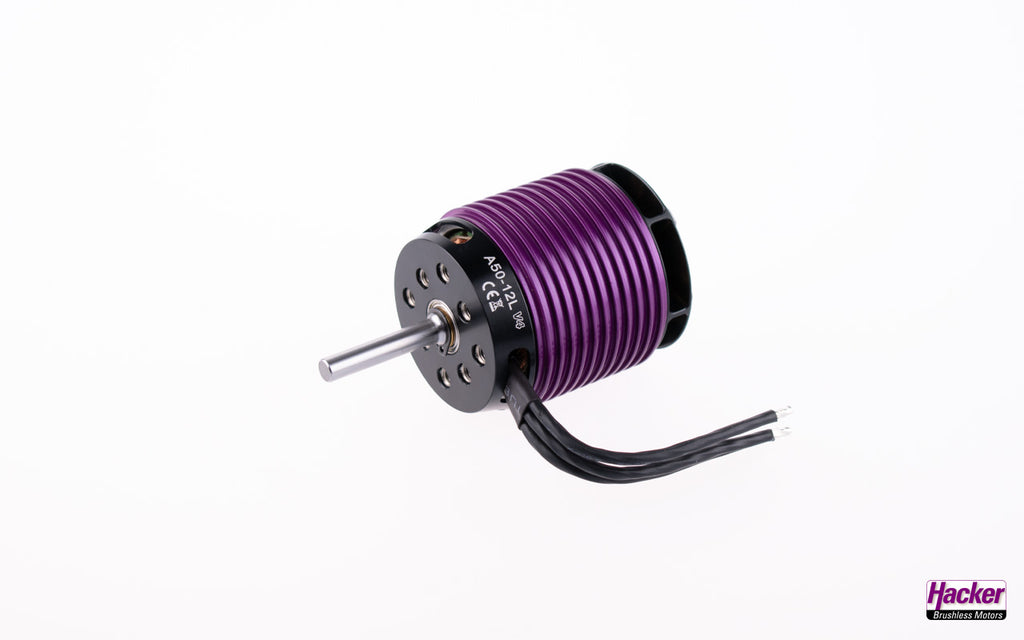

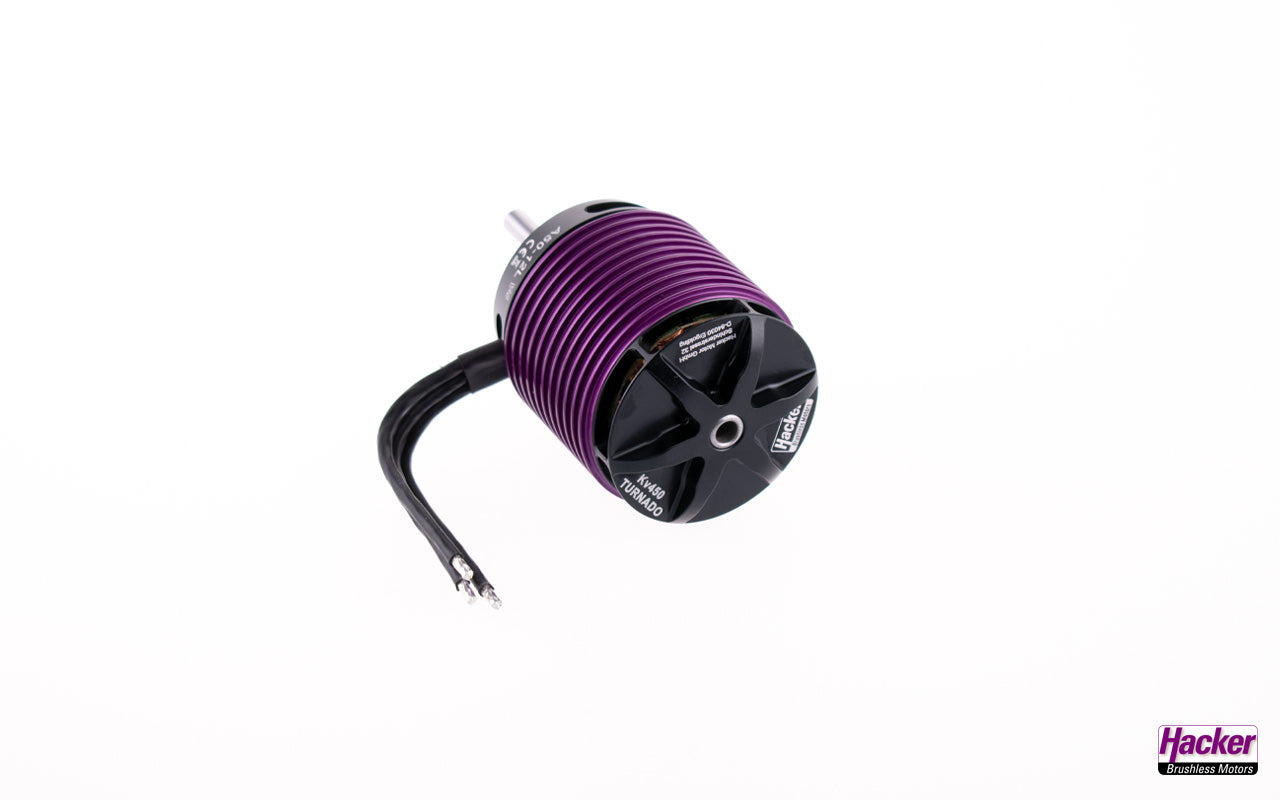

Hacker A50-12L Turnado V4 Kv450 15726744
The new Turnado V4 fits seamlessly into our program for helicopters. It convinces with significant power reserves and by lower power consumption. The Turnado V4 version offers even better performance than its predecessor.
| Helicopters |
10S to 12S |
R/C models with approx. 600 to 800 millimetres (24 to 31.5 inches) rotor blade length, 3D flight. |
| Gliders with approx. 12 kilogram (26.5lb) take-off weight. |
6S |
RFM 13x10, controller Master Mezon 120 lite for current consumption during flight of approx. 60 to 65A. |
| Gliders with approx. 16 kilogram (35lb) take-off weight. |
6S |
RFM 14x10, controller Master Mezon 120 lite for current consumption during flight of approx. 70 to 75A. |
| Antriebsvorschlag |
| Propeller |
13"-14" |
| Specifications |
| max. power range [W] (max.15 sec.) |
4000 |
| Poles |
10 |
| Turns |
12 |
| Idle current (I0) at 8.4V [A] |
1.2 |
| Internal resistance (Ri) [Ohm] |
0.019 |
| Output shaft |
6 |
| RPM max. |
25000 |
| Recommended timing [°] |
15 - 20 |
| Switching Frequency [kHz] |
8 |
| Controller recommendation [A] (depending on setup) |
80 - 130 |
| Idle speed per volt (kv) |
450rpm |
| max. current [A] |
80 |
| Dimensions and weight |
| Weight [g] |
445 |

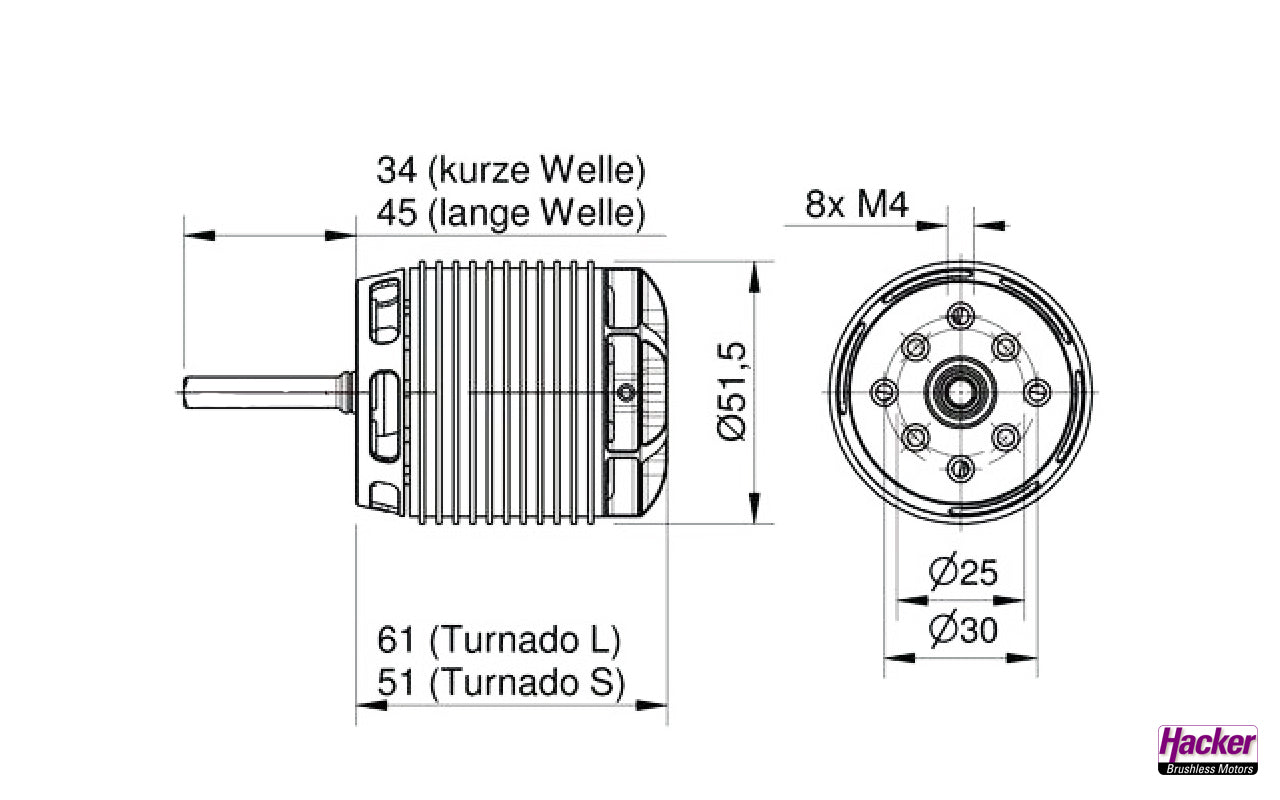

| Length [mm]/[in] |
61 |
| Outer diameter [mm]/[in] |
51.5 |
| Shaft diameter [mm]/[in] |
6 (internal: 8) |
| Delivery contents |

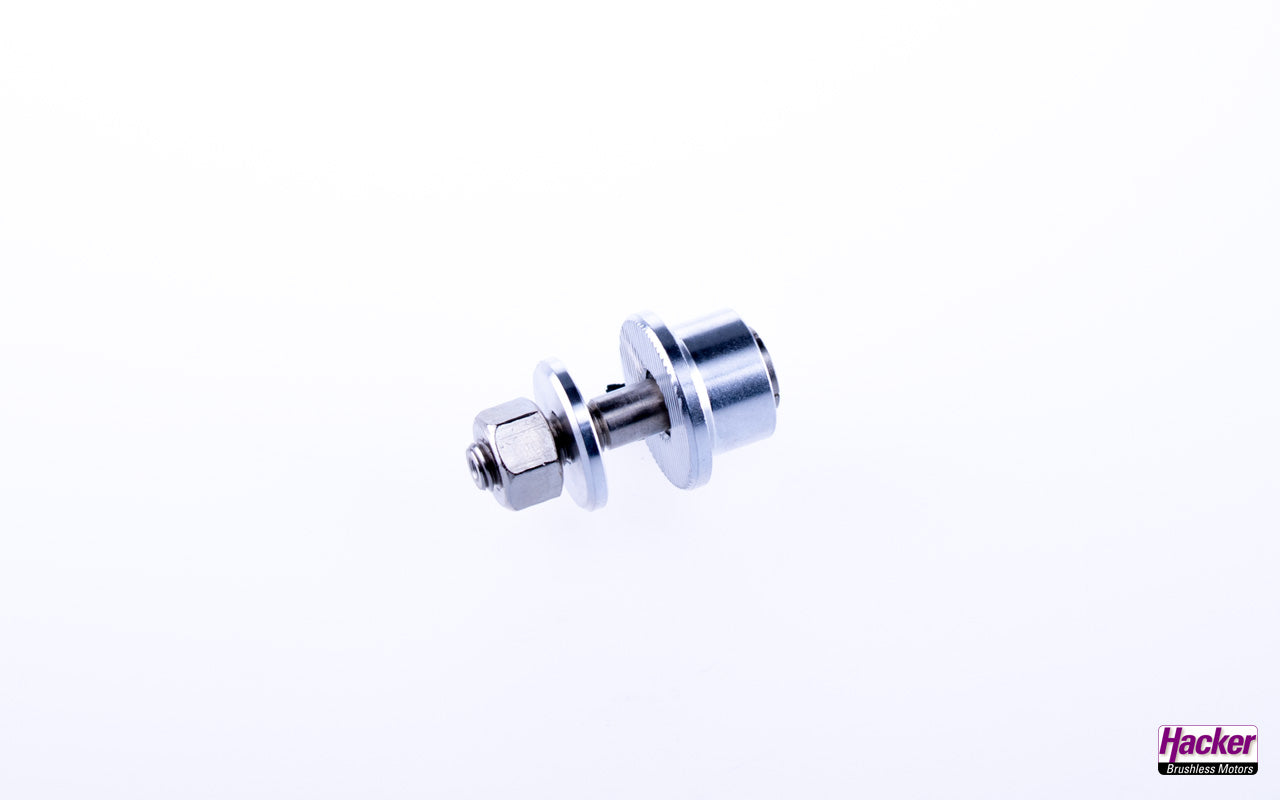

| Prop Adapter |
Ja |
| Mounting cross |
Nein |
| Gold plug mm (recommended) |
4 |
| Backmount mountable |

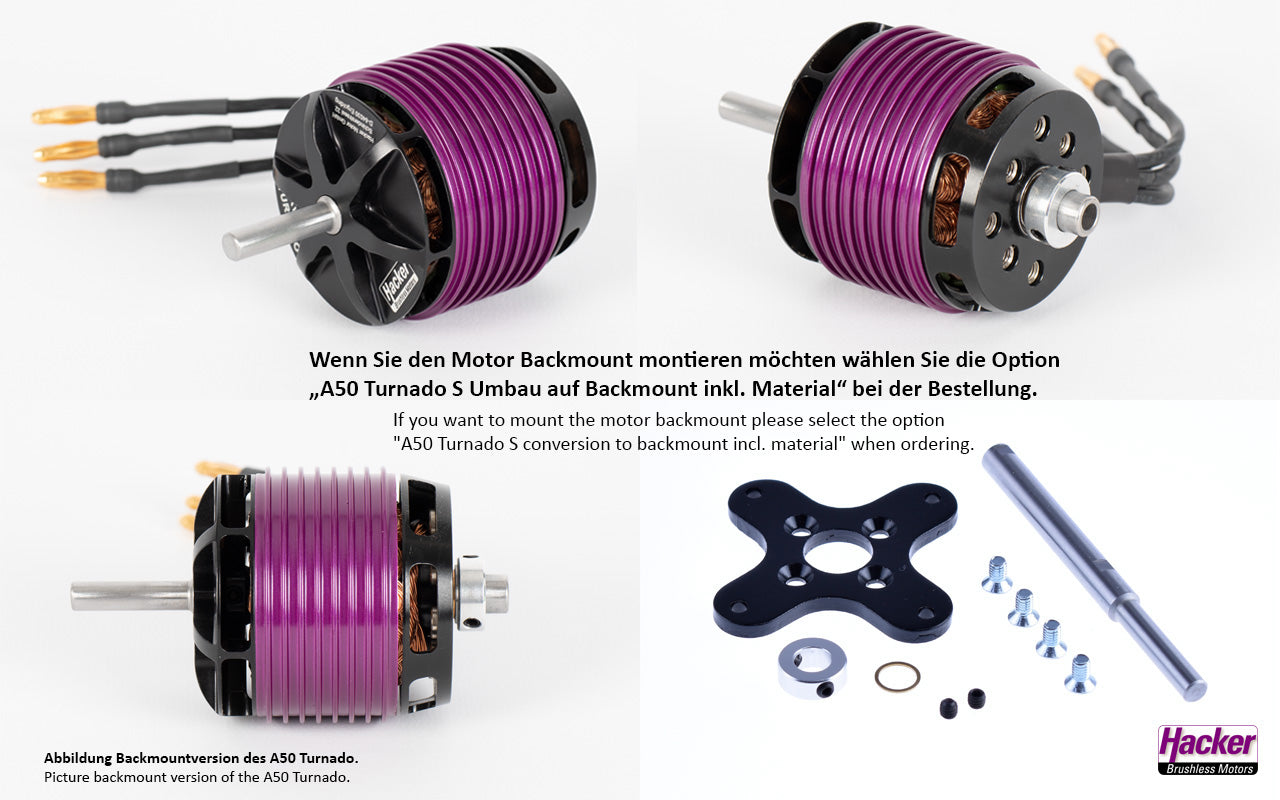

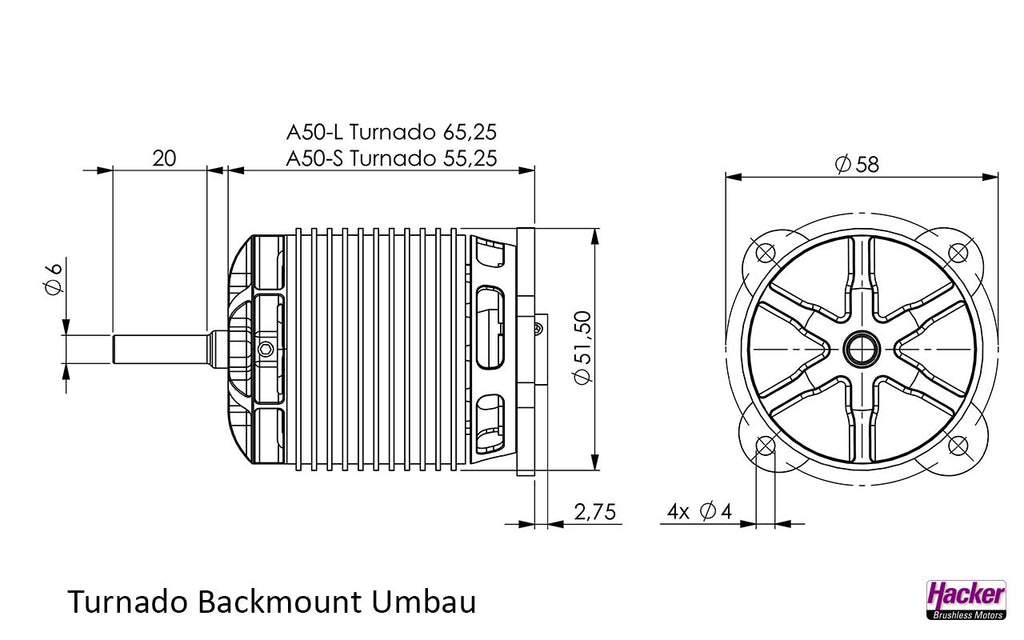

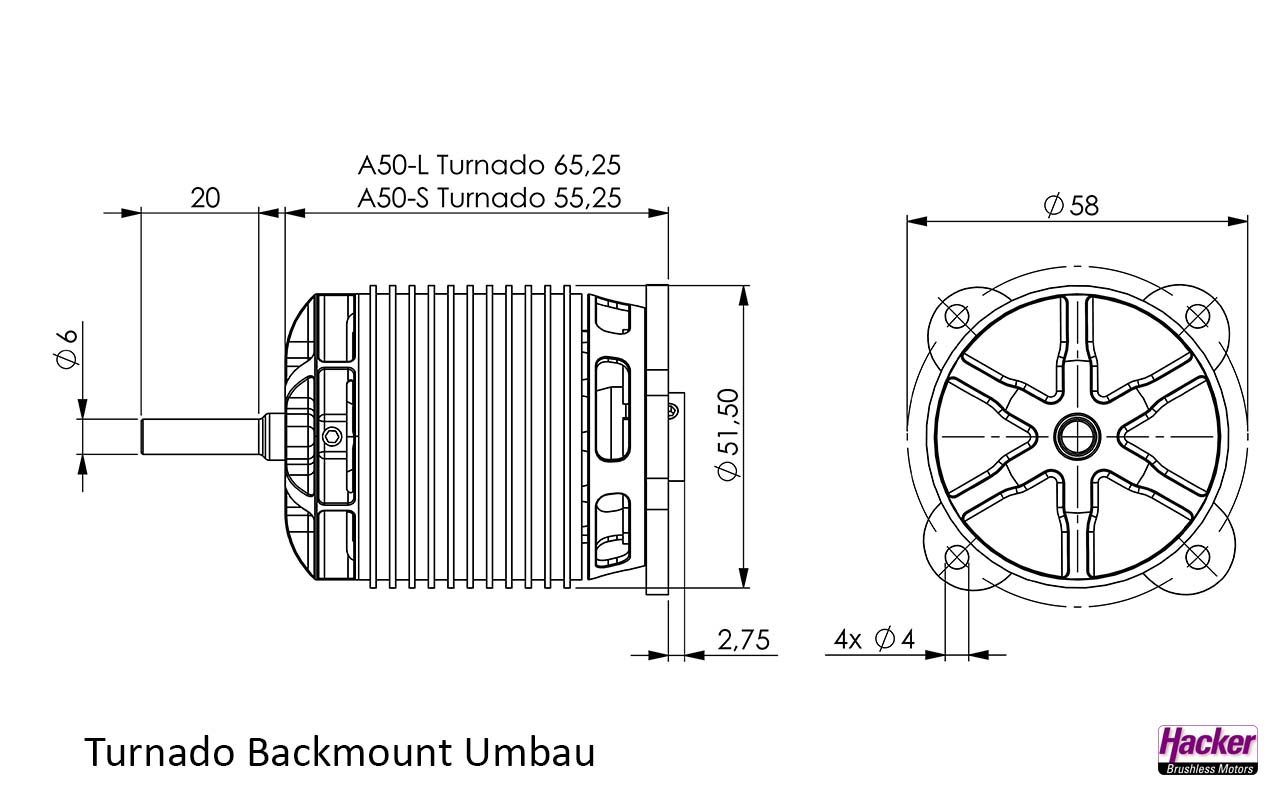

Optional |
| Front mountable |
Ja |
Scope of delivery
Hacker A50-12L Turnado V4 kv450, prop adapter 6.0/8.0mm and instructions. Different folding props can be used to match the model (see tab Accessories .)
