Hacker A50-10L Turnado V4 kv530 (with long shaft) 15726043
Outrunner electric motor A50-10L Turnado V4 kv530 (with long shaft)
Product description and features
Hacker Motor outrunner electric motor.
Application examples and configuration suggestions
Here you can find possible sample configurations. Explore the setup finder in the Hacker Motor Wiki for more details.
R/C model type Battery Miscellaneous
Helicopters 10S to 12S R/C models with approx. 600 to 800 millimeters (24 to 31.5 inches) rotor blade length, 3D flight.
Gliders with approx. 11 kilogram (24lb) take-off weight. 6S RFM 12.5x10, controller Master Mezon 120 lite for current consumption during flight of approx. 65 to 70A.
Gliders with approx. 12 kilogram (26.5lb) take-off weight. 6S RFM 13x10, controller Master Mezon 120 lite for current consumption during flight of approx. 80 to 85A.
Scope of delivery

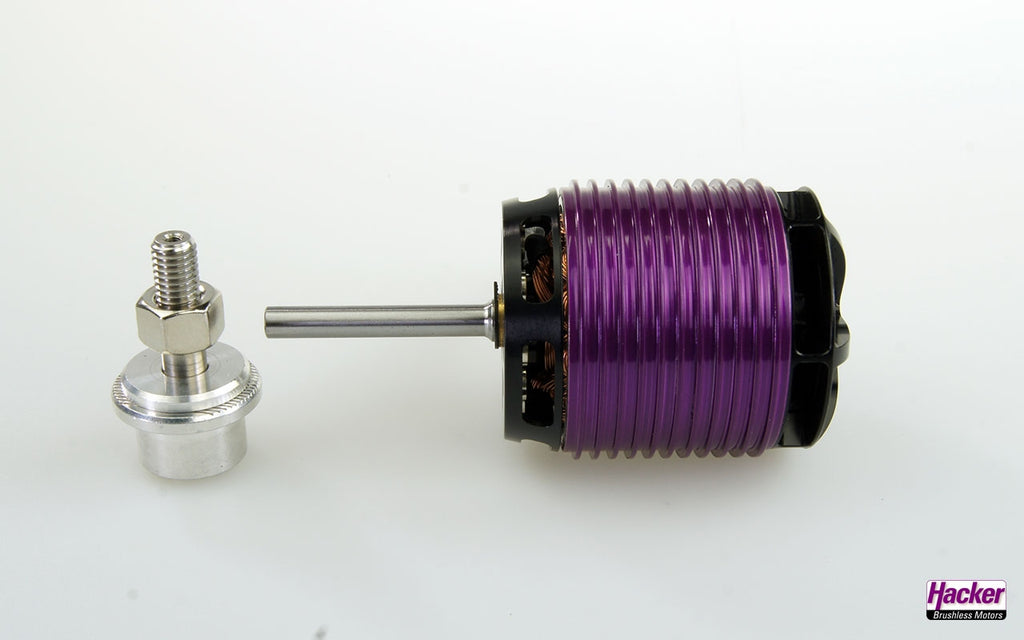

Hacker A50-10L Turnado V4 kv530 (with long shaft), prop adapter 6.0/8.0mm and instructions. Different folding props can be used to match the model (see tab Accessories .)
Specifications
Poles 10
Idle current (I0) at 8.4V [A] 1.9
Internal resistance (Ri) [Ohm] 0.015
Recommended timing [°] 15 - 20
Idle speed per volt (kv) 530rpm
Controller recommendation 80A - 130A Brushless

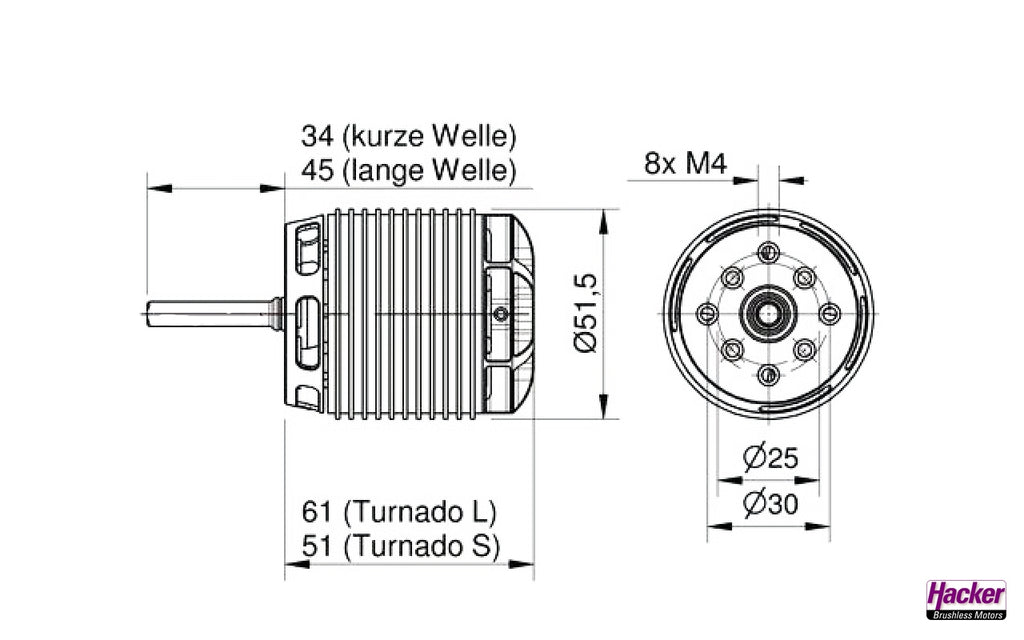

Dimensions and weight
Weight [g] 445
Length [mm]/[in] 61 / 2.4
Outer diameter [mm]/[in] 51.5 / 2.03
Shaft diameter [mm]/[in] 6 (internal: 8)
Click Here for the Manual:
