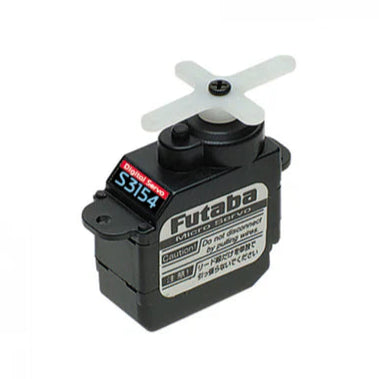

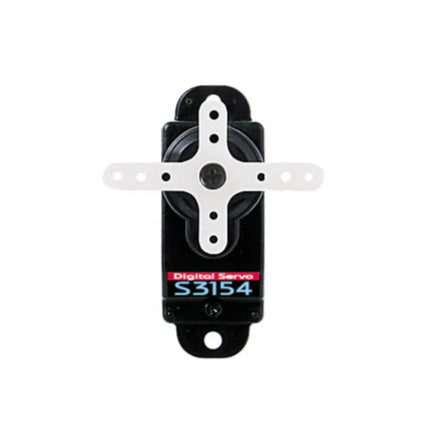

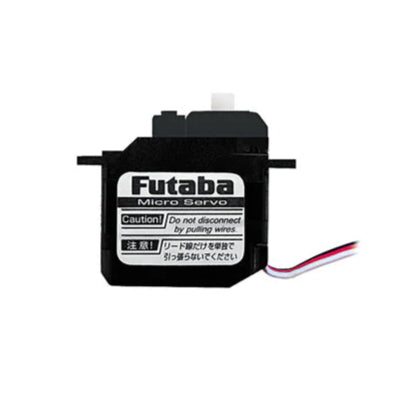

Futaba S3154 Sub-Micro Digital Servo 1.7kg 0.09s 4.8V - 6V FUT05102308-3
Super light at only 7.9 grams, this sub micro digital servo is also incredibly fast, yet packs a full 1.7Kg torque, making it perfect for small high performance electric helicopters or similar small aircraft.

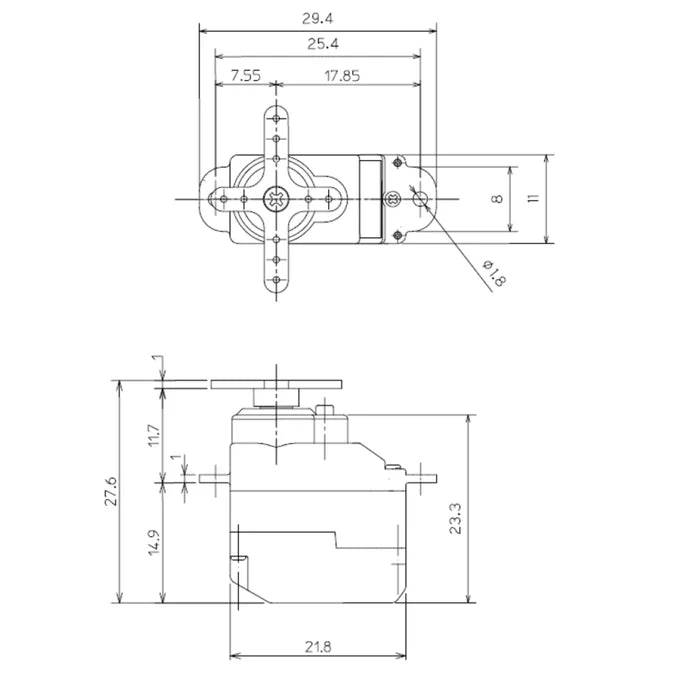

The S3154 Sub-Micro Digital Servo weighs 7.9g, measures 21.8×11.0×19.8mm, and provides 1.5-1.7kgf·cm torque with 0.09-0.10s/60° speed at 4.8-6V.
Spline: 25 Tooth (6mm Standard)
Speed: 0.10 sec/60° at 4.8V
0.09 sec/60° at 6.0V
Torque: 20.8 oz/in at 4.8V
23.5 oz/in 6.0V
Size: 0.86 x 0.43 x 0.78 in
Weight: 0.27 g
The S3154 servo is a micro servo for small electronic models. Pay special attention to the following points:
Do not use with gas powered engine models or other models that require high torque Using supply voltage higher than 6.0V or applying high loads to the servo will shorten the life. Always use the servo horn specifically designed for this micro servo. Do not use conventional servo horns. Excessive force or shock to the servo horn may damage the ultra mini precision gears inside the servo.
What's in the Box:
- 1x S3154 Sub-Micro Digital Servo
- Horns
- Mounting Hardware
